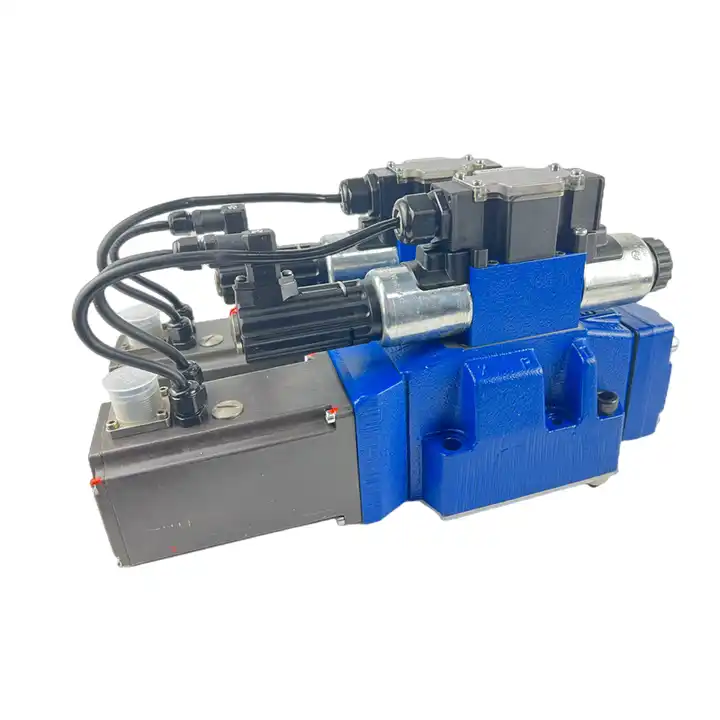

4WRTE16W8 Servo Valve
Description:
share:
4WRTE16W8 Servo Valve
| Parameter | Specification |
|---|---|
| Type | 4-way, 3-position proportional servo valve |
| Max Flow | 160 L/min |
| Max Pressure | 315 bar (4500 psi) |
| Input Voltage | ±10 VDC control |
| Hysteresis | ≤1% |
| Linearity | ≤2% |
| Response Time | <10 ms |
| Leakage | ≤30 ml/min |
| Operating Temperature | -20°C to 80°C |
| Mounting | Standard NAMUR / ISO 4401 |
| Weight | 12 kg |
| Materials | Aluminum body, steel spool, NBR seals |
