A10VG Rexroth
Product Details of A10VG Rexroth

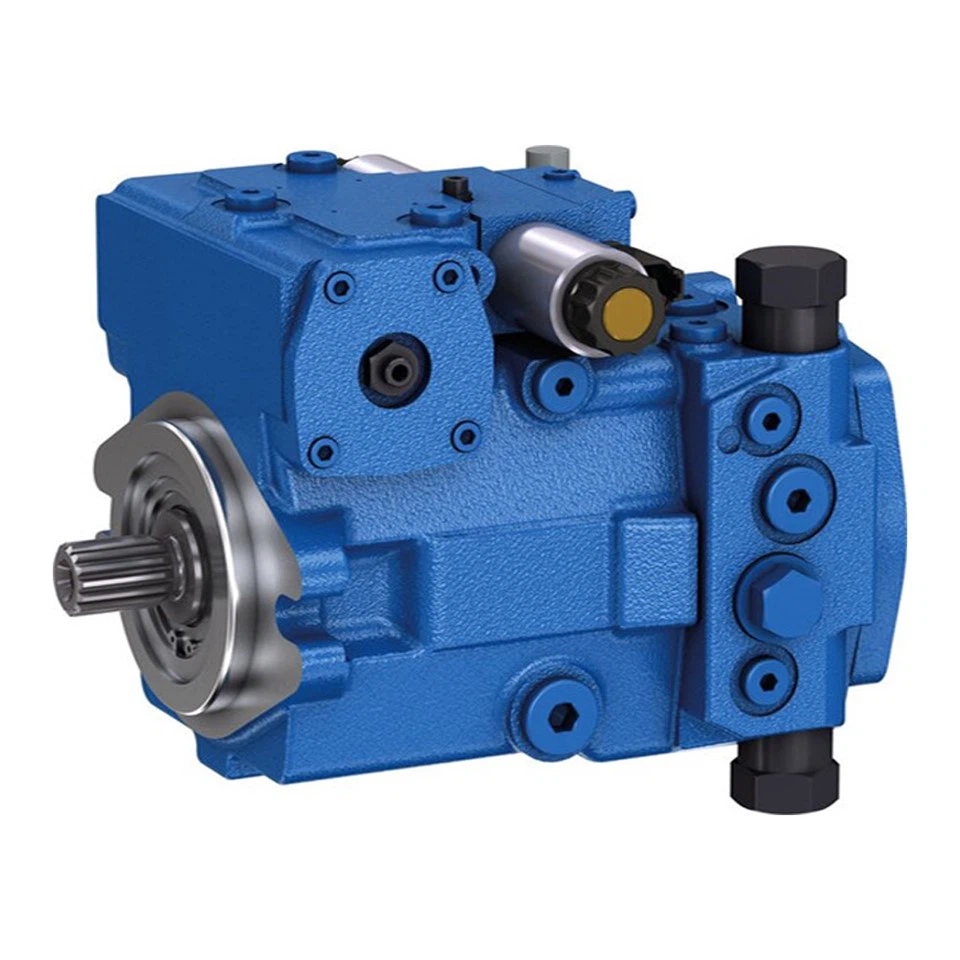

Bosch Rexroth Axial Piston Variable Pump – Model A10VG090EP1DP00/11DLNC4T11G0000AD0-S (R902271611)
1. Product overview
Models: 11 dlnc4t11g0000ad0 A10VG090EP1DP00 / -s
Part number: R902271611
Category: Variable displacement axial piston pump
Application: Mainly used in mobile machinery and industrial equipment requiring efficient closed circuit hydraulic system, which can provide efficient and reliable hydraulic drive.
2. Technical parameters
Displacement: 90 cubic centimeters per revolution
Working pressure:
Continuous: up to 400 bar
Peak value: up to 450 bar
Control mode: Electric proportional control (EP), which can achieve accurate adjustment of flow and pressure
Mounting method: SAE mounting flange
Shaft type: flat key shaft or spline shaft
Interface:
Inlet end: SAE or metric thread interface
Outlet end: high voltage connection, suitable for closed loop operation
Suitable media: mineral oil, hydraulic oil or other certified liquid
Operating temperature range: -25°C to +90°C
Weight: About 35 kg
Bosch Rexroth A10VG Axial Piston Variable Pump
The Bosch Rexroth A10VG series is a variable axial piston pump designed for closed loop hydrostatic drive systems. The superior performance of the pump enables precise drive speed and displacement control, making it ideal for situations requiring adjustable power output and efficient hydraulic operation.
Key feature
Swash plate design
The A10VG pump features an efficient swash plate design that optimizes hydraulic transmission performance and ensures efficient fluid displacement transfer and reliable operation.
This closed loop transmission can significantly improve the reliability of the system.
Infinite variable control
The output flow rate of the pump is proportional to the driving speed and displacement. By adjusting the Angle of the swash plate, smooth flow regulation can be achieved to meet the precise control needs of hydraulic operation.
Adjustable output
By adjusting the Angle of the swash plate (from 0 to maximum Angle), the output flow can be flexibly adjusted to quickly respond to a variety of work requirements.
Reversible flow direction
A10VG pumps support smooth switching of flow direction. When the swash plate passes through a neutral position, the flow direction is seamlessly reversed, which is critical for applications that require bidirectional operation.
Variety control options
The A10VG pump supports a wide range of controls and can be flexibly adapted to different control and regulation needs to ensure that the individual requirements of a specific application are met.
Built-in pressure reducing valve with boost function
The high pressure end is equipped with dual pressure reducing valves to protect the hydraulic transmission system (including the pump and motor) from overload shock.
The integrated booster pump can be used as both a supply pump and a control pump to improve system efficiency. The booster pump, combined with the built-in controller, can effectively limit the maximum impact pressure to ensure safe and reliable operation of the system under various working conditions.
Overload protection
The built-in pressure relief valve provides overload protection to prevent excessive pressure from causing damage to the pump and other components of the hydraulic system.
Application scenario
The Bosch Rexroth A10VG Axial Piston Variable Pump is a high performance hydraulic pump designed for mobile machinery and industrial equipment. With its smooth adjustment of flow and direction, the pump is widely used in the following areas:
Construction machinery (e.g. excavators, loaders)
Agricultural equipment (e.g. combine harvesters, tractors)
Other systems that require reliable and efficient hydraulic drive
Its modular design and flexible control options ensure that the pump can be tailored to different environments and needs, providing users with efficient and reliable hydraulic solutions.
Sum up
The Bosch Rexroth A10VG series pumps, with their innovative design and superior performance, are the preferred solution for closed loop hydrostatic drive systems. Whether in complex moving machinery or high-demand industrial equipment, the pumps meet the demands of demanding applications with precise control and high performance.
