Rexroth A10VO Axial Piston Variable Pump

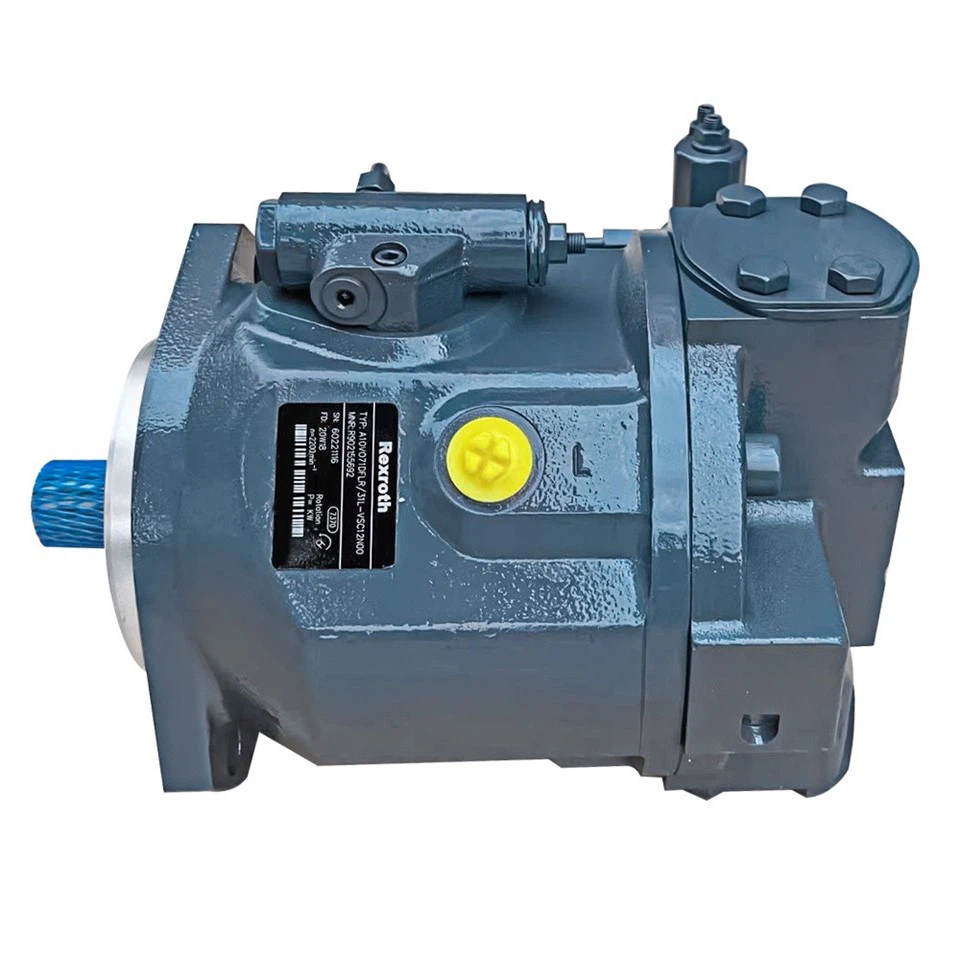

Bosch Rexroth A10VO axial piston variable pump

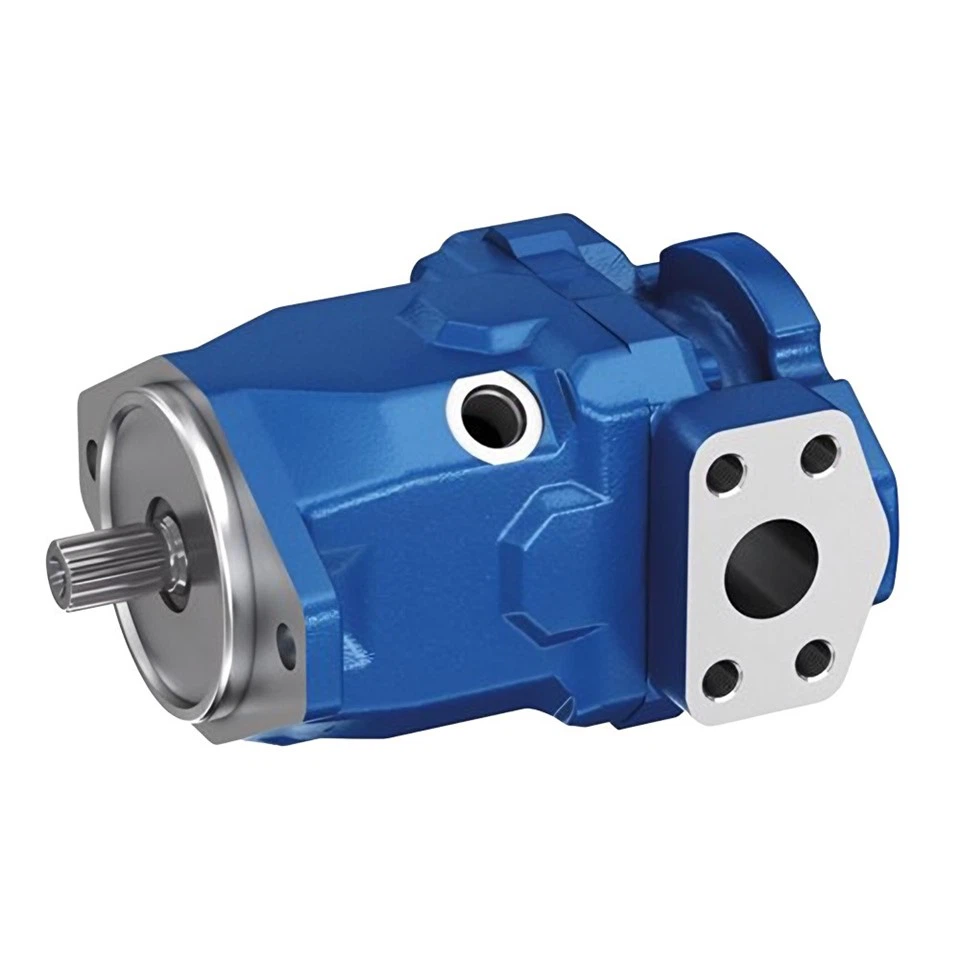

Rexroth A10VO Axial Piston Variable Pump - Image 2

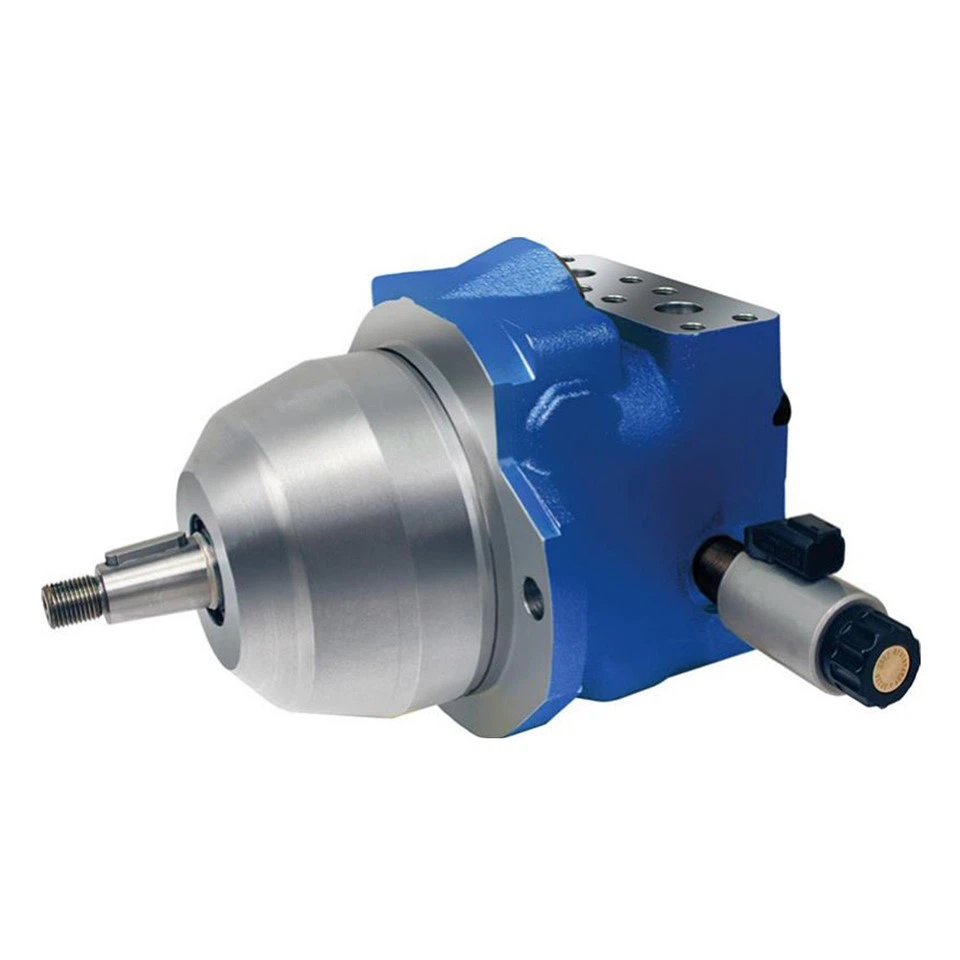

Rexroth A10VO Axial Piston Variable Pump - Image 3

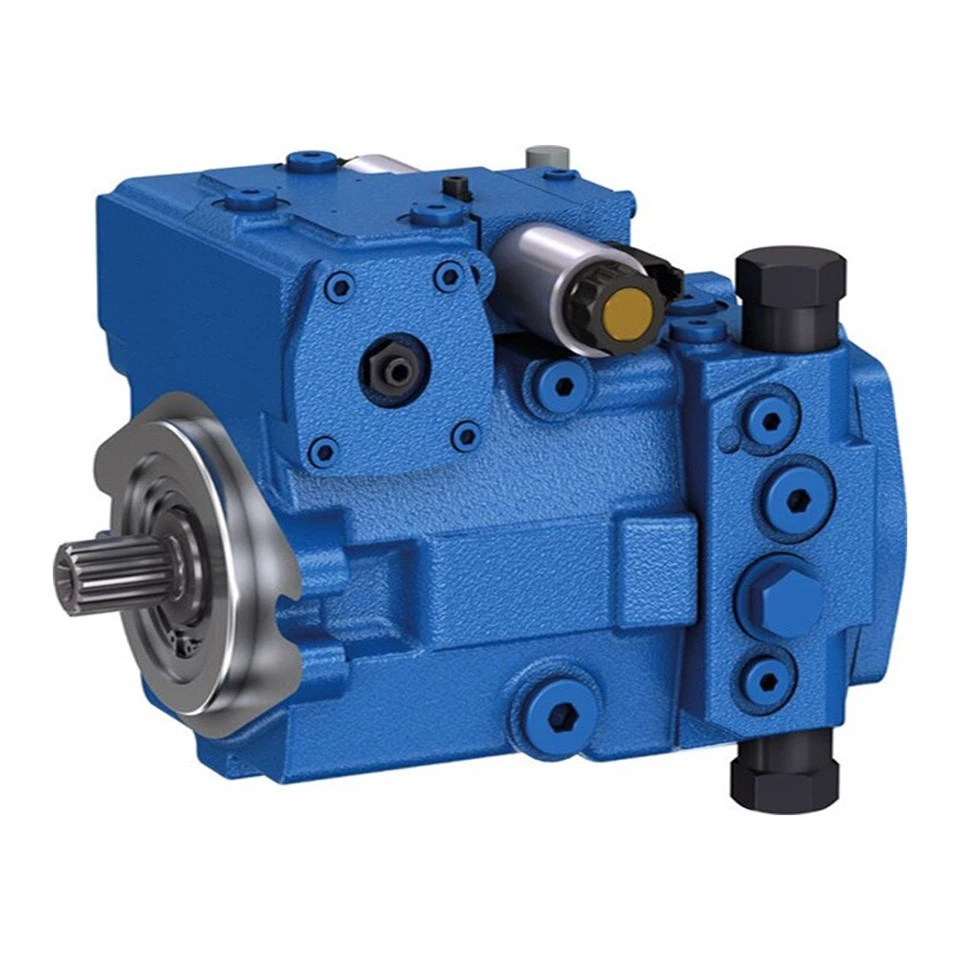

Rexroth A10VO Axial Piston Variable Pump - Image 4
Rexroth A10VO Axial Piston Variable Pump - Image 5

Description:

The A10VO is a variable displacement axial-piston pump built by Bosch Rexroth for open-circuit hydrostatic drives. Featuring a swash-plate design, the pump allows stepless adjustment of flow and pressure via variation of the swash-plate angle. Compact yet powerful, the A10VO offers high power density, reliable suction characteristics, and excellent efficiency — making it well suited for construction machinery, mobile hydraulics, agricultural equipment and industrial hydraulic systems.

share:

Advantages of the Rexroth A10VO Axial Piston Variable Pump

  • Variable displacement & precise control — The swash-plate design allows smooth, infinite adjustment of flow and pressure, enabling flexible control of hydraulic output for varying load demands.

  • High power-to-weight ratio & compact design — The A10VO delivers strong hydraulic power while occupying limited space, advantageous for mobile machines and compact systems.

  • Good suction and reliable performance — Excellent suction characteristics and robust internal design ensure stable operation, even under demanding conditions.

  • Low noise and smooth operation — Designed for reduced pressure pulsation and low noise emission, improving operator comfort and system performance.

  • Wide application range & versatility — With multiple displacement sizes, pressure and speed ratings, and a variety of control options (pressure/flow/power/electro-hydraulic control), A10VO can serve diverse hydraulic applications.

  • Durability & long service life — Solid construction, quality materials, and optimized bearing/swivel plate design support long-term reliability and maintenance-friendly performance.

Parameter Specification / Range
Pump Type Variable-displacement axial piston pump (swash-plate design)
Series / Sizes A10VO — sizes from ~10.5 cm³/rev up to 140 cm³/rev (varies by variant).
Displacement (Vg_max) ~10.5, 18, 28, 45, 60, 71, 100, 140 cm³/rev (depending on model)
Nominal Pressure 280 bar (standard medium-pressure variants)
Maximum Pressure Up to 350 bar (per many variants)
Maximum Speed (at Vg_max) Up to ~3300–3600 rpm for smaller sizes; larger displacement sizes lower, e.g., 2000–2200 rpm for high-displacement variants.
Flow Rate (at max displacement & nominal speed) Examples: for 45 cm³ → ~117 L/min; for 71 cm³ → ~156 L/min; for 100 cm³ → ~200 L/min; for 140 cm³ → ~252 L/min.
Power Output (at nominal pressure & nominal speed) Varies by size — e.g. around 55 kW for 45 cm³, 73 kW for 71 cm³, 93 kW for 100 cm³ at rated load.
Suction / Fluid Compatibility Designed for mineral or synthetic hydraulic oils; suitable viscosity range; robust suction performance.
Control Options Pressure control, flow control, power control, electro-hydraulic displacement or swivel-angle control (depending on variant) for flexible hydraulic system design.
Design Features Swash-plate axial piston design; robust shaft bearings; good power-to-weight ratio; compact size; low noise; stable, variable output.
Typical Applications Mobile hydraulics (construction machinery, agriculture), industrial hydraulic systems, open-circuit hydrostatic drives, medium-pressure power packs, etc.
