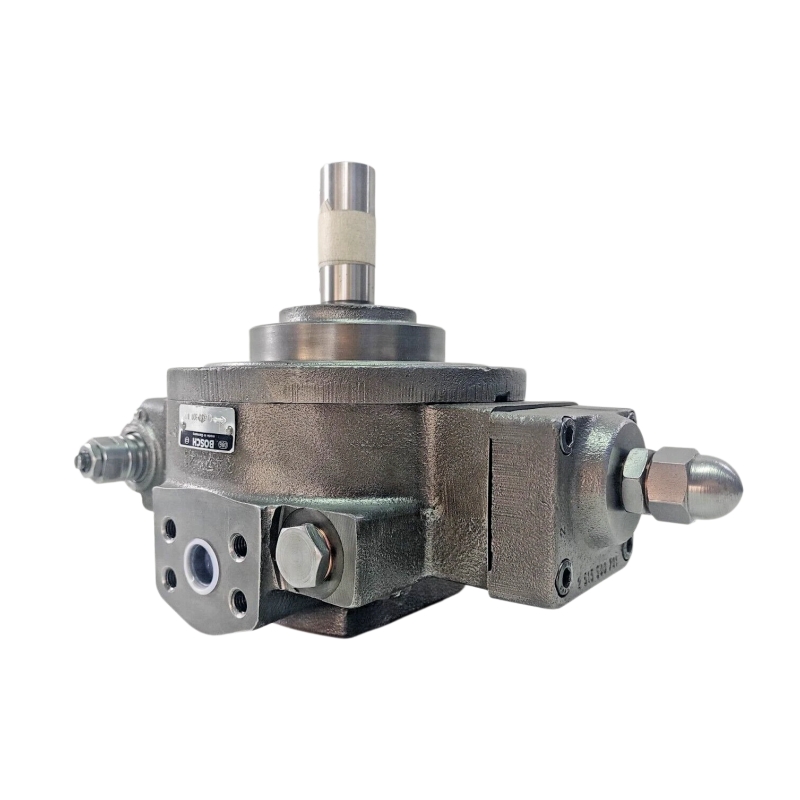

Bosch 0514 300 022 Hydraulic Radial Piston Pump

Bosch 0514 300 022 Hydraulic Radial Piston Pump

Description:

The Bosch 0514 300 022 Hydraulic Radial Piston Pump is a high-performance pump designed for demanding hydraulic applications. It offers reliable pressure delivery, excellent volumetric efficiency, and long service life, making it ideal for industrial machinery, construction equipment, and mobile hydraulic systems. With precise radial piston design, it ensures stable flow even under high pressure, reducing energy loss and improving overall system efficiency.

share:

Bosch 0514 300 022 Hydraulic Radial Piston Pump

Feature / Parameter Specification
Model Bosch 0514 300 022
Pump Type Radial Piston Pump
Maximum Pressure 250 bar (varies with configuration)
Maximum Flow Rate 70 L/min
Displacement 14 cm³/rev
Speed Range 500 – 1800 RPM
Mounting Type Flange Mount
Inlet/Outlet Ports SAE 1-1/4″ / 1″ NPT (typical)
Fluid Type Mineral Hydraulic Oil HLP/HVLP
Operating Temperature -20°C to 80°C
Weight Approx. 32 kg
Applications Industrial, Mobile Hydraulics, Construction
