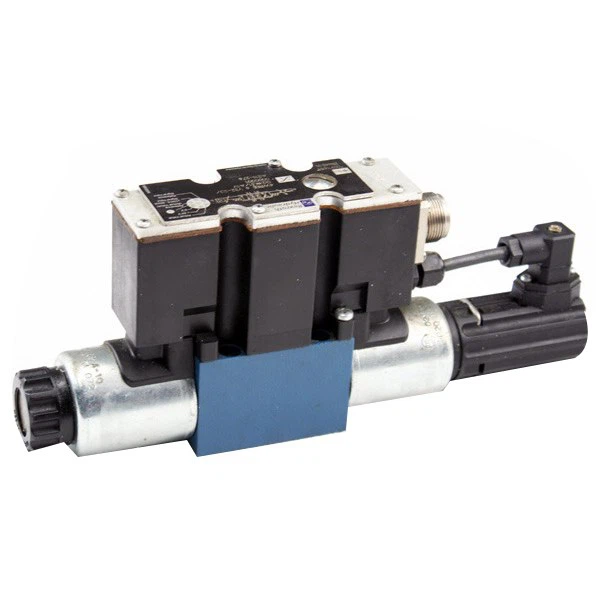

Bosch Rexroth 4WREE 10 W75-2X/G24K31/A1V Proportional Directional Valve

Bosch Rexroth 4WREE 10 proportional directional valve

Description:

The Bosch Rexroth 4WREE 10 W75-2X/G24K31/A1V is a high-performance proportional directional valve engineered for precise control of hydraulic actuators in industrial and mobile applications. It offers smooth and accurate flow distribution, enabling high dynamic performance in complex hydraulic systems. Its modular design and reliable construction make it suitable for demanding environments, from automation machinery to heavy-duty industrial hydraulics.

share:

Advantages of the Bosch Rexroth 4WREE 10 W75-2X/G24K31/A1V Proportional Directional Valve

  1. Precise Flow & Pressure Control: Provides accurate directional control for hydraulic cylinders and motors.

  2. High Dynamic Response: Ensures fast, smooth operation under varying load conditions.

  3. Durable and Reliable: Engineered with high-quality materials for long service life even in harsh environments.

  4. Modular and Flexible Installation: Compatible with standard mounting interfaces for easy integration.

  5. Energy Efficiency: Optimized to reduce pressure losses and minimize energy consumption.

  6. Wide Application Range: Suitable for automation, industrial machinery, and mobile hydraulic systems.

Parameter Specification / Details
Product Type Proportional Directional Valve
Model Number 4WREE 10 W75-2X/G24K31/A1V
Manufacturer Bosch Rexroth
Flow Rate Up to 50 l/min (depends on system pressure)
Operating Pressure Max 350 bar
Control Type Electro-hydraulic proportional
Voltage 24 V DC (standard), 12 V DC optional
Frequency Response Up to 500 Hz (depends on system load)
Hysteresis < 1% of nominal flow
Leakage Rate < 1 drop/min
Port Type / Size ISO 4401, SAE, or BSP (variant dependent)
Mounting Type Flange mounting (standard)
Temperature Range -20°C to +80°C
Viscosity Range 10 – 400 mm²/s
Electrical Connection DIN 43650 plug (standard)
Material Body: steel/aluminum; Seals: Viton/EPDM
Applications Industrial machinery, mobile hydraulics, automation, CNC systems
Certifications ISO 9001, CE certified
Maintenance Low maintenance; designed for long service life
Special Features High-precision directional control, energy-efficient, fast dynamic response
