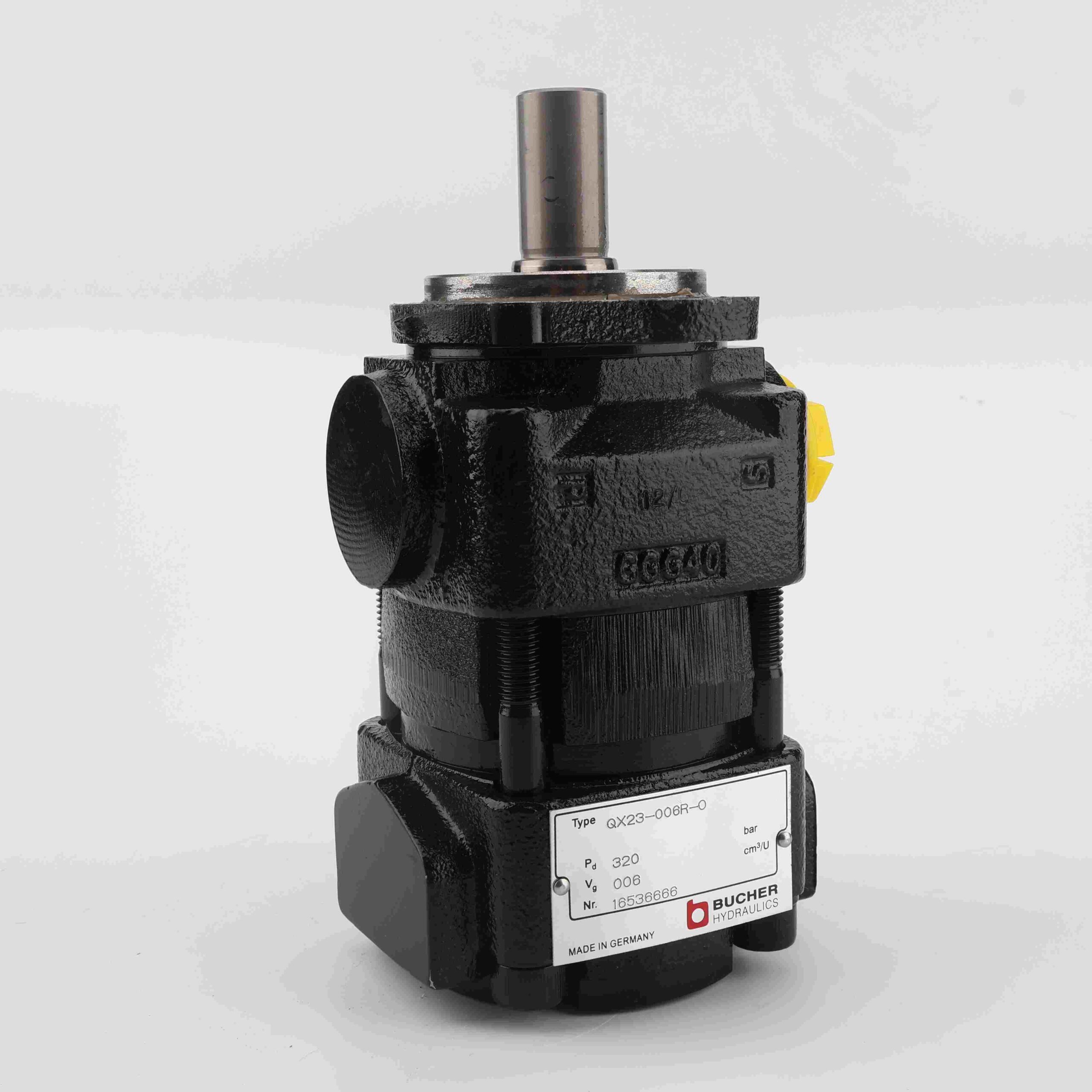

Bucher QX23 Internal Gear Pump
Key Feature of Bucher QX23 Internal Gear Pump
| Parameter | Specification |
|---|---|
| Pump Type | Internal Gear Pump |
| Model | QX23 |
| Flow Rate | 5 – 100 L/min |
| Maximum Pressure | 250 bar |
| Displacement | 2.3 – 23 cc/rev (depending on variant) |
| Maximum Speed | 3000 rpm |
| Viscosity Range | 10 – 500 mm²/s |
| Operating Temperature | -20°C to 80°C |
| Mounting | Flange or foot-mounted options |
| Inlet Pressure | Up to 10 bar |
| Shaft Options | Keyed or splined |
| Noise Level | Low noise design |
| Material | High-strength steel, hardened gears |
| Weight | Approx. 12 – 18 kg (depending on configuration) |
| Seal Options | NBR, FKM |
