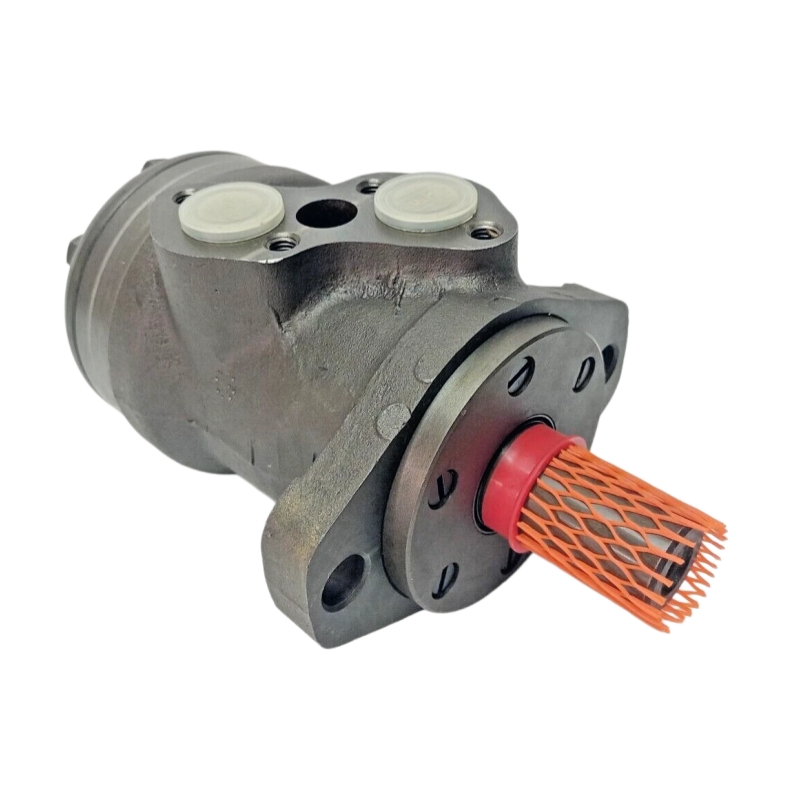

Danfoss OMR-100 Hydraulic Motor

Danfoss OMR-100 Hydraulic Motor

Description:

The Danfoss OMR-100 Hydraulic Motor is a compact and highly efficient orbital motor designed for medium-duty industrial and mobile applications. Known for its durability, smooth performance, and high torque output at low speeds, this motor is widely used in agricultural machinery, construction equipment, and material handling systems. Its robust design ensures long service life even under demanding working conditions.

share:

Danfoss OMR-100 Hydraulic Motor

Parameter Specification
Model OMR-100
Manufacturer Danfoss
Motor Type Orbital Hydraulic Motor
Displacement 100 cm³/rev
Max Continuous Pressure 140 bar
Max Intermittent Pressure 175 bar
Peak Pressure 200 bar
Max Continuous Speed 475 rpm
Max Intermittent Speed 600 rpm
Max Torque (Continuous) 190 Nm
Max Torque (Intermittent) 240 Nm
Max Flow 50 L/min
Direction of Rotation Bidirectional
Shaft Type Cylindrical / Splined (optional)
Mounting Type Standard flange
Weight Approx. 5.5 kg
Application Agriculture, construction, conveyors
