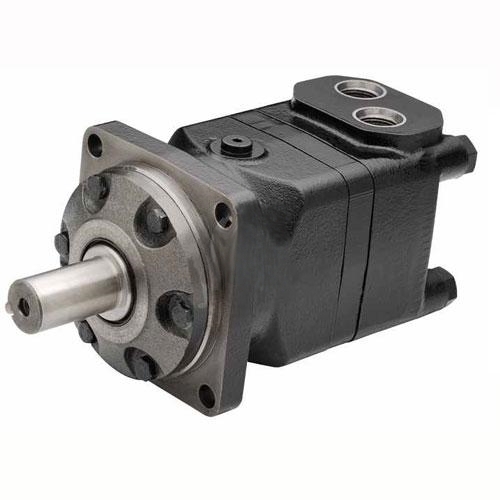

Danfoss OMT Series Motors

Danfoss OMT Series Motors

Description:

The Danfoss OMT Series hydraulic motors are high-performance orbital motors designed for demanding industrial and mobile applications. Known for their durability, high torque output, and smooth low-speed operation, OMT motors are widely used in heavy-duty machinery such as construction equipment, agricultural machines, and material handling systems. Their robust design ensures long service life, high efficiency, and reliable operation even under extreme working conditions.

share:

Danfoss OMT Series Motors

Parameter Specification
Motor Type Orbital Hydraulic Motor
Series OMT Series
Displacement Range 160 – 800 cm³/rev
Max Continuous Pressure Up to 200 bar
Max Intermittent Pressure Up to 250 bar
Max Torque (Continuous) Up to 1,200 Nm
Max Torque (Intermittent) Up to 1,500 Nm
Speed Range 10 – 600 rpm
Flow Range 20 – 120 L/min
Shaft Options Tapered, Splined, Cylindrical
Mounting Type Flange / Wheel Mount
Port Type BSP, SAE
Efficiency High volumetric & mechanical efficiency
Direction of Rotation Reversible
Operating Temperature Range -20°C to +80°C
Application Construction, Agriculture, Industry
