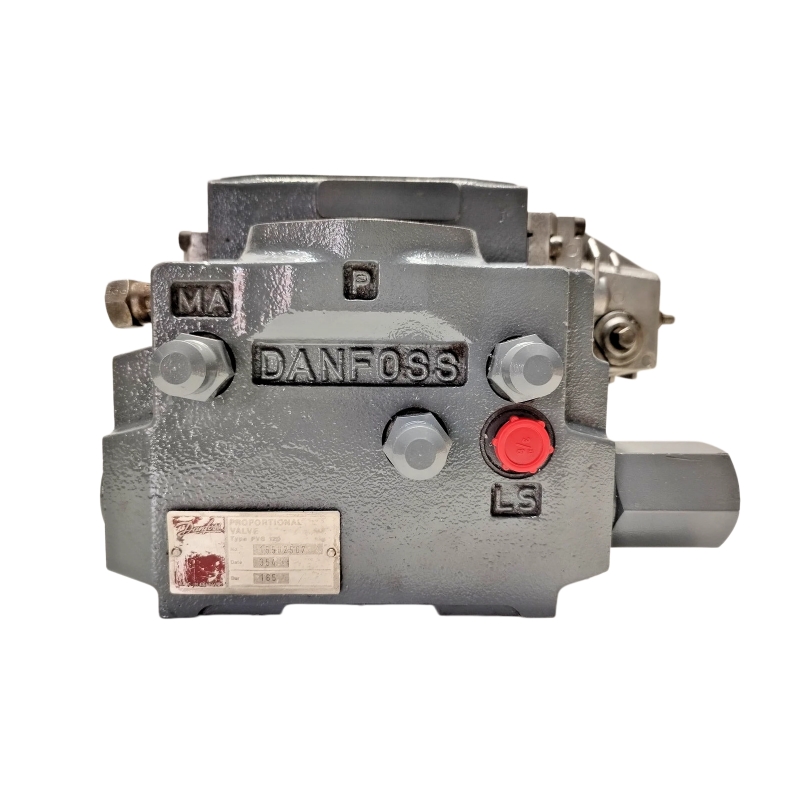

Danfoss Pvg 120 Proportional Valve
Description:
share:
Danfoss Pvg 120 Proportional Valve
| Parameter | Specification |
|---|---|
| Product Name | Danfoss PVG 120 Proportional Valve |
| Valve Type | Load-sensing proportional directional control valve |
| Structure | Modular valve group (PVP, PVB, PVT modules) |
| Rated Flow Range | Up to 180 L/min per section |
| Maximum Pressure | Up to 350–415 bar (depending on configuration) |
| Control Type | Electro-hydraulic / Hydraulic / Mechanical |
| Actuation Options | PVE (electrical), PVH (hydraulic), PVM (manual) |
| Flow Control | Load-independent flow control |
| System Type | Open-center / Closed-center compatible |
| Port Type | SAE flange / UN O-ring / metric |
| Number of Sections | Up to 8 working sections |
| Fluid Compatibility | Mineral oil, biodegradable fluids |
| Temperature Range | Depends on hydraulic fluid (typically -20°C to +80°C) |
| Mounting Type | Modular stack assembly |
| Applications | Construction, agriculture, marine, material handling |
