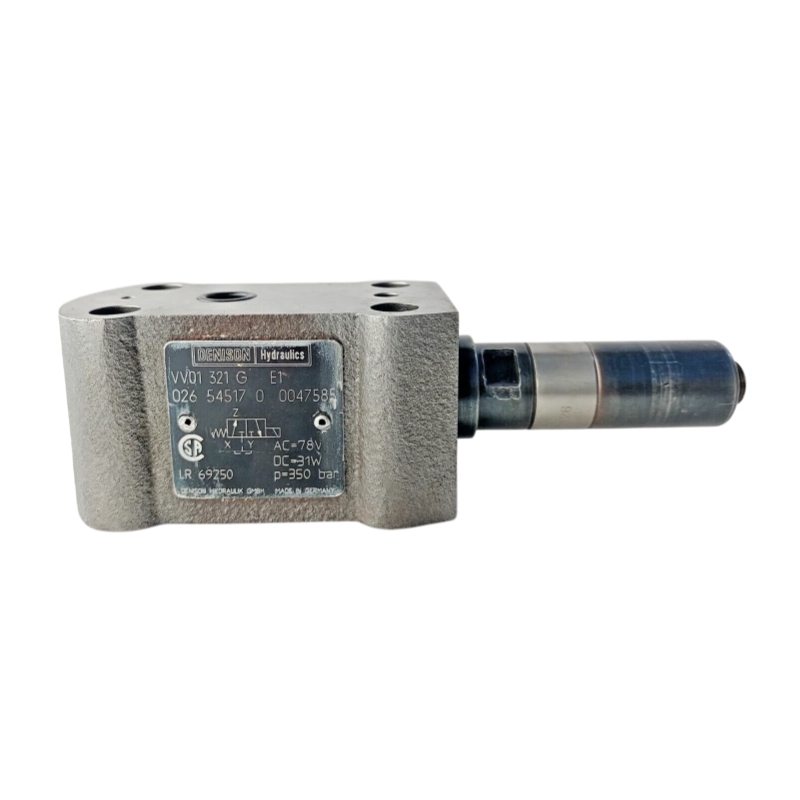

Denison Hydraulic VV01 Servo Valve

Denison Hydraulic VV01 Servo Valve

Description:

The Denison Hydraulic VV01 servo valve is a 3-way vent valve used in pilot-operated hydraulic control systems to enable precise pressure unloading and control. Designed for integration with pressure control valves such as relief, reducing, and sequence valves, it ensures fast response, stable operation, and reliable venting of pilot lines.

share:

Denison Hydraulic VV01 Servo Valve

Parameter Specification
Valve Type 3-way vent / servo control valve
Series VV01
Function Pilot line venting / pressure unloading
Operation Solenoid-operated
Control Type Electric (AC/DC)
Voltage Options 12V DC, 24V DC, 48V DC, 115V AC, 230V AC
Power Consumption Approx. 31 W
Protection Class IP65
Operating Mode Continuous duty (100%)
Coil Temperature Limit Up to 180°C
Mounting Integrated with pilot valves / subplate
Weight Approx. 1.7 kg
Seal Options NBR, EPDM, Viton
Max System Pressure Up to 350 bar (depending on system)
Manual Override Available (optional)
Electrical Connector DIN 43650 standard
