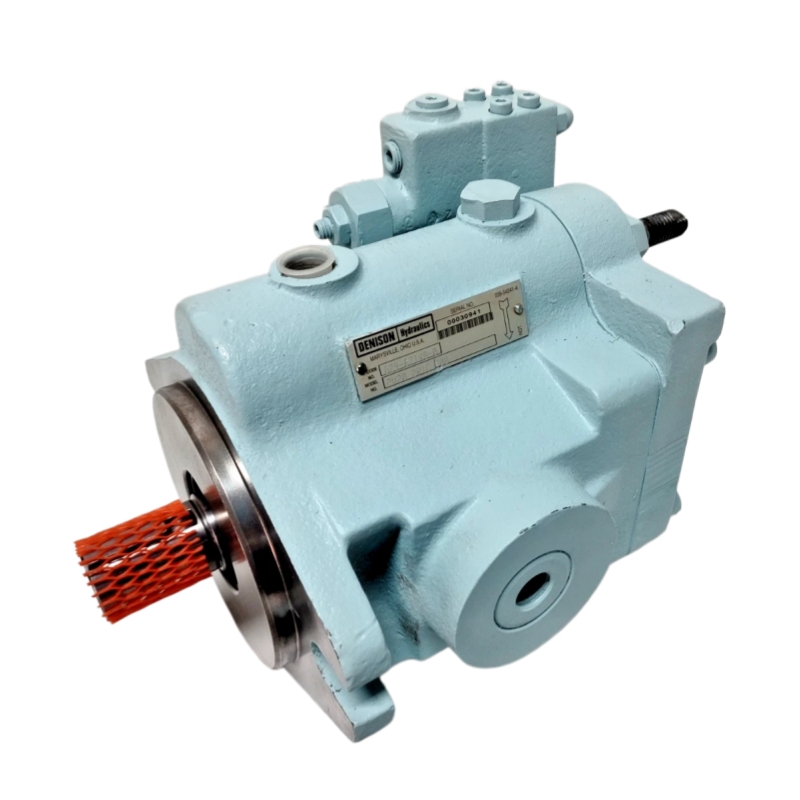

Denison PV20 Piston Pump
Description:
share:
Denison PV20 Piston Pump
| Parameter | Specification |
|---|---|
| Pump Type | Axial piston, variable displacement |
| Series | PV Series (Open loop) |
| Displacement | 2.62 in³/rev (42.9 cm³/rev) |
| Flow @ 1800 rpm | Approx. 20.4 GPM (77.2 L/min) |
| Continuous Pressure | 3500 psi (240 bar) |
| Intermittent Pressure | 4500 psi (310 bar) |
| Max Speed | 2400 rpm |
| Control Types | Pressure compensator, load sensing, torque limiter |
| Max Compensator Setting | 4000 psi (276 bar) |
| Compensator Response | 50–120 ms |
| Inlet Pressure Range | -6.1 inHg to 50 psi |
| Case Pressure (Max) | 10 psi |
| Shaft Options | Keyed or splined |
| Rotation | CW / CCW available |
| Mounting | SAE standard flange |
| Weight | Approx. 57 lb (26 kg) |
