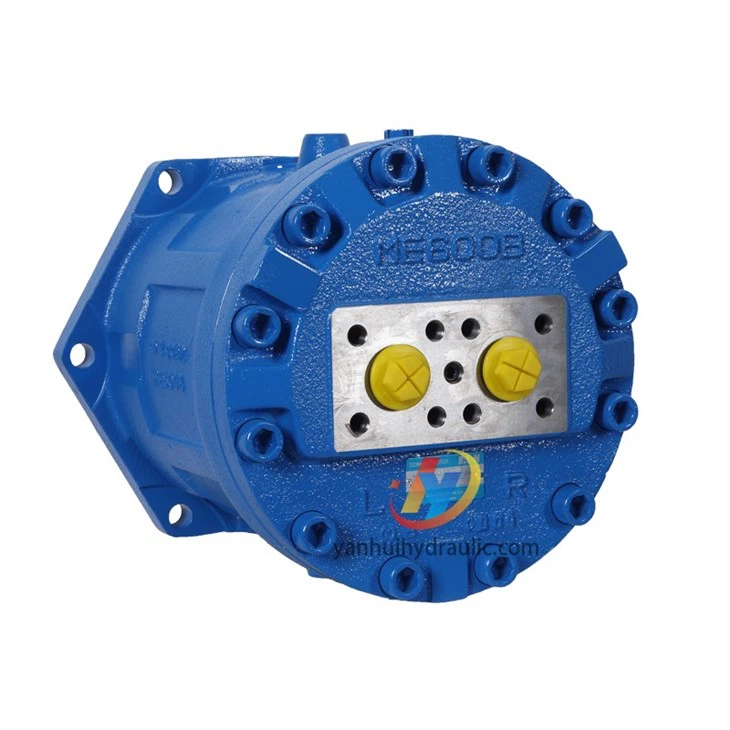

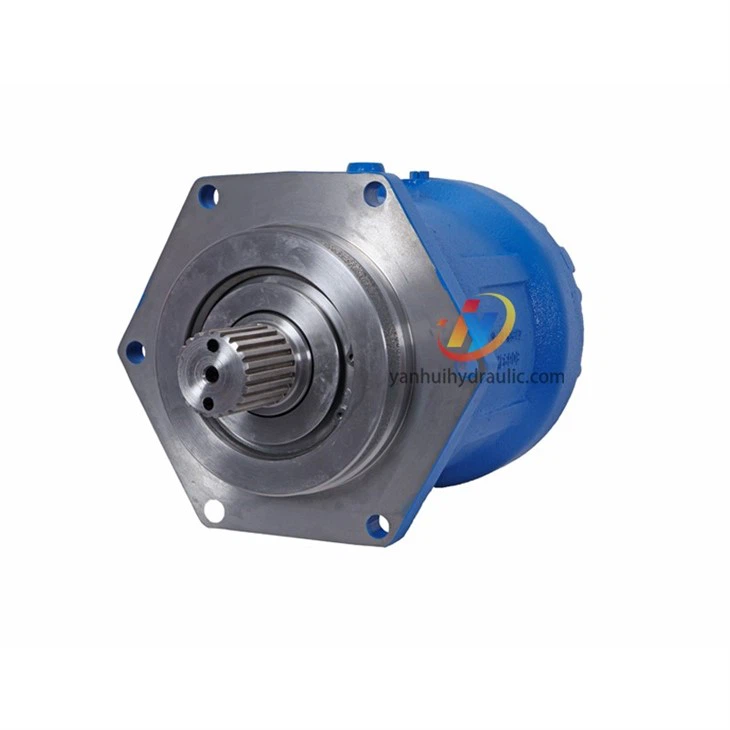

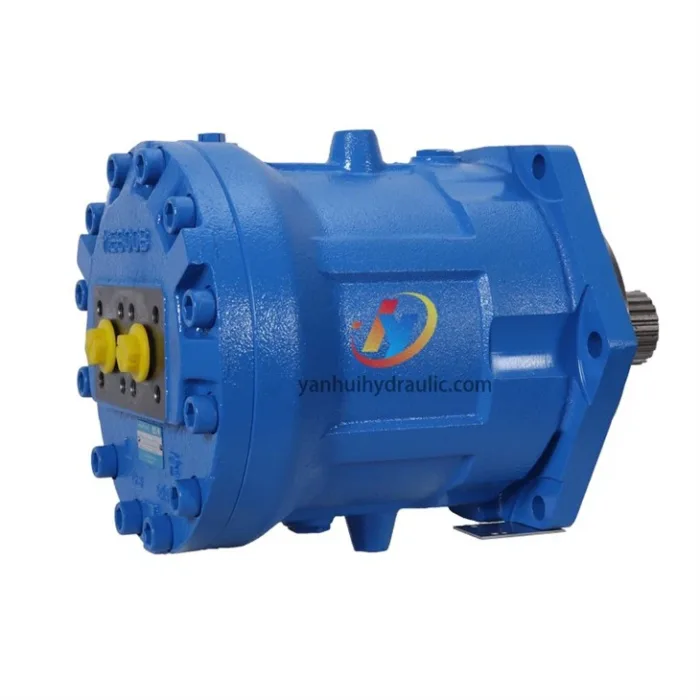

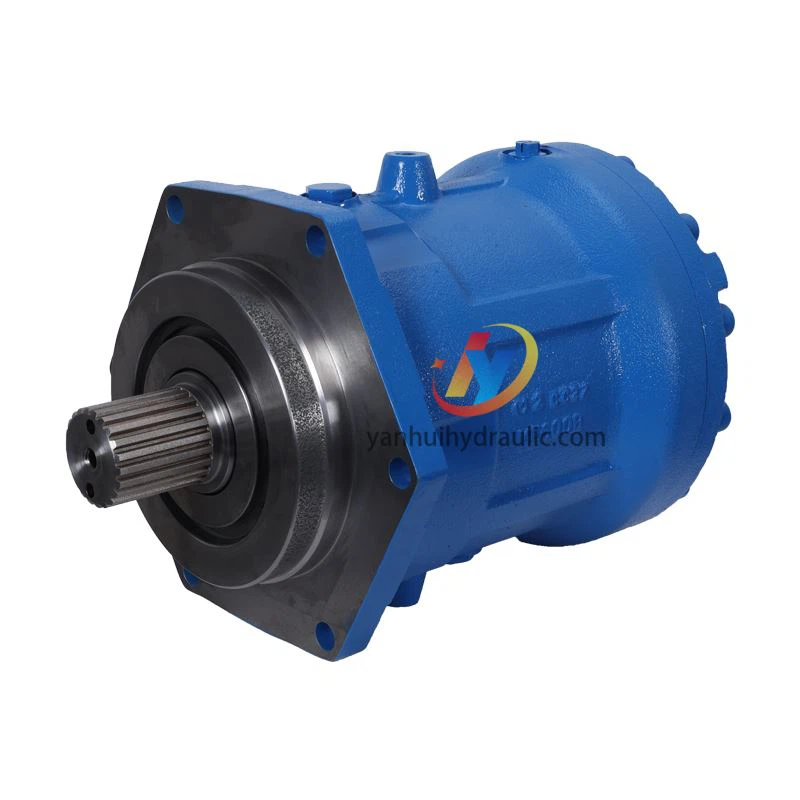

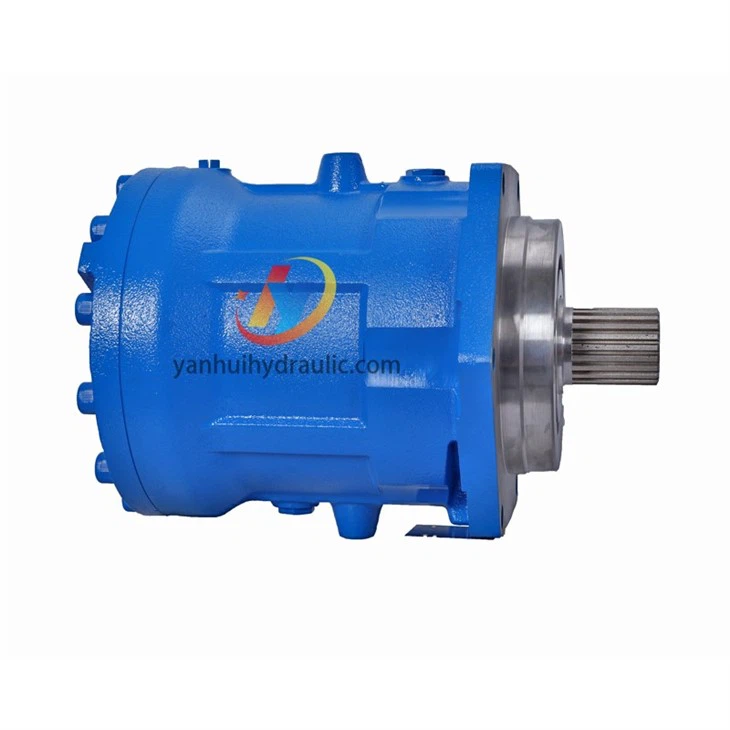

Eaton DOWMAX ME Motor
Product Details of DOWMAX ME Motor
DOWMAX ME motor series by Eaton offers a range of hydraulic motors designed to deliver efficient and reliable performance across various applications. Here are the key product parameters and applications for each model:
Product Parameters:
Model: ME100, ME150, ME175, ME300B, ME350B, ME600B, ME750B, ME850B, ME1300A, ME1900, ME2600, ME3100, ME4100.
Displacement (cm3/rev): Ranges from 99 to 4097.
Rated Pressure (MPa): Varies between 24.5 to 27.5 for the ME100 and 15990 for the ME4100.
Peak Pressure (MPa): Peaks from 31.9 to 10070.
Rated Torque (Nm): Ranges from 432 to 15990.
Rated Speed (rpm): Varies from 200 to 1000.
Max. Speed (rpm): Ranges from 200 to 1000.
Rated Horsepower (kW): Varies between 22 to 520.
Mass (kg): Ranges from 22 to 520.
Product Applications:
ME100 to ME175: Ideal for applications requiring moderate torque and speed, such as conveyor systems, agricultural machinery, and small-scale construction equipment.
ME300B to ME850B: Suited for medium-duty applications including material handling equipment, forestry machinery, and industrial conveyors.
ME1300A to ME2600: Designed for heavy-duty applications such as mining equipment, large-scale construction machinery, and marine propulsion systems.
ME3100 and ME4100: Ideal for specialized industrial applications demanding high torque and horsepower, including large-scale hydraulic presses, winches, and marine cranes.
The DOWMAX ME series offers versatility, durability, and high performance to meet the diverse needs of industries requiring hydraulic power transmission. Whether it’s for light, medium, or heavy-duty applications, these motors provide reliable operation and exceptional power delivery.
key parameters and applications for each model:
ME100: With a displacement of 99 cm³/rev, this motor is suitable for applications requiring a rated pressure of 27.5 MPa (280 kgf/cm²) and a peak pressure of 31.9 MPa (325 kgf/cm²). It delivers a rated torque of 432 Nm (44 kgf m) at a rated speed of 1000 rpm, with a maximum speed of 1000 rpm. The rated horsepower is 45 kW (62 PS), and the motor weighs 22 kg.
ME150: This model has a displacement of 152 cm³/rev and is capable of a rated pressure of 27.5 MPa (280 kgf/cm²) and a peak pressure of 31.9 MPa (325 kgf/cm²). It offers a rated torque of 667 Nm (68 kgf m) at a rated speed of 600 rpm, with a maximum speed of 800 rpm. The rated horsepower is 42 kW (57 PS), and it weighs 42 kg.
ME175: With a displacement of 175 cm³/rev, this motor can handle a rated pressure of 27.5 MPa (280 kgf/cm²) and a peak pressure of 31.9 MPa (325 kgf/cm²). It provides a rated torque of 765 Nm (78 kgf m) at a rated speed of 600 rpm, with a maximum speed of 800 rpm. The rated horsepower is 48 kW (65 PS), and it weighs 42 kg.
ME300B, ME350B, ME600B, ME750B, ME850B, ME1300A, ME1900, ME2600, ME3100, ME4100: These models offer varying displacements, rated pressures, peak pressures, rated torques, rated speeds, horsepower, and weights to suit different applications. They range from high-speed, low-torque applications to low-speed, high-torque applications, covering a wide range of hydraulic system requirements.
