Eaton Vickers PVM Series Piston Pump

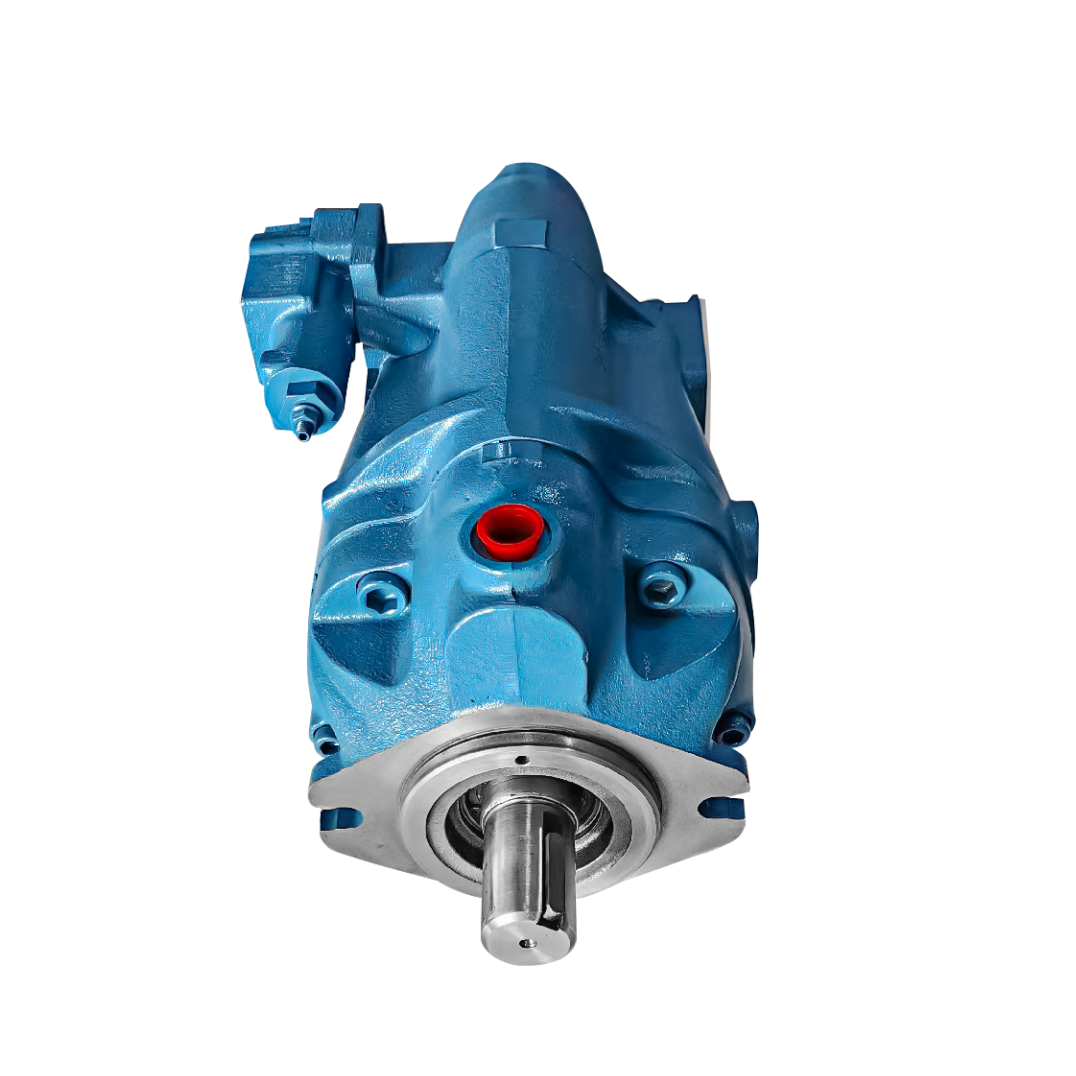

Eaton Vickers PVM series piston pump

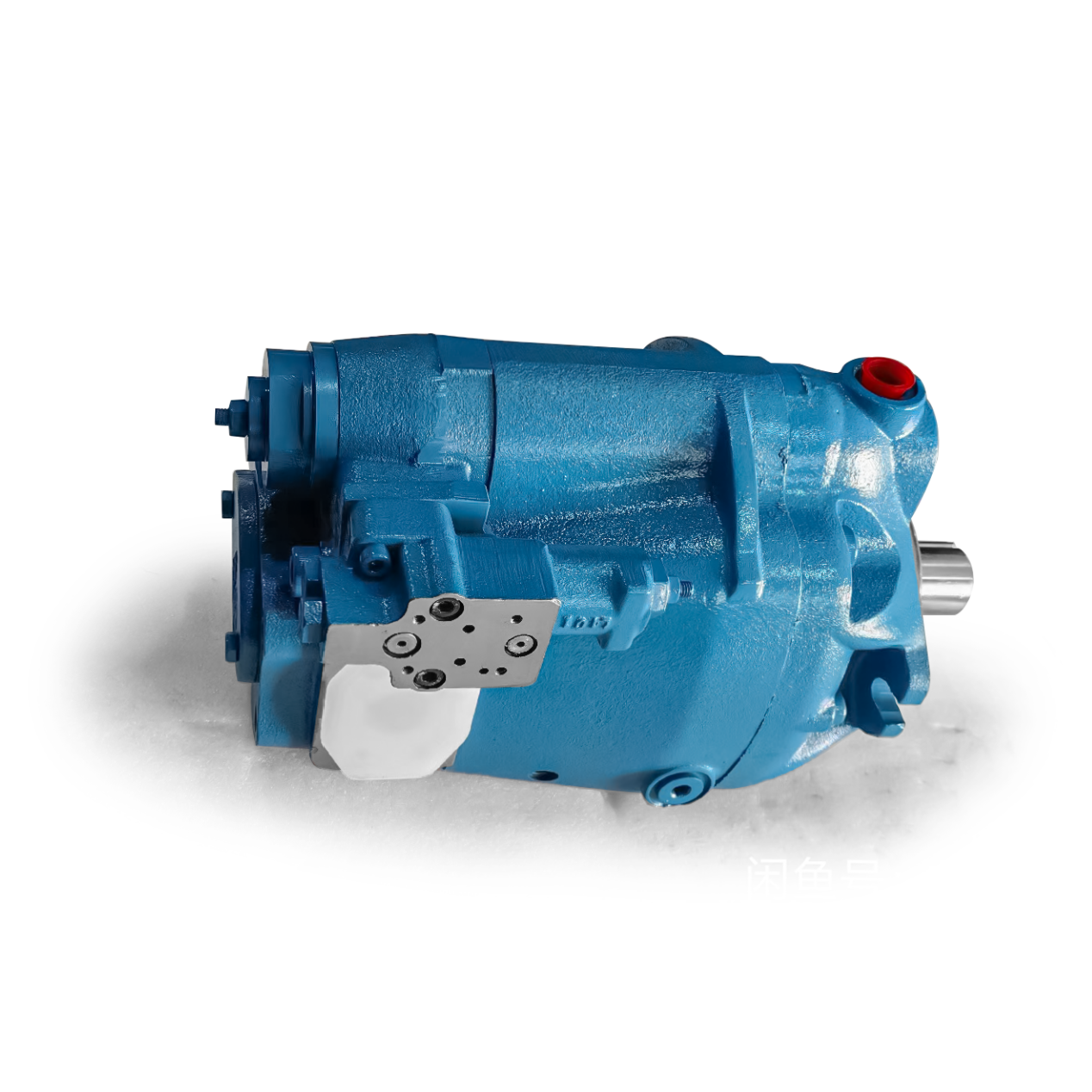

Vickers PVM axial piston hydraulic pump

Description:

The Eaton Vickers PVM Series is a family of open-circuit, variable-displacement axial-piston pumps engineered for industrial hydraulic applications. With displacements ranging from 18 to 141 cc/rev, these pumps combine compact design, high efficiency, and excellent pressure capabilities. The PVM series is particularly suited for systems where space is limited but reliable, high-performance flow control is critical — such as injection molding machines, small presses, conveyor systems, and material handling equipment.

share:

YS hydraulic is a leading supplier of hydraulic pumps, valves, and motors, specializing in high-performance solutions for industrial and mobile applications. Our product range includes top brands like Bosch Rexroth, Parker, Moog, and more. With a strong focus on quality and reliability, we provide customers with durable hydraulic systems designed to meet the most demanding requirements. In addition to product supply, we offer comprehensive repair and maintenance services, ensuring optimal performance and minimizing downtime. Our commitment to innovation and customer satisfaction makes us a trusted partner for businesses worldwide.

Hydraulic Pump and Valve Supplier – Reliable Solutions for Industrial and Mobile Applications

Advantages of the Eaton Vickers PVM Series Piston Pump

  1. High Pressure Capability: The PVM rotating group is proven to handle continuous pressures up to 315 bar (4,600 psi).

  2. Very Low Noise: The teardrop‑shaped housing helps reduce fluid-borne noise significantly (reports of ~9 dB reduction).

  3. Long Service Life: High-load bearings, a stiff drive shaft, and a cradle-bearing design support long life under industrial duty, with some sources noting 8,000 hour L10 life.

  4. Compact Footprint: Thanks to cradle-bearing and optimized internal design, the pump achieves a strong power-to-size ratio.

  5. Variable Displacement Control Options: Multiple control options (pressure compensator, torque limiter, power control, load sense, etc.) make the PVM highly flexible.

  6. Energy Efficiency: Variable-speed compatible, and the optional power control helps the system use power more accurately, lowering heat generation and potentially reducing cooling requirements.

  7. Quiet and Smooth Flow: Low pressure ripple (~4%) reduces shock in systems, contributing to smoother operation and reduced wear.

  8. Certification Options: Some PVM models are ATEX / UKEX certified for use in explosive atmospheres.

Parameter Specification / Typical Range
Pump Type Open-circuit, axial piston, variable displacement
Series / Model Range PVM — displacements: 12 variants (18, 20, 45, 50, 57, 63, 74, 81, 98, 106, 131, 141 cc/rev)
Displacement 18 to 141 cc/rev (1.1 to ~8.6 in³)
Continuous Pressure Rating Up to 315 bar (4,600 psi)
Port Types SAE flange, ISO, 4-bolt options, end-ported or side-ported versions
Control Options Pressure compensator, flow/pressure compensator, power control (torque limiter), load sense, adjustable stops, etc.
Bearing / Yoke Design Saddle-type swashplate with steel-backed polymer bearings to increase durability
Noise Reduction Three-piece housing (flange, valve block, housing) for reduced structure-borne and fluid-borne noise
Rated Life High-load bearings rated up to ~8,000 hours under industrial conditions
Rotation / Shaft Options Multiple shaft rotation options (clockwise/counter), keyed or splined shafts
Temperature / Case Pressure Standard fluid temperature range per manual; for ATEX models, case pressure and seal lubrication specs apply.
Certifications ATEX / UKEX options for hazardous environments (e.g., Zone 1)
Applications Injection molding machines, press brakes, extruders, conveyors, metal forming, material handling, manufacturing lines.
