Eaton Vickers PVXS‑090 High‑Pressure Axial Piston Pump

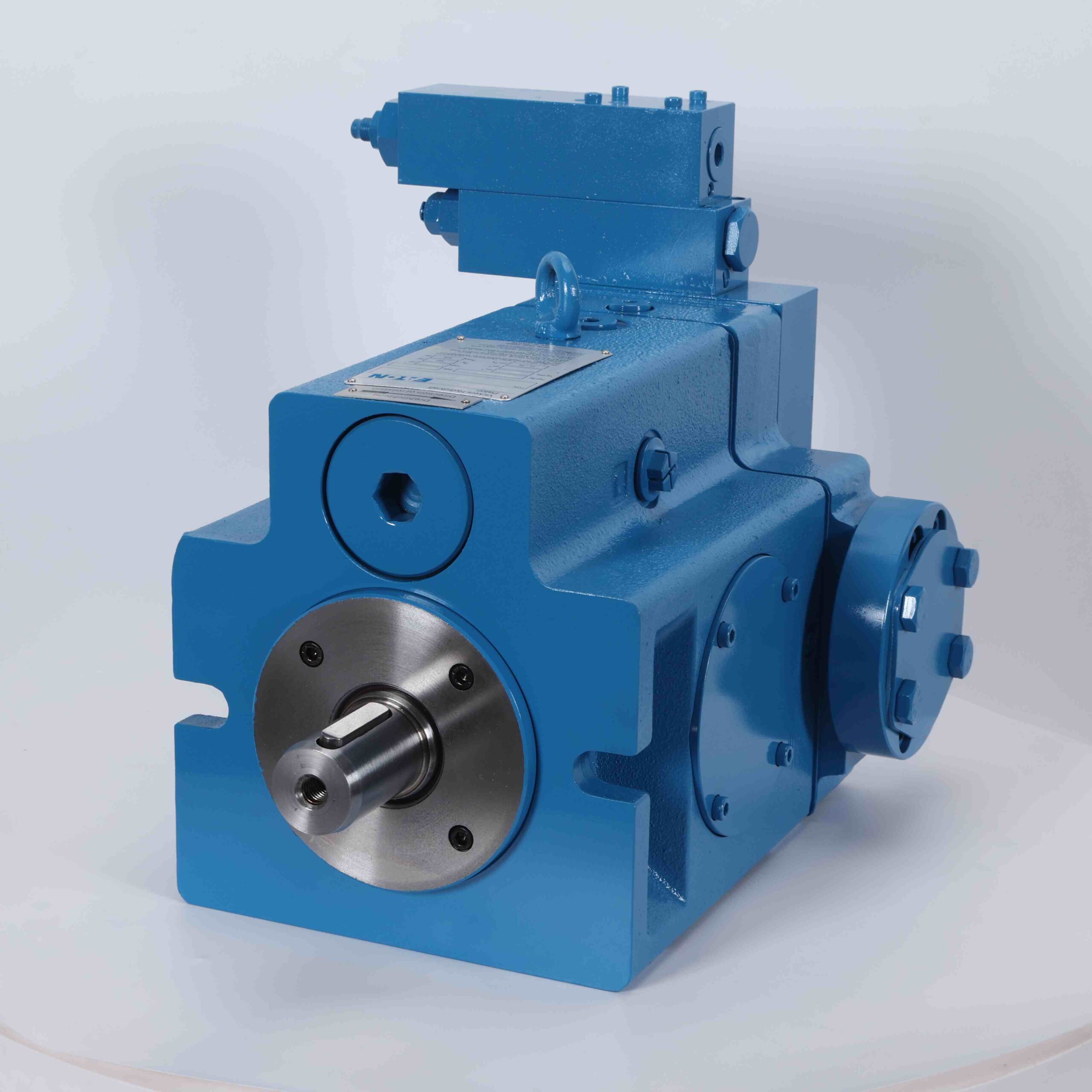

Eaton Vickers PVXS‑090 piston pump

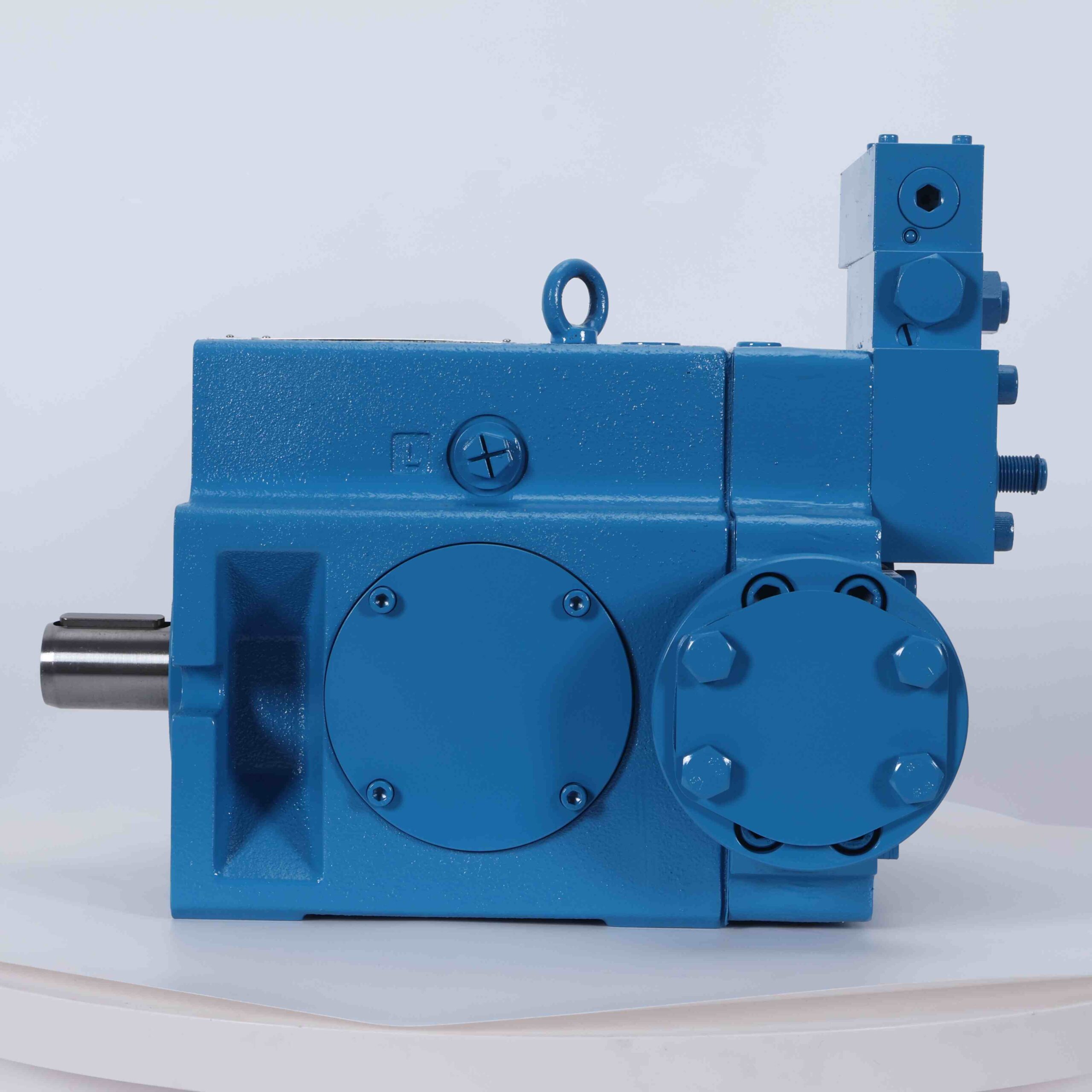

Vickers PVXS-090 high pressure hydraulic pump
Eaton PVXS series fixed displacement piston pump

Description:

The Eaton Vickers PVXS‑090 is a fixed-displacement, open-loop axial piston pump featuring a swashplate design. Engineered for high-pressure industrial applications, it provides reliable fluid power in demanding environments. With a displacement of around 90 cm³/rev, the PVXS-090 offers high flow capacity, excellent dynamic response, and robust construction — making it well-suited for metal forming, presses, hydraulic power units, and other heavy-duty systems.

share:

YS hydraulic is a leading supplier of hydraulic pumps, valves, and motors, specializing in high-performance solutions for industrial and mobile applications. Our product range includes top brands like Bosch Rexroth, Parker, Moog, and more. With a strong focus on quality and reliability, we provide customers with durable hydraulic systems designed to meet the most demanding requirements. In addition to product supply, we offer comprehensive repair and maintenance services, ensuring optimal performance and minimizing downtime. Our commitment to innovation and customer satisfaction makes us a trusted partner for businesses worldwide.

Hydraulic Pump and Valve Supplier – Reliable Solutions for Industrial and Mobile Applications

Advantages of the Eaton Vickers PVXS‑090 High‑Pressure Axial Piston Pump

  • High Pressure Capability — Supports up to 420 bar, enabling high-power hydraulic systems.

  • Robust, Reliable Design — Swashplate axial piston design with pressure-balanced rotating elements ensures long service life.

  • Strong Mechanicals — Oversized shafts and bearings handle high loads and improve durability.

  • Good Thermal & Viscosity Performance — Supports a wide fluid viscosity range (10–75 cSt) and handles high start-up viscosity (~1,000 cSt).

  • Flexible Mounting — Available in both flange and foot-mount configurations.

  • Modular / Building-Block Design — The PVXS series supports various control options and can be adapted for different circuit designs.

  • Fast Response — Designed for applications requiring dynamic response and stable flow control.

Parameter Specification / Typical Value
Pump Type Fixed‑displacement axial piston pump (open loop)
Series PVXS (Vickers / Eaton)
Model PVXS‑090
Geometric Displacement ~ 90 cm³/rev
Maximum Rated Speed ~ 1,800 rpm
Nominal (Continuous) Pressure 350 bar
Maximum Pressure 420 bar
Flow (Theoretical, at 1800 rpm) ~ 162 L/min
Inlet (Suction) Pressure ~0.85 bar abs (typical)
Case (Over) Pressure Example: ~3.5 bar at 1,200 rpm (varies by model)
Hydraulic Fluid Mineral-based hydraulic oil per DIN 51524-2 (or equivalent)
Viscosity Range (Continuous) 10 – 75 cSt
Maximum Start Viscosity ~1,000 cSt
Ambient / Fluid Temperature Range –20°C to +90°C (as referenced by similar PVXS models)
Port / Mounting Options Flange (ISO 6162 / SAE), foot mounting
Shaft / Bearings Oversized shafts and bearings for durability
Pressure-Balanced Components Rotating and pressure-loaded parts are pressure-balanced for stability and longevity
Weight (approx) ~ 75 kg for the 90 cc model (per data from similar sources)
Typical Applications Metal-forming presses, hydraulic power units, marine winches, industrial machinery
