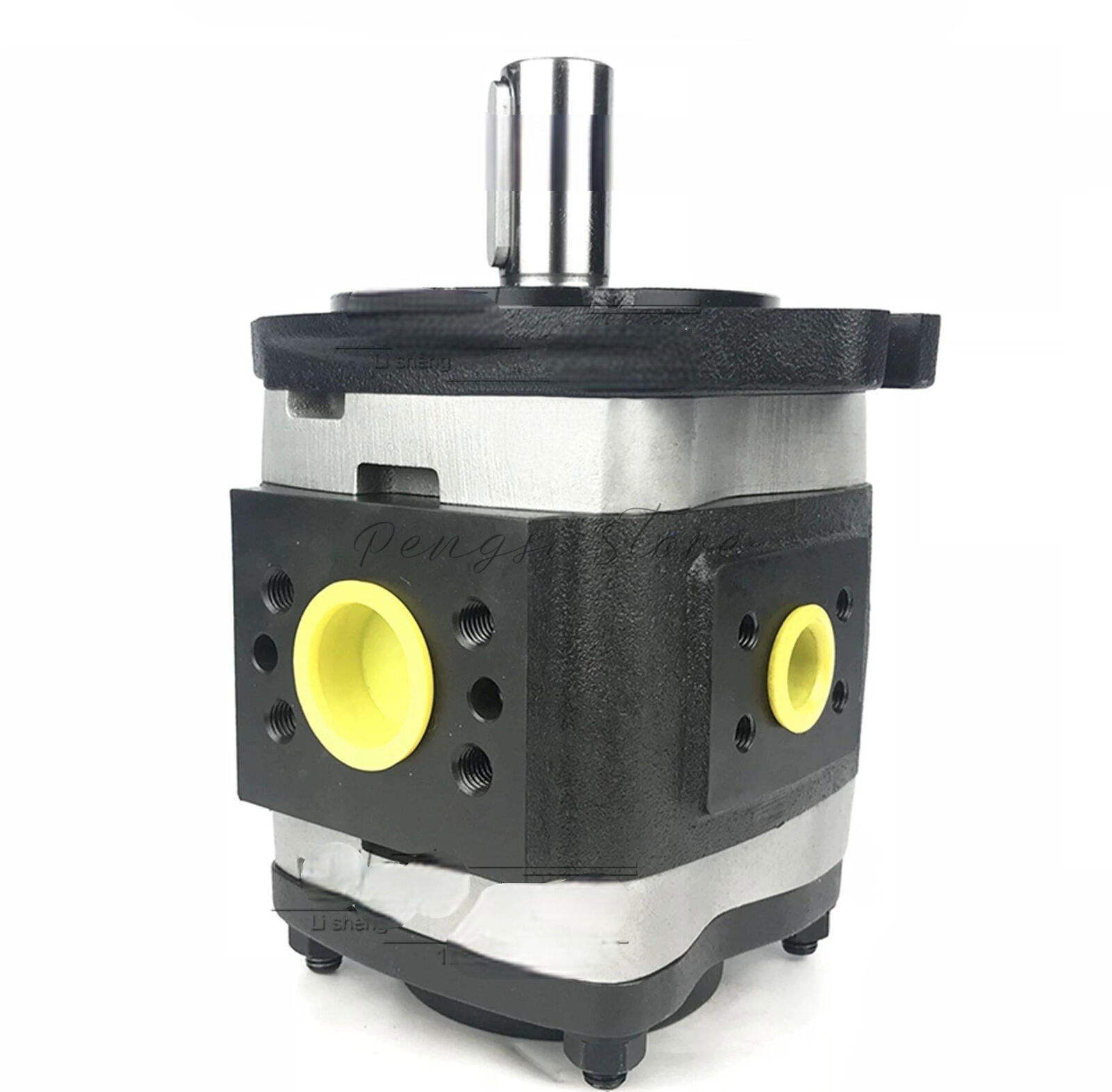

IPVP Series Gear Pumps
Description:
share:
IPVP Series Gear Pumps
| Parameter | Specification |
|---|---|
| Pump Type | External Gear Pump |
| Series | IPVP |
| Displacement Range | 1 – 80 cc/rev |
| Maximum Pressure | 250 bar |
| Continuous Pressure | 210 bar |
| Peak Pressure | 260 bar |
| Speed Range | 600 – 3000 rpm |
| Rotation | Clockwise / Counterclockwise |
| Mounting Type | Flange Mount |
| Shaft Type | Keyed / Splined Shaft |
| Port Type | BSP / SAE |
| Hydraulic Fluid | Mineral Oil Based Hydraulic Fluids |
| Operating Temperature | -20°C to +80°C |
| Efficiency | High volumetric efficiency |
| Application | Construction machinery, agricultural equipment, hydraulic power units |
