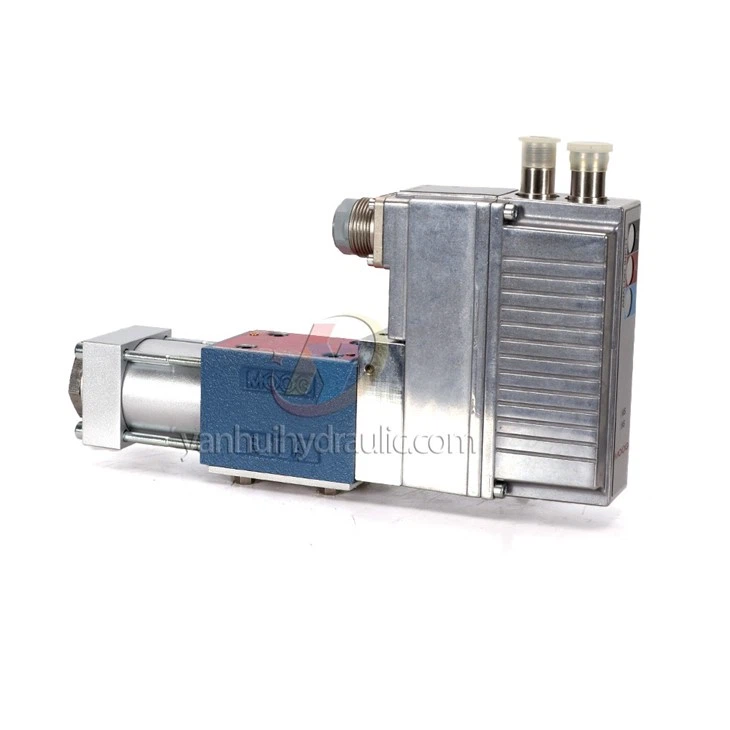

MOOG D638 Analog Servo Valve

Moog D638 hydraulic valve side view with ports

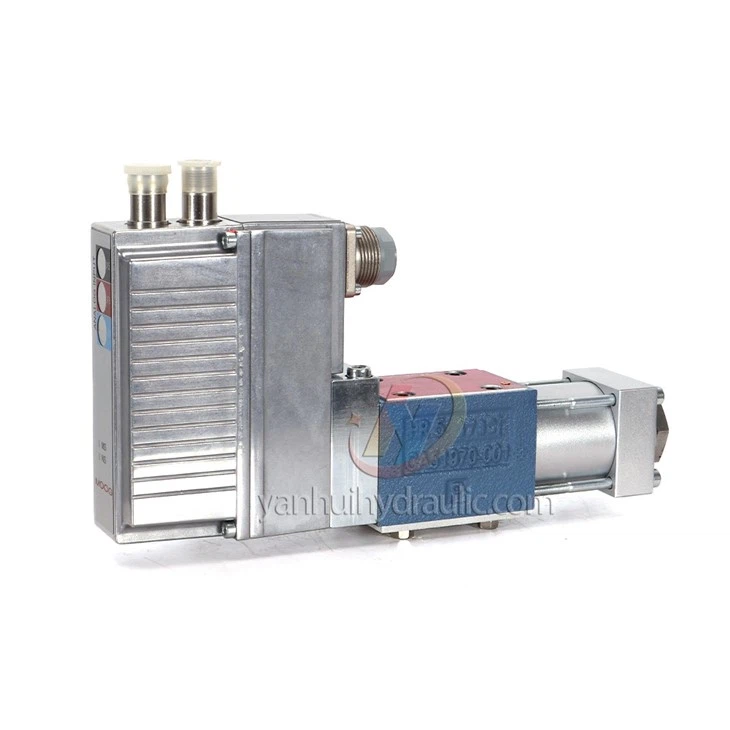

MOOG D638 Analog Servo Valve - Image 2

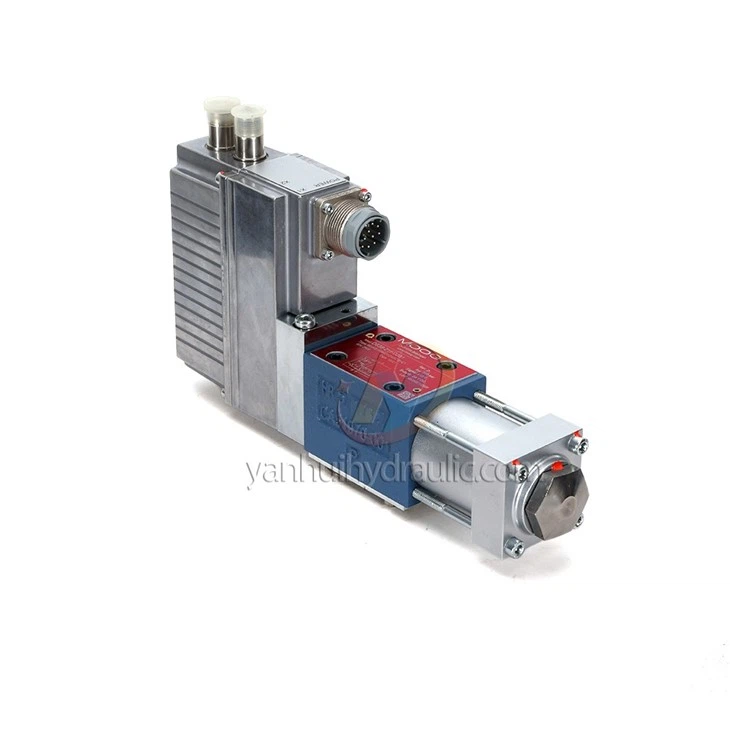

MOOG D638 Analog Servo Valve - Image 3
MOOG D638 Analog Servo Valve - Image 4

Description:

share:

Details of MOOG D638 Analog Servo Valve

  • Mounting pattern: ISO 4401, size 03 (for D638)

  • Rated flow: 5 to 100 L/min per spool land at Δp = 35 bar (≈ 1.3–26.3 gpm)

  • Maximum flow: up to 75 L/min (for D638)

  • Maximum operating pressure (ports P, A, B): up to 350 bar (5,000 psi)

  • Step response (0 → 100% stroke): approx. 8 ms (at 210 bar)

  • Supply voltage: 24 V DC (range 18–32 V DC)

  • Control functions: flow control, pressure control, combined flow & pressure (p/Q), plus optional axis control (position, velocity, force) depending on configuration.
