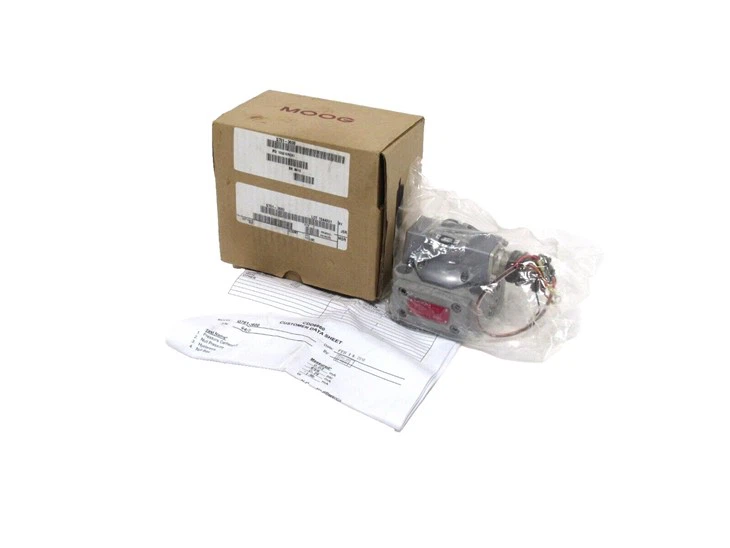

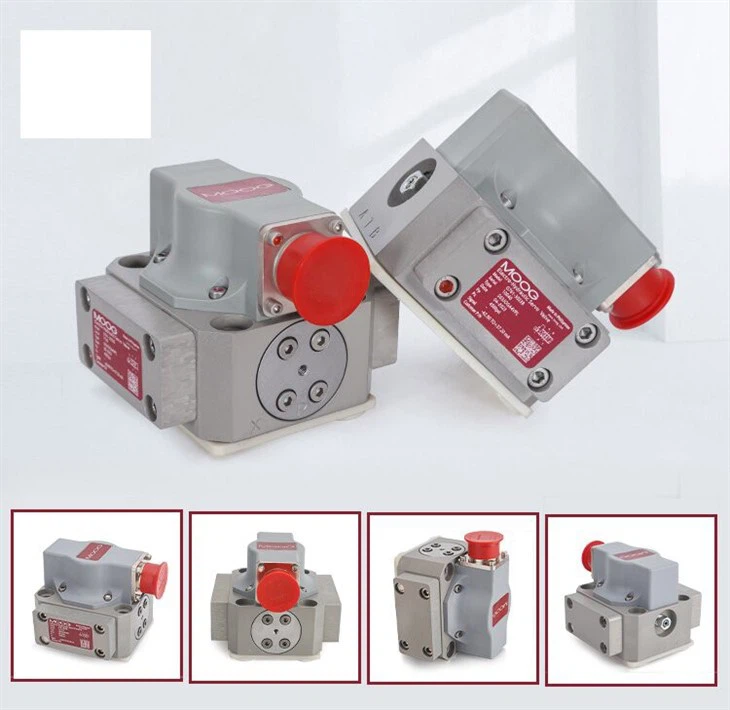

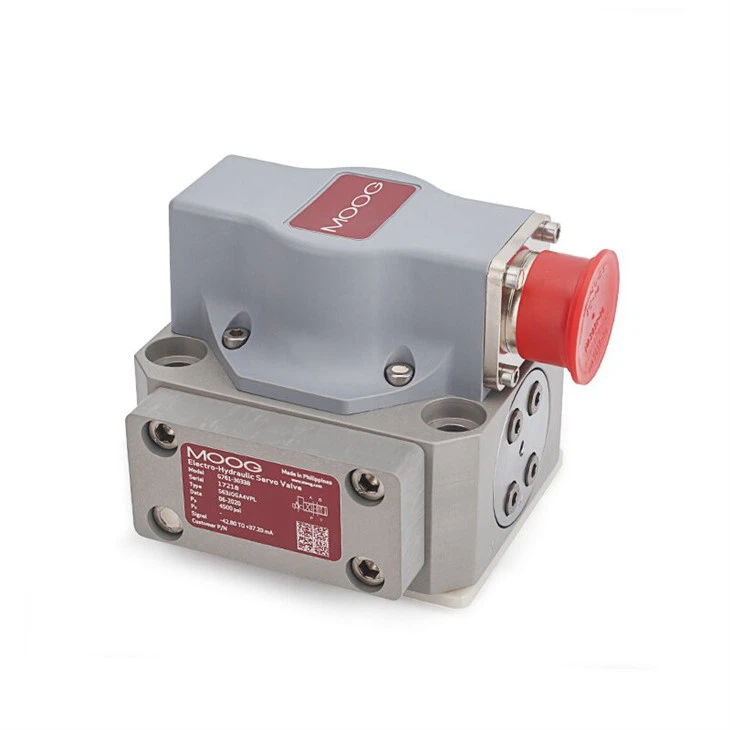

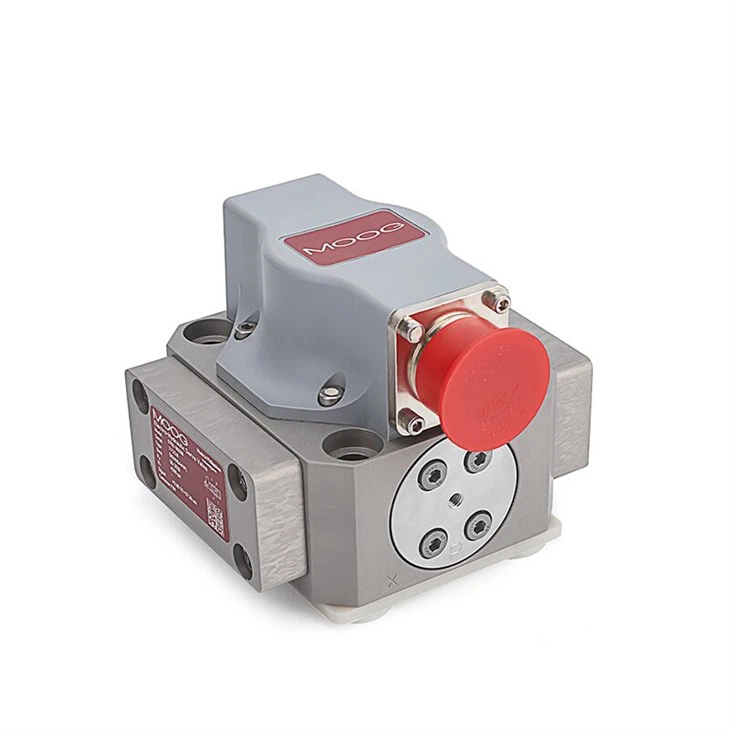

Moog G761 Servo Valve
Description:
share:
Advantages of the The Moog G761 Servo Valve
-
High Precision: Exceptional linearity and repeatability for precise flow and pressure control.
-
Fast Dynamic Response: High-frequency response ensures rapid system adjustments.
-
Robust & Durable: Designed to operate reliably under harsh environments and continuous cycles.
-
Energy Efficient: Optimized to reduce energy loss and heat generation in hydraulic systems.
-
Versatile Applications: Ideal for aerospace, industrial machinery, testing rigs, and automation systems.
-
Low Maintenance: Long operational life with minimal maintenance requirements.
| Parameter | Specification / Details |
|---|---|
| Product Type | Electro-Hydraulic Servo Valve |
| Model Series | G761 |
| Manufacturer | Moog |
| Flow Rate | 0–20 l/min (typical, model dependent) |
| Operating Pressure | Max 350 bar |
| Control Type | Proportional / Servo |
| Frequency Response | Up to 200 Hz (varies with load and configuration) |
| Hysteresis | < 1% |
| Leakage Rate | < 0.5 ml/min |
| Voltage | ±10 V input standard, optional configurations |
| Temperature Range | -20°C to +85°C |
| Mounting Type | Flange or threaded |
| Port Sizes | SAE, ISO, or custom depending on configuration |
| Materials | Valve body: Steel/Aluminum; Spool: Hardened steel |
| Electrical Connection | MIL, DIN, or other custom connectors |
| Certification | ISO 9001, CE compliant |
| Applications | Aerospace, industrial automation, testing systems |
| Special Features | Fast response, precise flow control, robust design |
| Maintenance | Low-maintenance, long service intervals |
