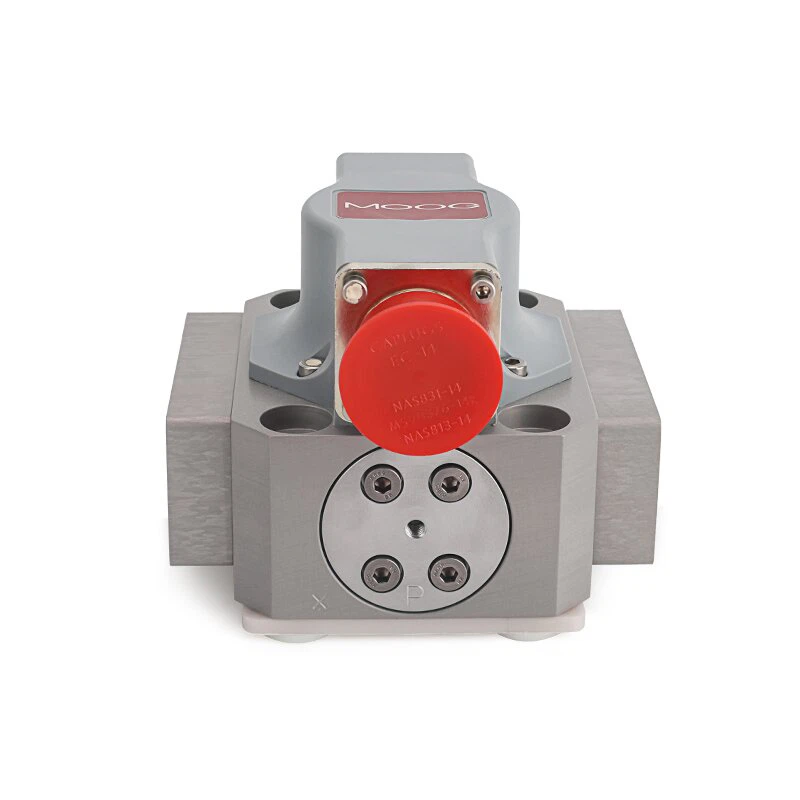

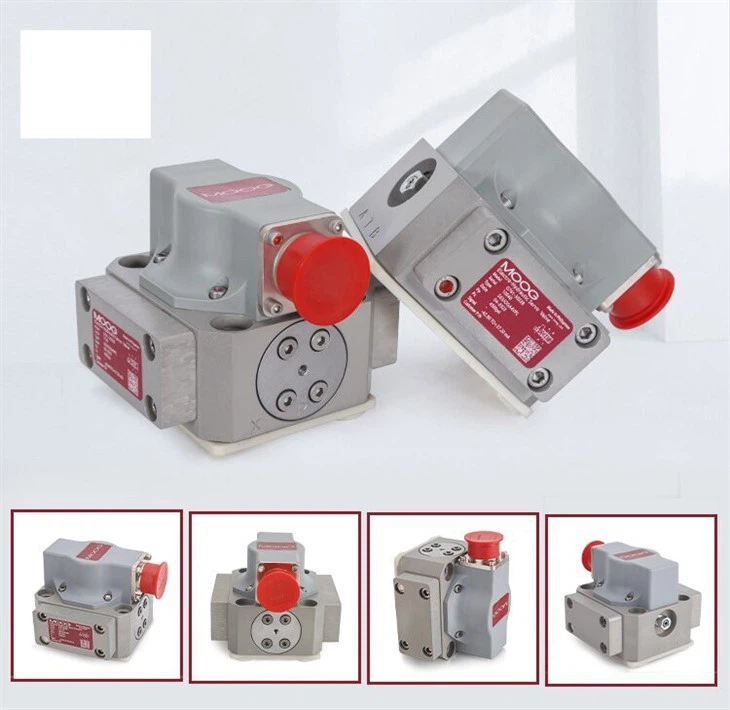

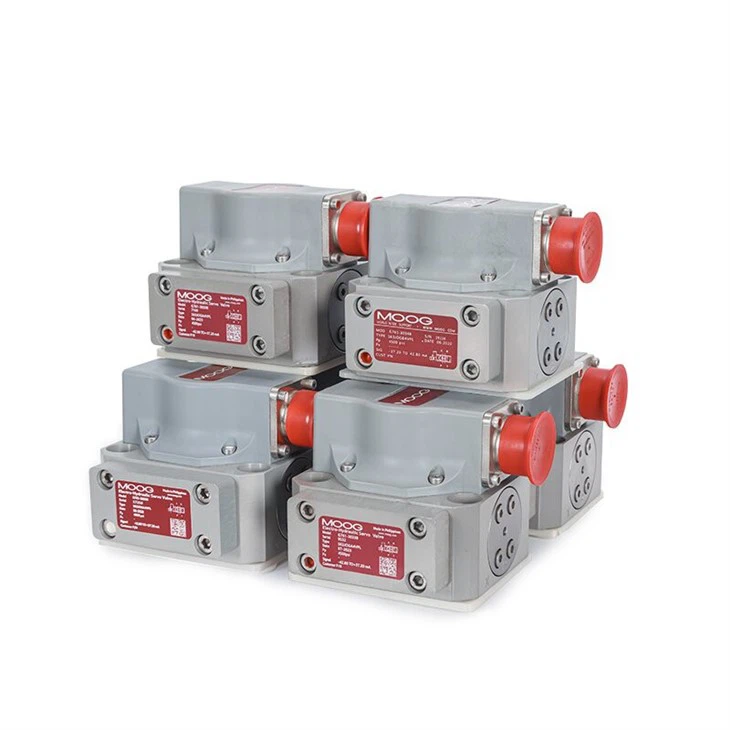

MOOG G761-3033B
Description:
share:
Details of MOOG G761-3033B
-
Two‑stage design: A nozzle‑flapper pilot stage (first stage) driving a conventional 4-way spool (second stage) ensures high dynamics, high resolution, low hysteresis.
-
Mechanical feedback: A carbide‑tipped feedback wire provides precise spool‑position feedback, ensuring high accuracy and long service life.
-
Robust & versatile: Compact design, rugged construction; suitable for a broad range of hydraulic control applications.
Typical Technical Data (for 761‑Series / applicable to G761 variants)
| Parameter | Value / Range |
|---|---|
| Rated flow (standard configs) | 4 – 63 L/min (≈ 1.1 – 16.5 gpm) at 35 bar valve pressure drop per spool land |
| Full flow range | 0.5 – 75 L/min (≈ 0.125 – 19.5 gpm) |
| Max. operating pressure (Ports P, A, B, X) | 315 bar (Aluminum body) / 350 bar (Steel body) |
| Response time (step 0 → 100 % stroke) | Standard: <16 ms; High: <7 ms; Very high: <4 ms (depending on configuration) |
| Mounting pattern | ISO 10372‑04‑04‑0‑92 (Size 04) |
| Hydraulic fluid | Mineral‑oil based, per DIN 51524 (Parts 1–3) or ISO 11158. Seal materials typically FKM or EPR (other options on request). |
