Moog Rkp

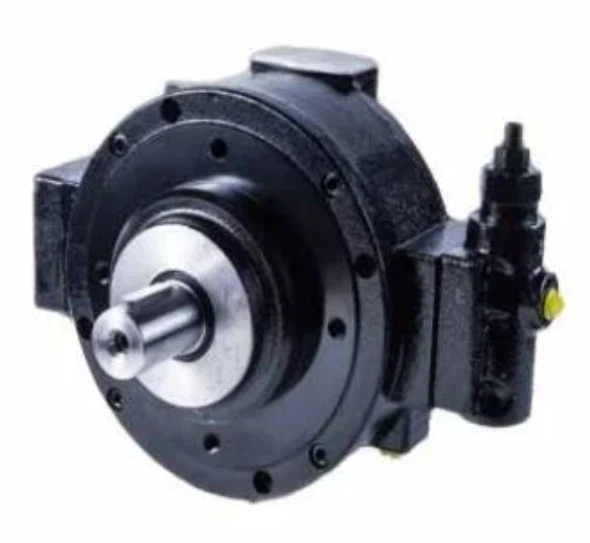

Moog RKP radial piston pump unit

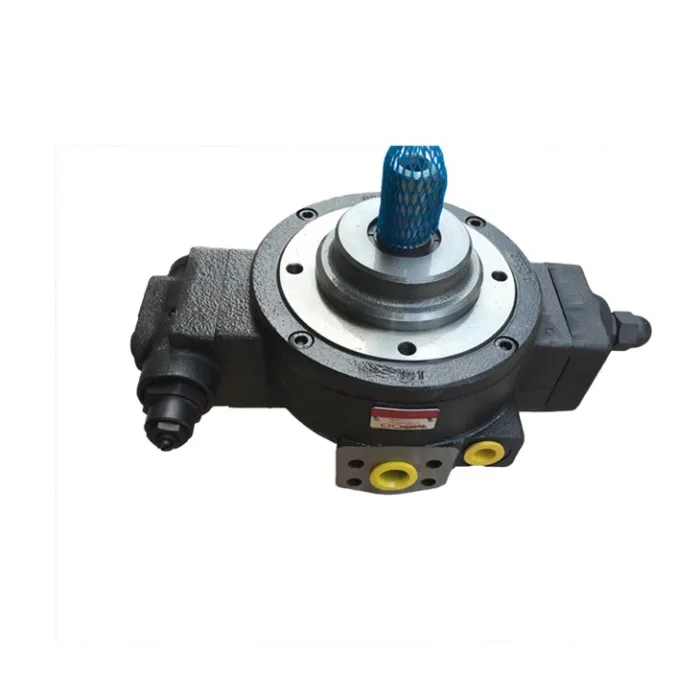

Moog Rkp - Image 2

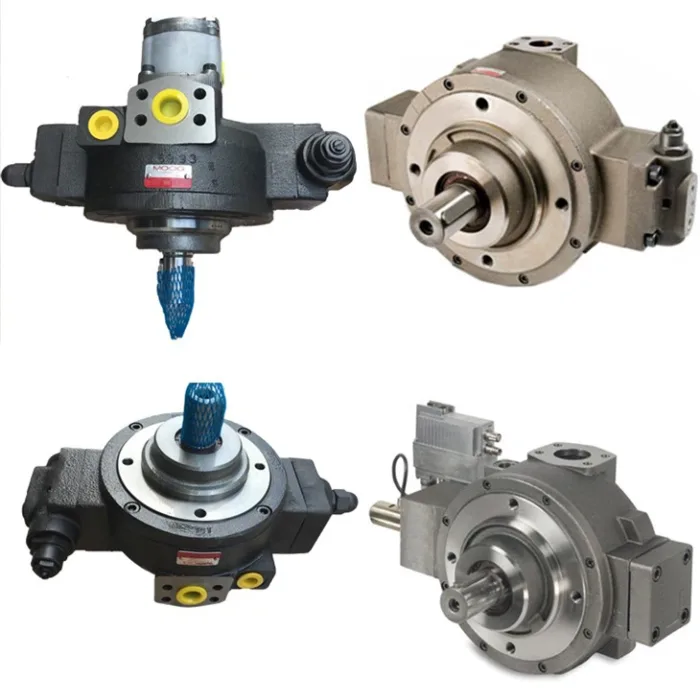

Moog Rkp - Image 3

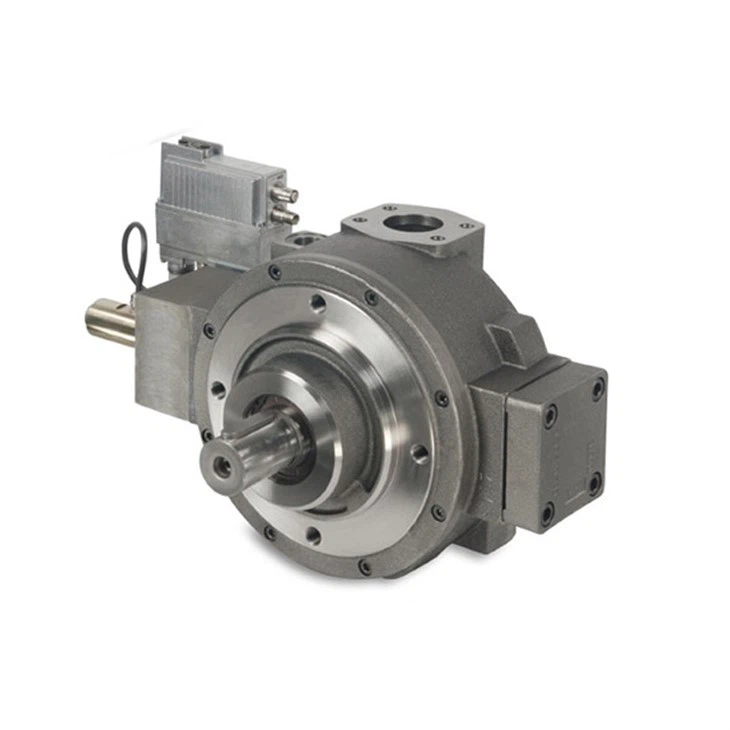

Moog Rkp - Image 4

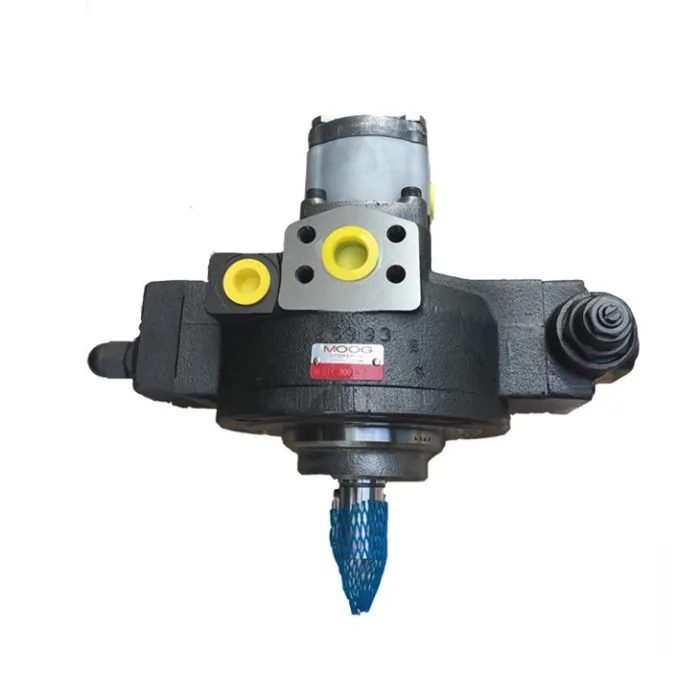

Moog Rkp - Image 5

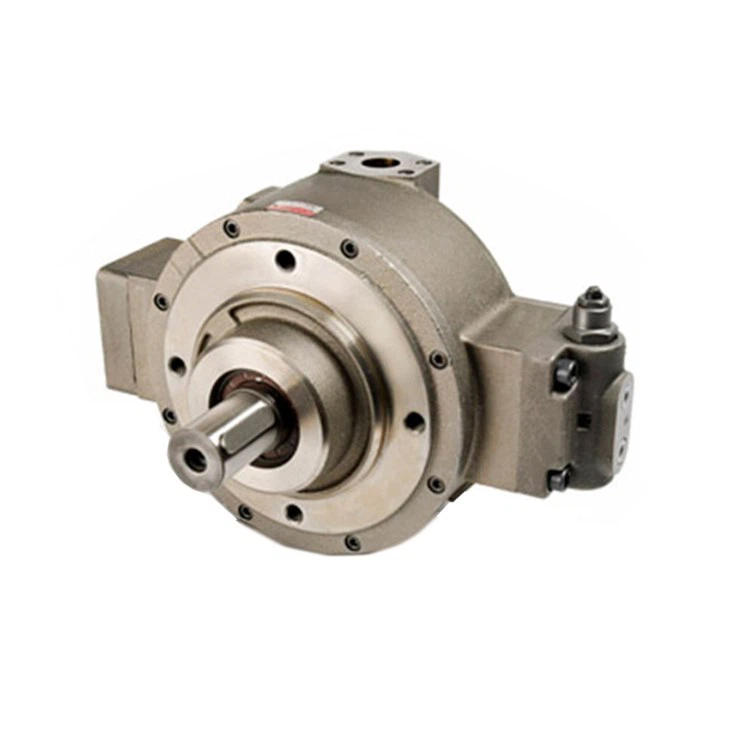

Moog Rkp - Image 6

Description:

The Moog RKP is a family of radial piston pumps designed for open‑circuit hydraulic systems. It is widely used in demanding industrial applications (e.g. plastics injection molding, metal forming presses, heavy industrial machinery, marine, test benches) where high reliability, energy efficiency, and stable hydraulic flow are required.

Brand New Moog RKP

Parameter / Spec	Value / Range
Displacement (cm³ per rev)	19, 32, 45, 63, 80, 100, 140, 250
Max Speed (rpm) at ~1 bar inlet	Up to 2,900 (varies with size)
Continuous Operating Pressure (standard series)	280 bar (≈ 4,000 psi)
Peak Pressure (standard series)	350 bar (≈ 5,000 psi)
Continuous Operating Pressure (high‑pressure series)	350 bar (5,000 psi)
Fluid Compatibility	Mineral oil, special fluids (HFA / HFC / HFD), emulsions, phosphate‑esters, etc.
Control Options	Mechanical / hydromechanical, electro‑hydraulic, digital (RKP‑D) with fieldbus / analog or CANopen interface
Typical Applications	Injection molding, metal forming, presses, test benches, heavy machinery, marine hydraulics
