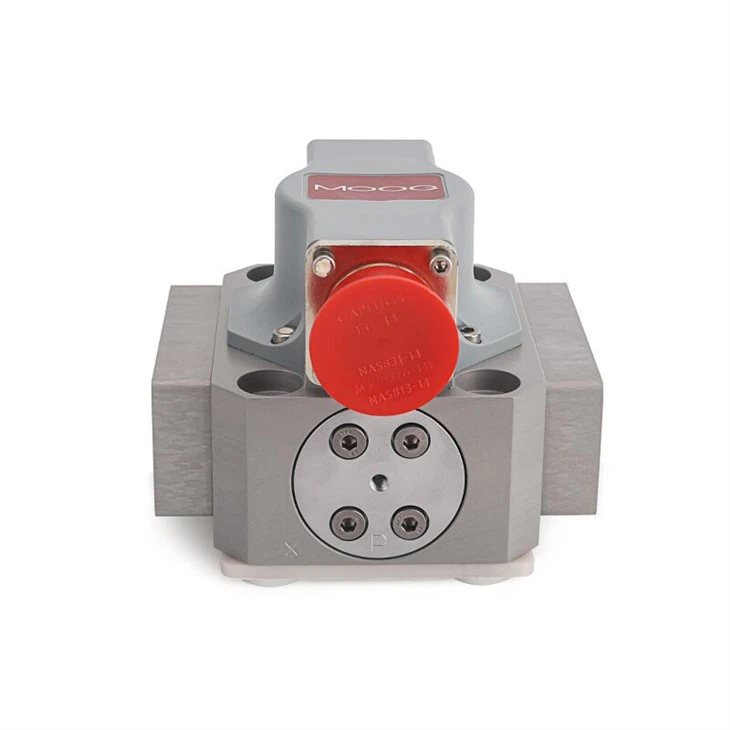

MOOG servo valve for hydraulic systems

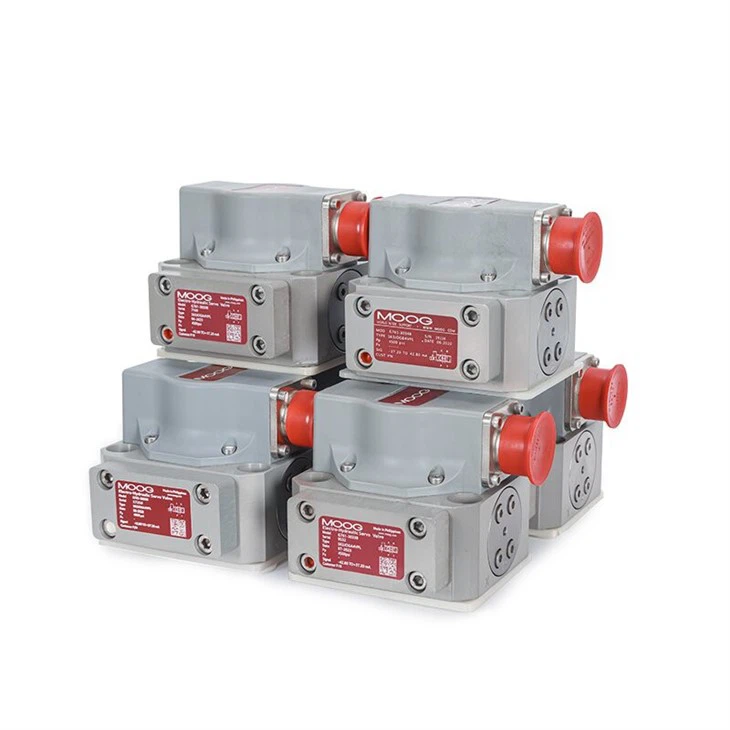

MOOG Servo Valves - Image 2

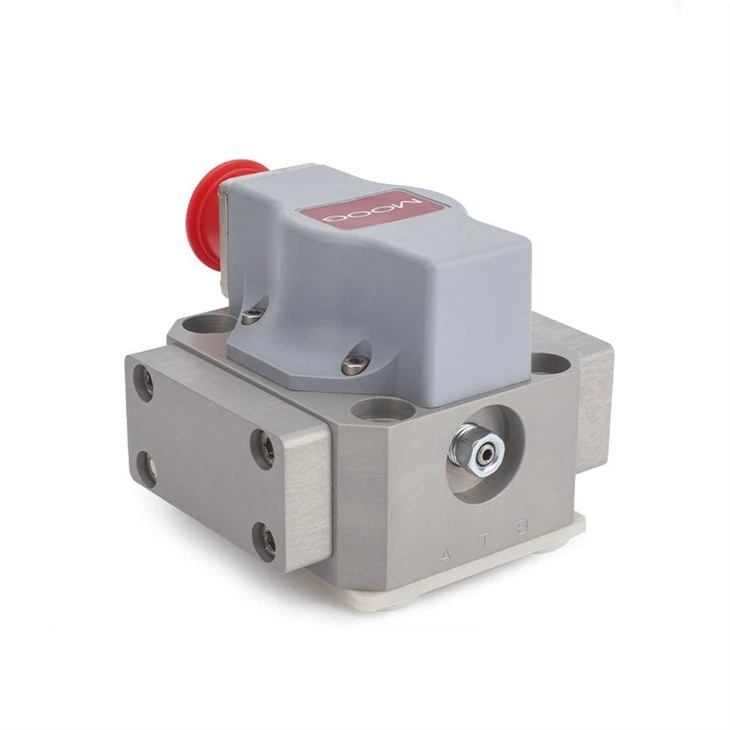

MOOG Servo Valves - Image 3
MOOG Servo Valves - Image 4

Description:

MOOG Servo Valves are precision electro-hydraulic components designed to control flow and pressure in advanced hydraulic systems. Known for their exceptional dynamic response, high accuracy, and reliability, MOOG servo valves are widely used in aerospace, industrial automation, robotics, and testing equipment. They ensure smooth and precise motion control, enabling highly responsive and energy-efficient hydraulic systems.

share:

Product Details of MOOG Servo Valves

MOOG Servovalves: G771, G772, G773, 771, 772, & 773 Series Flow Control Valve

MOOG’s G771, G772, G773, 771, 772, and 773 series of flow control valves are designed to provide precise flow regulation and high performance in hydraulic systems. With a range of flow rates, pressure ratings, and signal options, these servovalves offer versatility and reliability for various industrial applications.

Key Specifications:

Rated Flow: The G771, G772, G773, 771, 772, and 773 series of flow control valves offer a range of rated flow options, including 1.9, 3.8, 9.6, and 19 l/min (0.5, 1, 2.5, and 5 gpm) at a pressure drop (∆p) of 70 bar (1,000 psi).

Rated Pressure: These servovalves are rated for a maximum operating pressure of 210 bar (3,000 psi), ensuring reliable performance under demanding conditions.

Rated Signal: The G771, G772, G773, 771, 772, and 773 series are available with various rated signal options, including +/- 8.0, 15, 30, 40, and 200 mA single coil signals, allowing for precise control and adjustment.

Port Pattern: Multiple port pattern options are available for easy integration into hydraulic systems, providing flexibility in installation and configuration.

Versatility and Reliability:

MOOG’s G771, G772, G773, 771, 772, and 773 series of flow control valves are engineered for versatility and reliability. These valves offer precise flow regulation and consistent performance, making them suitable for a wide range of applications, including industrial machinery, aerospace, automotive, and more.

Applications:

The G771, G772, G773, 771, 772, and 773 series of flow control valves are commonly used in hydraulic systems where accurate flow control is critical. These valves are ideal for applications such as speed control, actuator positioning, pressure regulation, and flow distribution in various industries.

Conclusion:

MOOG’s G771, G772, G773, 771, 772, and 773 series of flow control valves offer precise flow regulation, high performance, and reliability for diverse hydraulic system requirements. With a range of flow rates, pressure ratings, and signal options, these servovalves provide versatile solutions for critical control applications in industrial settings.
