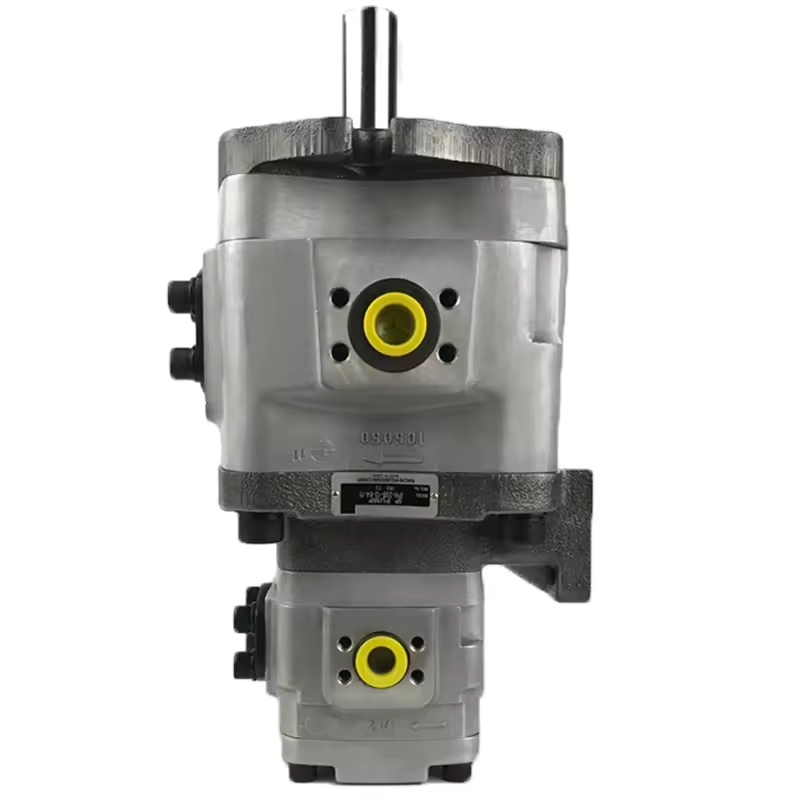

NACHI IPH-22B-3.5-5-11 Double IP Pump

NACHI IPH Series Double IP internal gear hydraulic pump

Description:

The NACHI IPH-22B-3.5-5-11 Double IP Pump is a high-performance internal gear hydraulic pump designed for compact hydraulic systems requiring dual oil circuits. Manufactured under NACHI’s IP Pump series standards, this double pump combines stable pressure output, low noise, and high volumetric efficiency in a compact structure.

share:

NACHI IPH-22B-3.5-5-11 Double IP Pump

Item Specification
Brand NACHI
Series IP Pump (Internal Gear Pump)
Model IPH-22B-3.5-5-11
Pump Type Double Internal Gear Pump
Number of Sections 2
Displacement (Front Section) 3.5 cm³/rev
Displacement (Rear Section) 5 cm³/rev
Rated Pressure 21 MPa (210 bar)
Maximum Pressure 25 MPa
Rated Speed Range 600 – 1800 rpm
Maximum Speed 2000 rpm
Rotation Direction Clockwise (viewed from shaft end)
Mounting Type Flange Mount
Shaft Type Standard keyed shaft
Fluid Type Mineral hydraulic oil
Operating Temperature –10 °C to +60 °C
Typical Applications Machine tools, hydraulic units, industrial equipment



NACHI IPH Series Double IP Pump Model List:
IPH-22B-3.5-3.5-11 IPH-55B-40-40-11
IPH-22B-3.5-5-11 IPH-55B-40-50-11
IPH-22B-3.5-6.5-11 IPH-55B-40-64-11
IPH-22B-3.5-8-11 IPH-55B-50-50-11
IPH-22B-5-5-11 IPH-55B-50-64-11
IPH-22B-5-6.5-11 IPH-55B-64-64-11
IPH-22B-5-8-11 IPH-56B-40-100-11
IPH-22B-6.5-6.5-11 IPH-56B-40-125-11
IPH-22B-6.5-8-11 IPH-56B-40-80-11
IPH-23B-3.5-10-11 IPH-56B-50-100-11
IPH-23B-3.5-13-11 IPH-56B-50-125-11
IPH-23B-3.5-16-11 IPH-56B-50-80-11
IPH-23B-5-10-11 IPH-56B-64-100-11
IPH-23B-5-13-11 IPH-56B-64-125-11
IPH-23B-5-16-11 IPH-56B-64-80-11
IPH-23B-6.5-10-11 IPH-66B-100-100-11
IPH-23B-6.5-13-11 IPH-66B-100-125-11
IPH-23B-6.5-16-11 IPH-66B-125-125-11
IPH-23B-8-10-11 IPH-66B-80-100-11
IPH-23B-8-13-11 IPH-66B-80-125-11
IPH-23B-8-16-11 IPH-24B-6.5-25-11
