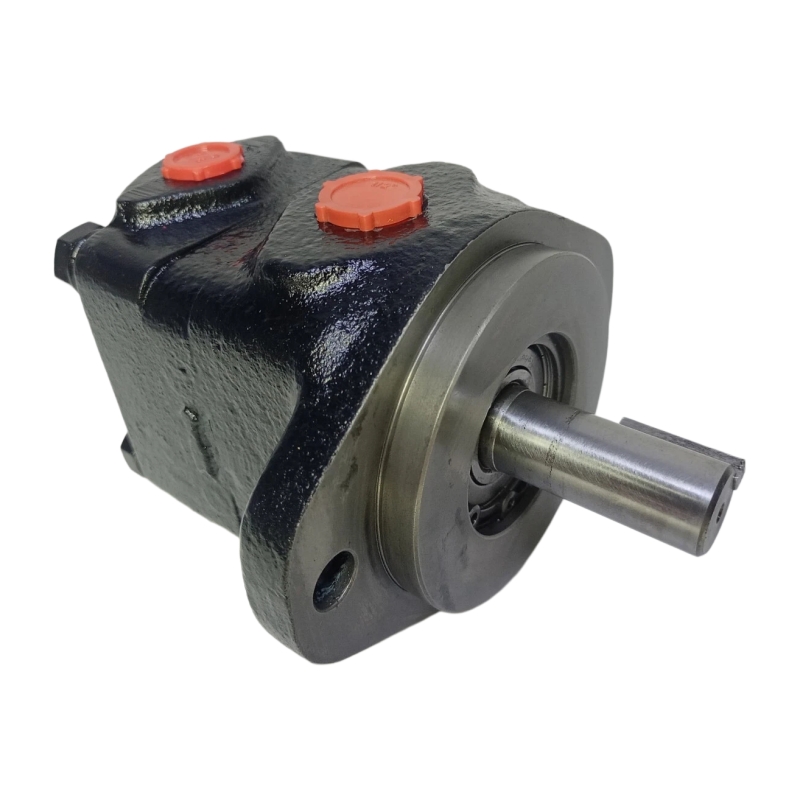

Nachi VS 0B-5-11 Vane Pump
Description:
share:
Nachi VS 0B-5-11 Vane Pump
| Parameter | Specification |
|---|---|
| Model | VS 0B-5-11 |
| Type | Vane Pump |
| Max Pressure | 21 MPa (≈ 3045 PSI) |
| Rated Flow | 11 L/min |
| Max Speed | 3000 rpm |
| Displacement | 5 cm³/rev |
| Port Type | SAE J518, Flange Mount |
| Operating Temperature | -20°C to 80°C |
| Viscosity Range | 10–400 cSt |
| Weight | 4.5 kg |
| Shaft Type | Splined / Keyed |
| Mounting Orientation | Any |
| Noise Level | <75 dB |
