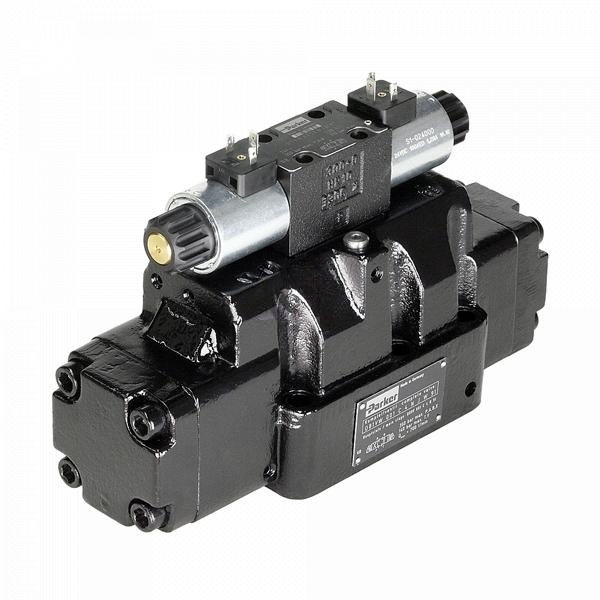

Parker 4D02V Directional Control Valves

Parker 4D02V Directional Control Valves

Description:

Parker 4D02V Directional Control Valves are high-performance hydraulic valves designed to control the direction of fluid flow in hydraulic systems. Manufactured by Parker Hannifin, the 4D02V series offers reliable operation, fast response, and long service life in demanding industrial environments. These valves are widely used in construction machinery, manufacturing equipment, material handling systems, and other hydraulic applications requiring precise directional control.

Parker 4D02V Directional Control Valves

Parameter	Specification
Product Name	Parker 4D02V Directional Control Valve
Valve Type	Solenoid Operated Directional Control Valve
Mounting Type	Subplate / Manifold Mount
Port Size	NG6 / CETOP 03
Maximum Operating Pressure	Up to 350 bar (5075 psi)
Maximum Flow Rate	Up to 60 L/min
Actuation Type	Solenoid
Voltage Options	12V DC / 24V DC / 110V AC / 220V AC
Operating Temperature	-20°C to +70°C
Fluid Type	Mineral-based hydraulic oil
Sealing Material	NBR (Standard)
Response Time	Fast switching response
Installation Position	Optional / Flexible mounting
Application	Industrial hydraulic systems
