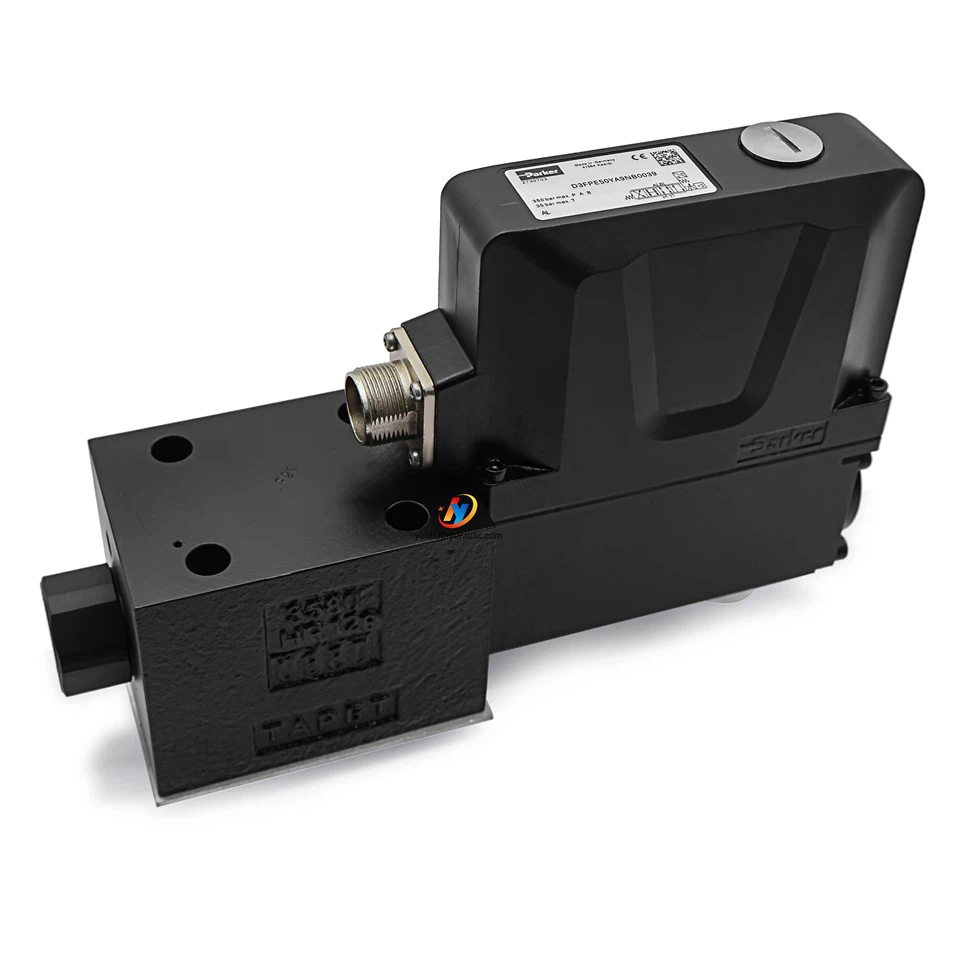

Parker D3FP Series Proportional Directional Control Valve
Description:
share:
Advantages of the Parker D3FP Series Proportional Directional Control Valve
-
Extremely high dynamics: D3FP attains frequency-response comparable to servo valves, enabling rapid and accurate control.
-
High flow & pressure capacity: Capable of handling substantial flow while maintaining stable operation under high pressure.
-
Defined spool position at power-down: On power loss, the spool returns to a predefined safe position (e.g. neutral or defined P/T configuration), enhancing safety and control reliability.
-
Onboard electronics & flexible control signals: Supports common input signals (e.g. +/-10 V), simplifying integration with PLCs or control systems.
-
Standard mounting & fluid compatibility: Built per ISO 4401 / DIN 24340 / CETOP RP121 (NFPA D05) — easy to integrate in standard hydraulic circuits; compatible with hydraulic oils per DIN 51524 / 535 and also water-glycol fluids in certain seal versions.
-
Compact yet robust design: Weighing about 6.5 kg, the D3FP balances compactness with durability, suitable for industrial environments.
| Parameter | Specification / Details |
|---|---|
| Product Type | Direct-operated proportional directional control valve |
| Series | D3FP (NG10 / CETOP 05 / NFPA D05) |
| Manufacturer | Parker |
| Actuation | VCD® actuator (proportional DC valve) |
| Valve Size / Mounting Interface | NG10 / CETOP 05 / ISO 4401 / DIN 24340 / NFPA D05 |
| Maximum Operating Pressure | Up to 350 bar (depending on configuration); commonly 250 bar tank pressure with external drain port Y. |
| Flow Rate / Capacity | Up to ~150 L/min (depending on spool/code) |
| Control Signal Input | Common signals such as ±10 V, 0…+10 V → P-A, also 4…20 mA / 0…20 mA depending on configuration. |
| Seal Options / Fluid Compatibility | NBR (standard), FPM (Viton) or seal versions for water-glycol / HFC fluids. Compatible with hydraulic oils per DIN 51524 / 535 and, for certain seal types, water-glycol. |
| Ambient / Operating Temperature | -20 °C to +50 °C (typical) |
| Mounting Position | Unrestricted |
| Weight | ~6.5 kg (14.3 lbs) |
| Spool / Sleeve Design | Spool / sleeve type construction; spool position at power-down configurable (e.g. center, P-A / B-T, etc.) (帕克液压) |
| Mounting Type | Sub-plate mounting (standard) (帕克液压) |
| Typical Applications | Industrial presses, molding machines, automation & robotics systems, general hydraulic control applications requiring high dynamic response & accuracy. (Yodify) |
