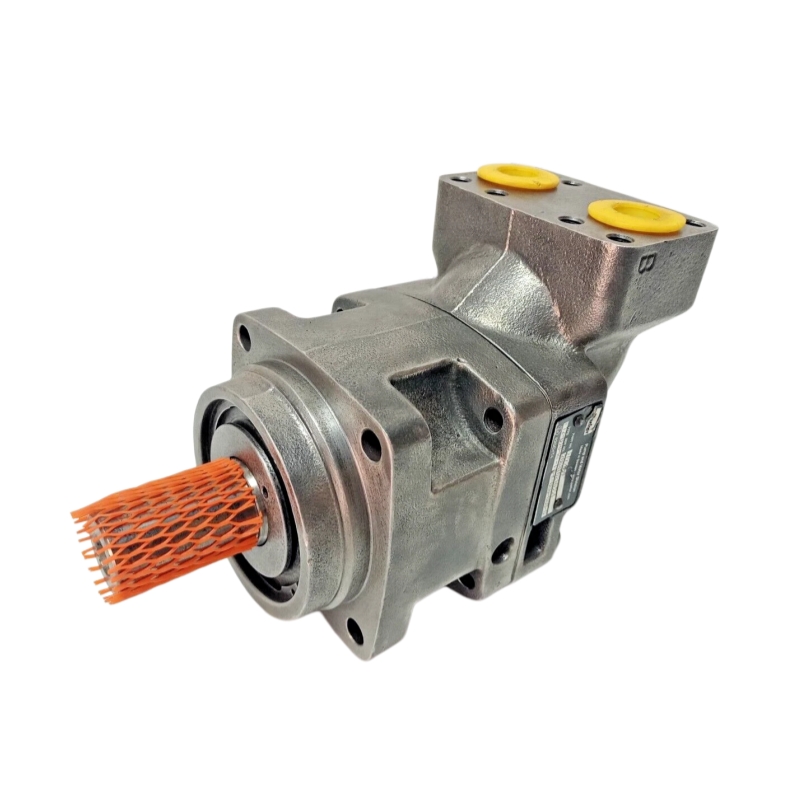

Parker F12-030 Hydraulic Piston Pump
Description:
share:
Parker F12-030 Hydraulic Piston Pump
| Parameter | Specification |
|---|---|
| Model | F12-030 |
| Type | Axial Piston Pump, Fixed Displacement |
| Max Pressure | 250 bar (3625 psi) |
| Max Flow | 30 L/min (7.9 US gpm) |
| Displacement | 30 cm³/rev |
| Speed Range | 600–3000 rpm |
| Shaft Type | Keyed or Splined |
| Port Size | 3/4″ SAE |
| Weight | 15 kg (33 lbs) |
| Fluid | Mineral oil, HLP/HVLP hydraulic fluids |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) |
