Parker Two-Stage Servo Valve BD15 And BD30

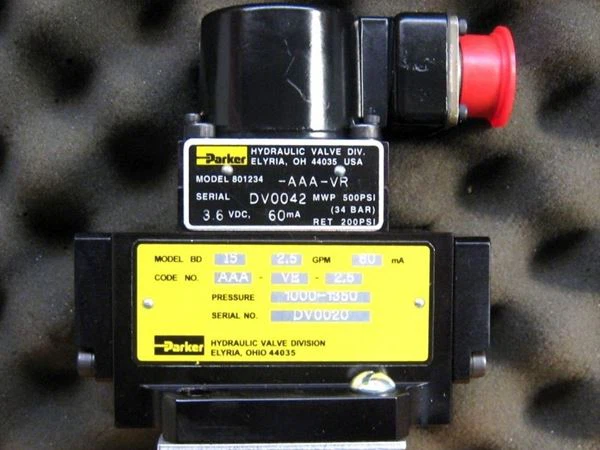

Parker BD15 two-stage servo valve

Description:

The Parker BD15 and BD30 Two-Stage Servo Valves are engineered for high-precision hydraulic control in industrial, aerospace, and test applications. These valves offer rapid response, high stability, and superior linearity for dynamic hydraulic systems. Their two-stage design ensures accurate flow and pressure control, even under high loads, providing exceptional reliability and performance in demanding applications.

share:

Product Details ofParker Two-Stage Servo Valve BD15 And BD30

Advantages of the Parker Two-Stage Servo Valve BD15 And BD30

  1. High Precision Control: Two-stage design ensures precise regulation of flow and pressure.

  2. Fast Dynamic Response: Capable of rapid changes in flow to match system demands accurately.

  3. Robust and Durable: Designed for harsh industrial and aerospace environments.

  4. Wide Flow Range: BD15 and BD30 cover a broad range of flow rates for various system requirements.

  5. Low Hysteresis & High Linearity: Maintains predictable performance across operating ranges.

  6. Flexible Integration: Compatible with multiple control electronics and hydraulic systems.

Parameter BD15 Specification BD30 Specification
Product Type Two-Stage Servo Valve Two-Stage Servo Valve
Manufacturer Parker Hannifin Parker Hannifin
Flow Rate Up to 15 l/min Up to 30 l/min
Operating Pressure Max 210 bar Max 210 bar
Voltage ±10 V input (standard), 4–20 mA optional ±10 V input (standard), 4–20 mA optional
Control Type Two-Stage Electro-Hydraulic Two-Stage Electro-Hydraulic
Frequency Response 200 Hz (typical) 150 Hz (typical)
Temperature Range -20°C to +80°C -20°C to +80°C
Mounting Type Flange, ISO 10372 Flange, ISO 10372
Hysteresis < 1% < 1%
Leakage Rate < 1 drop/min < 1 drop/min
Materials Aluminum or steel body, stainless steel internals Aluminum or steel body, stainless steel internals
Electrical Connection DIN connector or flying leads DIN connector or flying leads
Applications Aerospace, industrial machinery, testing systems Aerospace, industrial machinery, testing systems
Special Features Two-stage spool for precision, fast response Two-stage spool for precision, fast response
