Rexroth 4WSE2EM-6 Hydraulic Servo Valve

Bosch Rexroth 4WSE2EM-6 Hydraulic Servo Valve

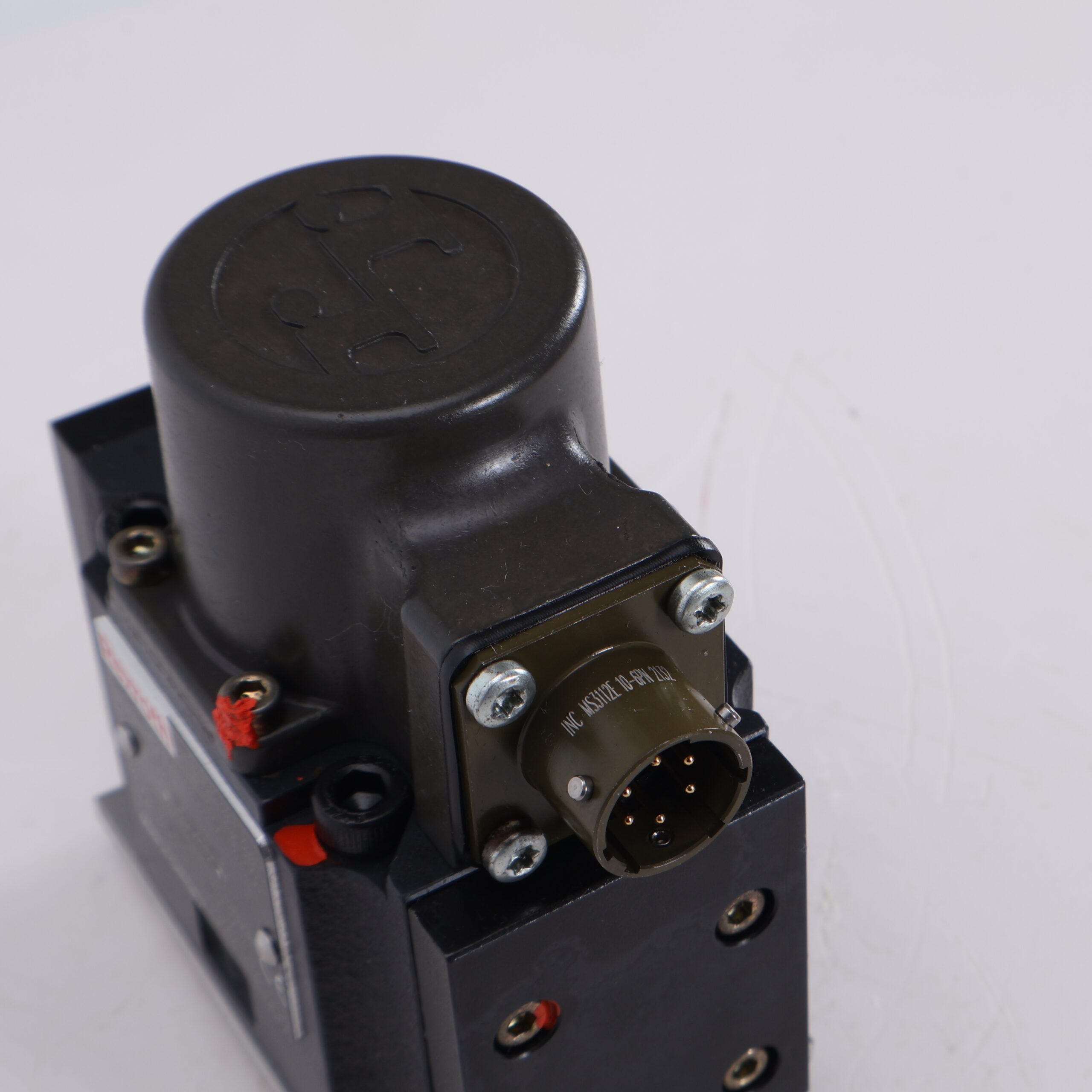

Rexroth 4WSE2EM-6 2-Stage Hydraulic Servo Valve

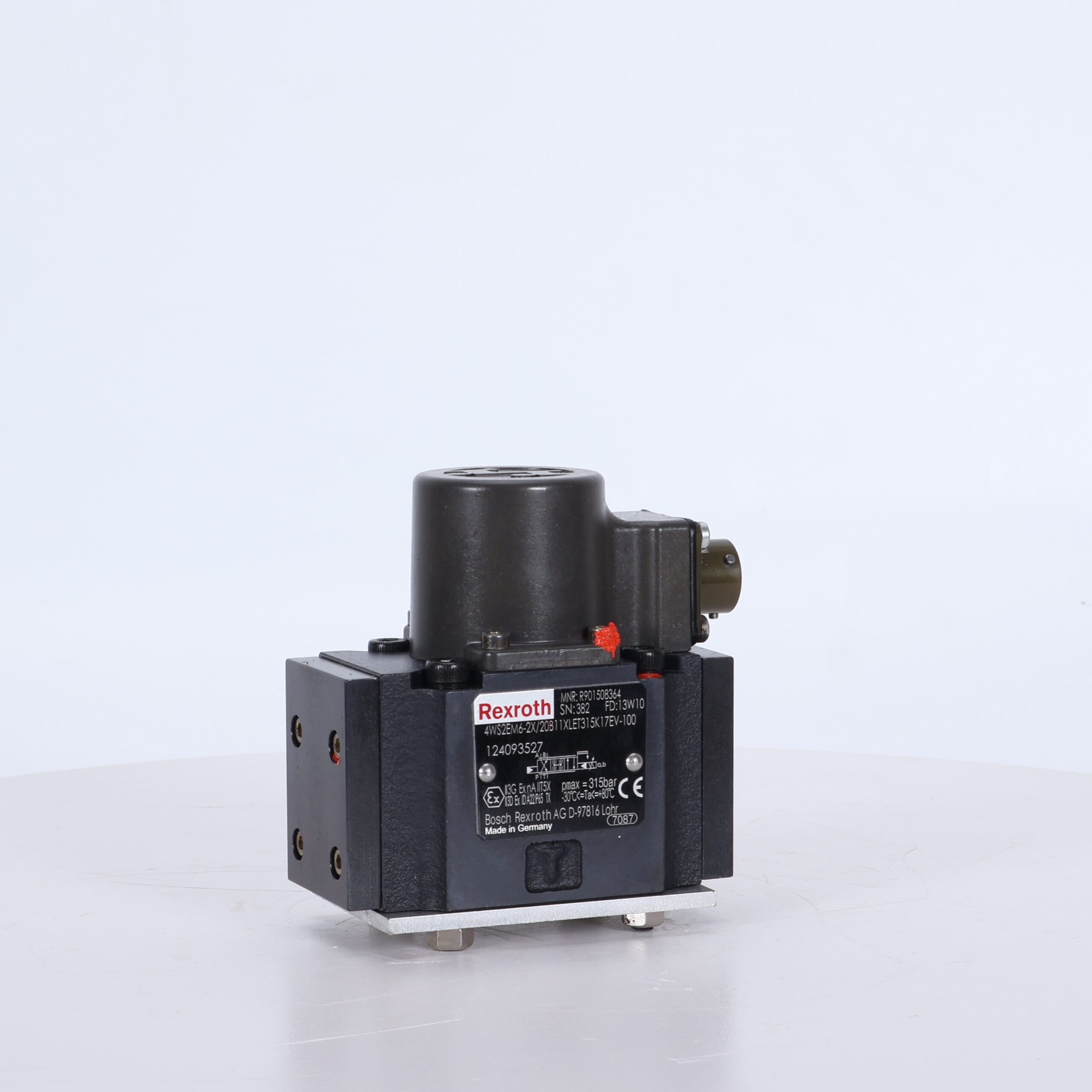

Bosch Rexroth 4WSE2EM-6 Directional Control Servo Valve

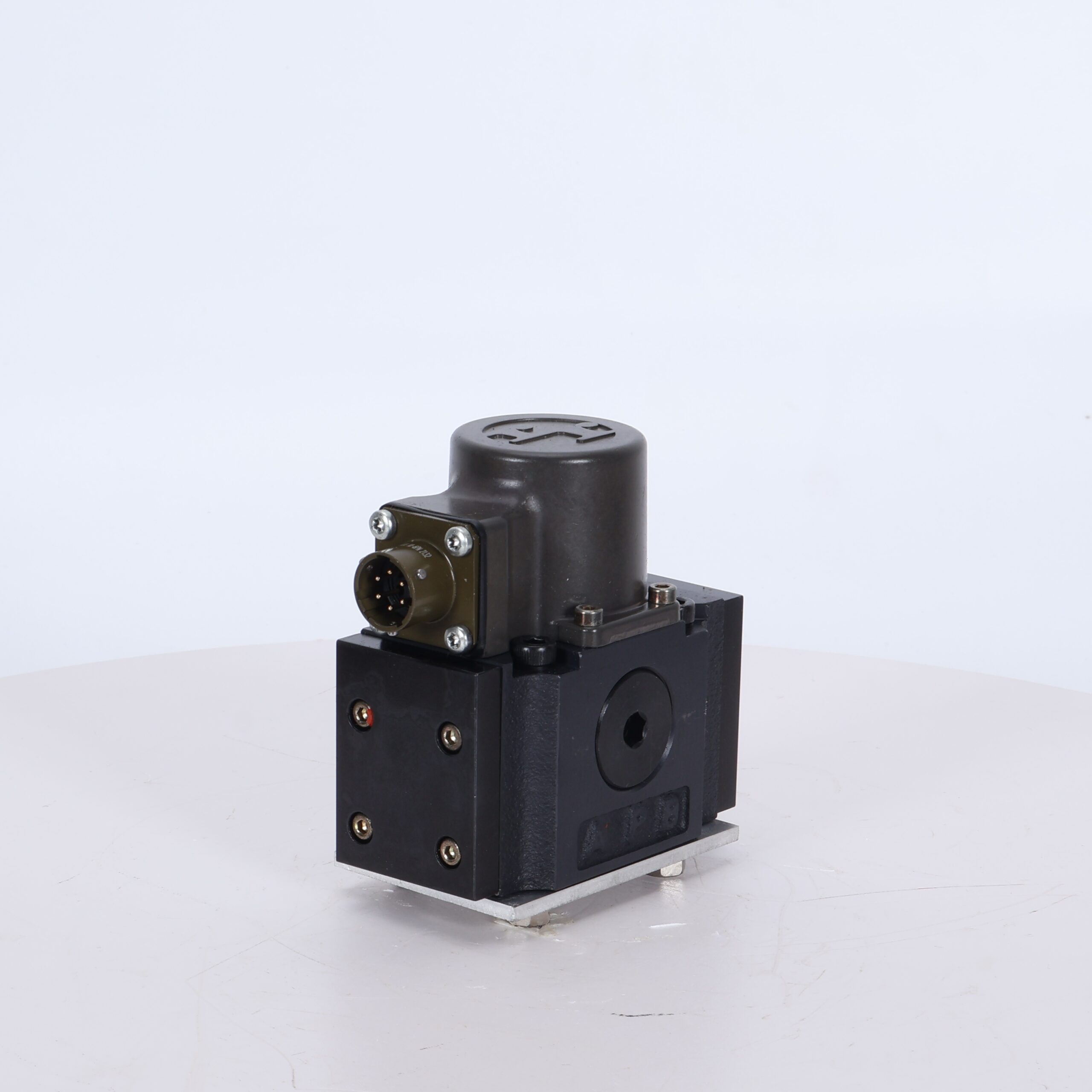

Bosch Rexroth 4WSE2EM-6 Electro-Hydraulic Servo Valve

Description:

The 4WSE2EM6 series from Bosch Rexroth is a 2-stage directional servo valve with mechanical feedback, designed for high-precision hydraulic control of position, force, pressure or velocity. It features a dry torque motor, a nozzle-flapper first stage, and an integrated control electronics (for the “E” variant) mounted on the connector cap of the motor.

share:

YS hydraulic is a leading supplier of hydraulic pumps, valves, and motors, specializing in high-performance solutions for industrial and mobile applications. Our product range includes top brands like Bosch Rexroth, Parker, Moog, and more. With a strong focus on quality and reliability, we provide customers with durable hydraulic systems designed to meet the most demanding requirements. In addition to product supply, we offer comprehensive repair and maintenance services, ensuring optimal performance and minimizing downtime. Our commitment to innovation and customer satisfaction makes us a trusted partner for businesses worldwide.

Hydraulic Pump and Valve Supplier – Reliable Solutions for Industrial and Mobile Applications

Advantages of the Rexroth 4WSE2EM-6 Servo Valve

  • High precision & control — The servo valve uses a torque motor driving a nozzle-flapper amplifier, which then drives the main spool with mechanical feedback until equilibrium is achieved. This ensures that spool position (and thus flow/actuation) is proportional to the electrical command input.

  • Fast dynamic response — Because of the 2-stage construction and the design of the dry control motor, the valve is capable of high responsiveness and fine modulation of hydraulic flow/direction.

  • Reduced contamination risk & improved reliability — The dry torque motor prevents hydraulic fluid contamination of the solenoid gaps, which enhances reliability and durability in industrial hydraulic environments.

  • Integrated electronics version available — The “E” variant (4WSE2EM6) has integrated control electronics adjusted and tested for the valve, simplifying installation and setup by reducing the need for external amplifier modules.

  • Flexible mounting and subsystem compatibility — With porting per ISO 4401 and ability for 3-way or 4-way use (depending version), the valve can adapt to different hydraulic system layouts and applications.

  • Long service life and low maintenance — Features such as a wear-free control spool return element, accessible first-stage filters, and gap-sealed pressure chambers (reducing wear on seal rings) all contribute to lower maintenance and better longevity.
