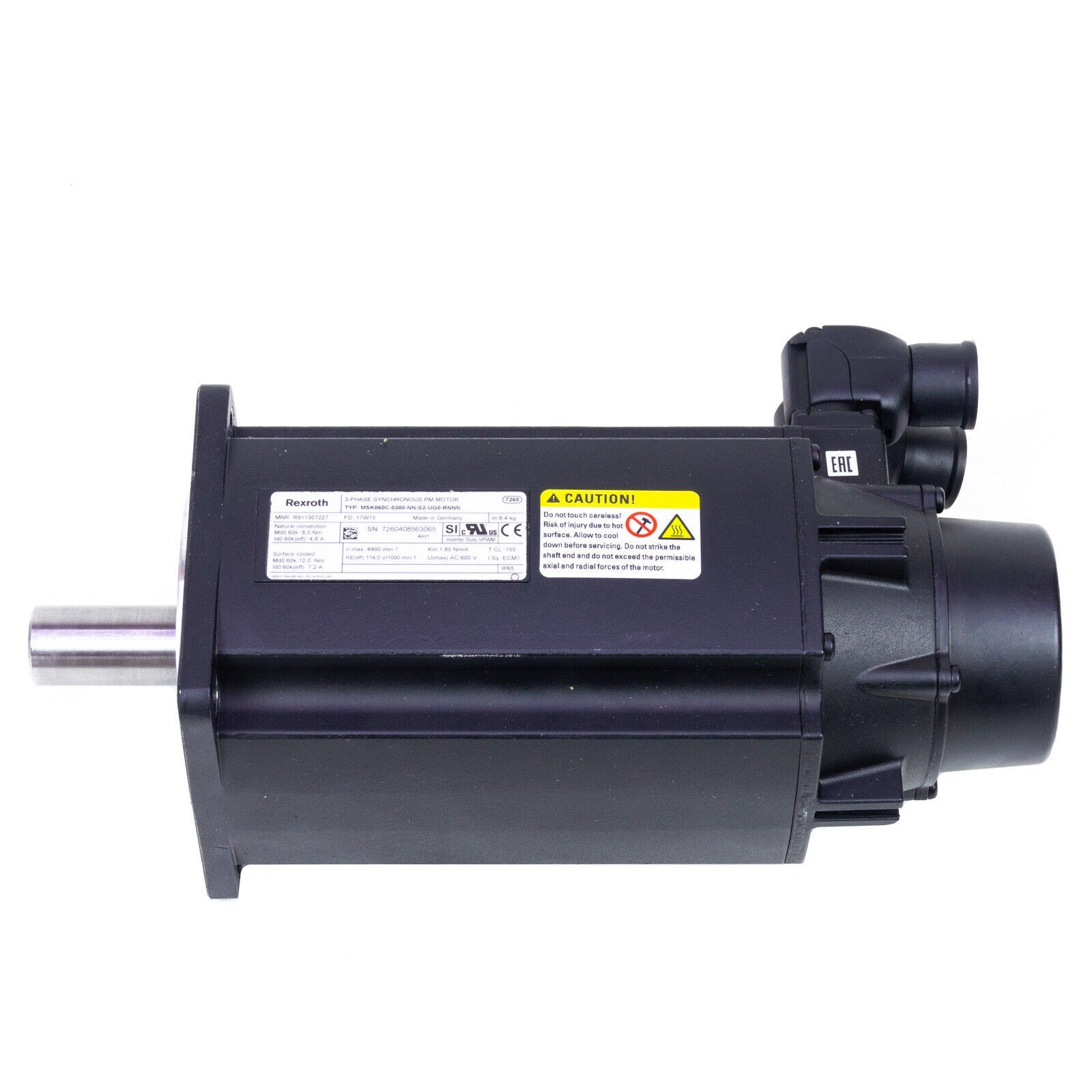

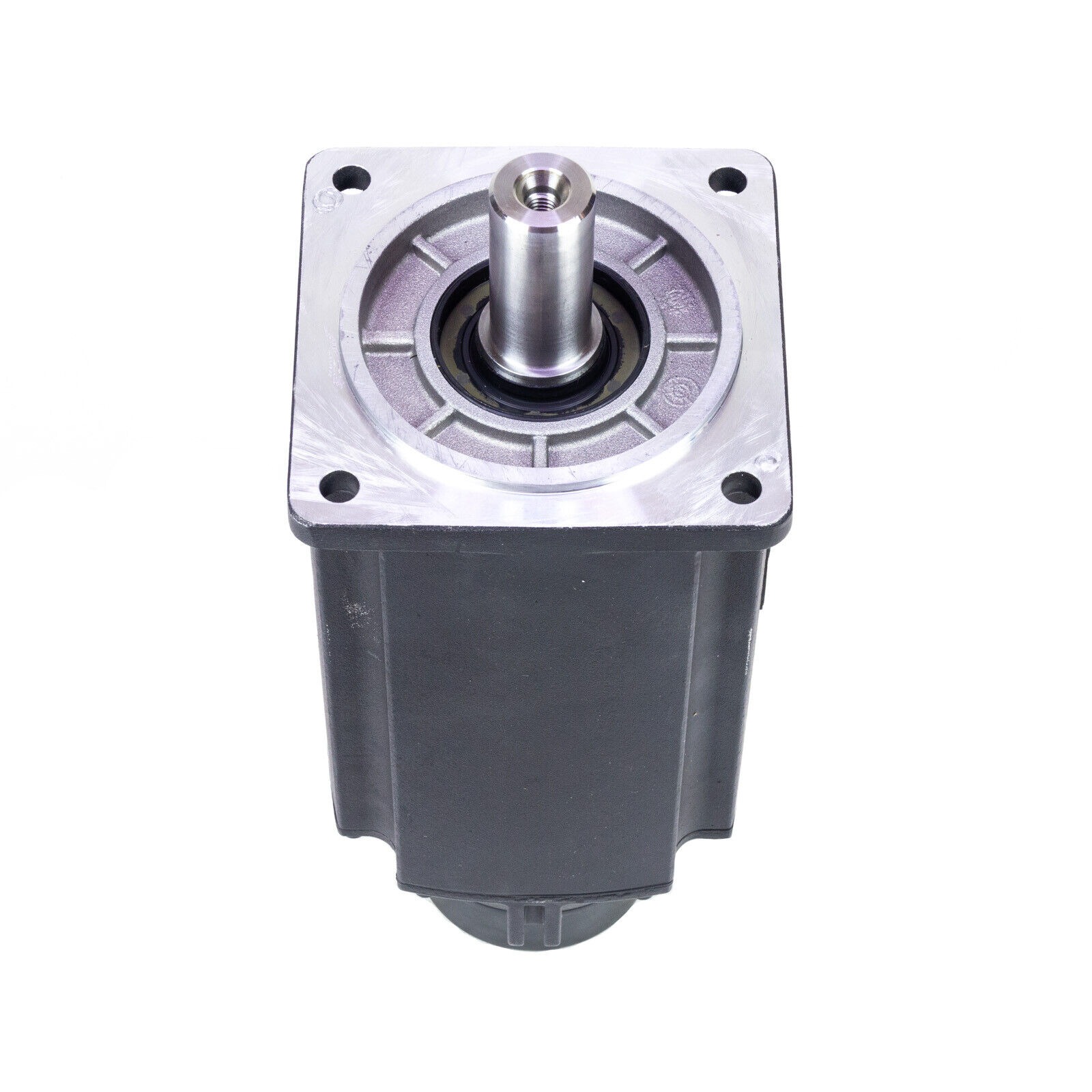

Rexroth MSK060C Hydraulic Servo Motor

Rexroth MSK060C precision industrial motor
MSK060C IndraDyn S compact high-torque motor
Bosch Rexroth MSK060C high-performance servo motor

Description:

The Rexroth MSK060C motor is a compact, high-performance servo motor designed for precision motion control in industrial automation systems. Known for its robust design, high torque density, and efficient operation, the MSK060C delivers consistent performance across a wide range of applications, from CNC machines to robotic assembly lines.

share:

Key Function of Rexroth MSK060C Hydraulic Servo Motor

Parameter / Feature Specification / Value
Motor Series / Type IndraDyn S synchronous servo motor
Frame Size / Length 060, Length C
Maximum (Peak) Torque 24.0 Nm
Continuous Standstill Torque / Current (natural cooling) 8.8 Nm @ 5.3 A (100 K)
Continuous Standstill Torque / Current (surface cooling) Up to ~12.0 Nm @ ~7.2 A
Maximum Speed Up to 6,000 rpm (depending on winding/variant)
Torque Constant 0.93 Nm/A (for 0600-winding variant)
Winding Resistance (20 °C) ~0.8 Ω (for 0600-winding)
Rotor Inertia 0.0008 kg·m²
Encoder Optical absolute multiturn encoder (e.g. EnDat / Hiperface), high resolution and precision (± 20 angular seconds)
Shaft Type / Output Plain shaft, with frontal centering hole per DIN 332; shaft sealing ring option; suitable for direct coupling.
Protection / Construction IP65 rated housing (dust & splash resistant), thermal class T.CL.‑155
Ambient Operating Conditions 0°–40 °C, humidity up to 95% (depending on variant)
