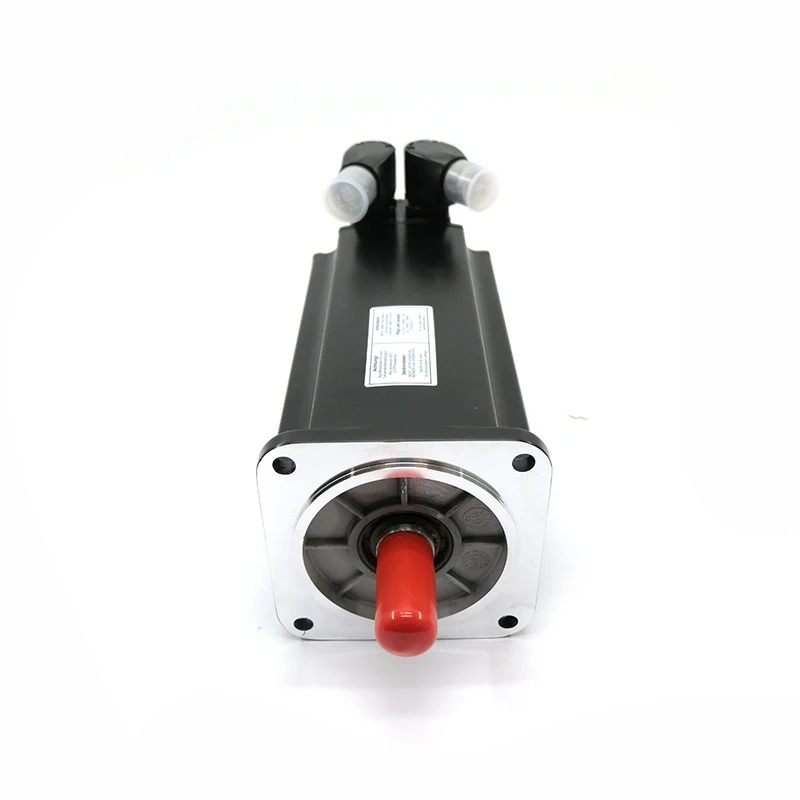

Rexroth MSK061C Servo Motor

Rexroth MSK061C precision industrial motor
MSK061C IndraDyn S compact high-torque motor
Bosch Rexroth MSK061C high-performance servo motor

Description:

The Rexroth MSK061C is a high‑performance synchronous servomotor from the MSK (IndraDyn S) series — engineered for precision motion control, automation, CNC, robotics, and industrial applications. Compact in size yet capable of delivering up to 32 Nm peak torque, it balances robust power output with a compact frame. With its optical absolute encoder (Hiperface interface), IP65 protection, and natural or surface cooling options, the MSK061C offers reliability, accuracy, and durability for demanding drive and control systems.

share:

Key Features of Rexroth MSK061C Servo Motor

Parameter / Feature Value / Specification
Continuous torque at standstill (60 K) 8.0 Nm
Continuous current at standstill (60 K) 7.7 A
Continuous torque at standstill (100 K) 9.0 Nm
Optional surface‑cooling standstill torque up to 12.0 Nm (surface cooled)
Maximum (peak) torque 32.0 Nm
Maximum current (eff) 34.7 A
Torque constant (at 20 °C) 1.14 Nm/A (for 0600 version)
Voltage constant (at 20 °C) 70.5 V / 1000 rpm (for 0600 version)
Winding resistance (20 °C) 1.55 Ω (0600 version)
Winding inductance 6.7 mH (0600 version)
Rotor moment of inertia (no brake) 0.00075 kg·m²
Thermal time constant 15.0 min (natural cooling)
Maximum speed 6000 rpm (depending on winding/version)
Protection class IP65 (dust tight, protected against water jets)
Ambient operating temperature 0 … 40 °C
Sound pressure level < 75 dB(A)
Encoder Optical multiturn absolute encoder, Hiperface interface, 128 signal periods (for standard MSK061C variants)
Encoder connector Rotatable (240°) — facilitates flexible cable routing
Weight (approx.) ~ 8.3 kg (varies with configuration)
