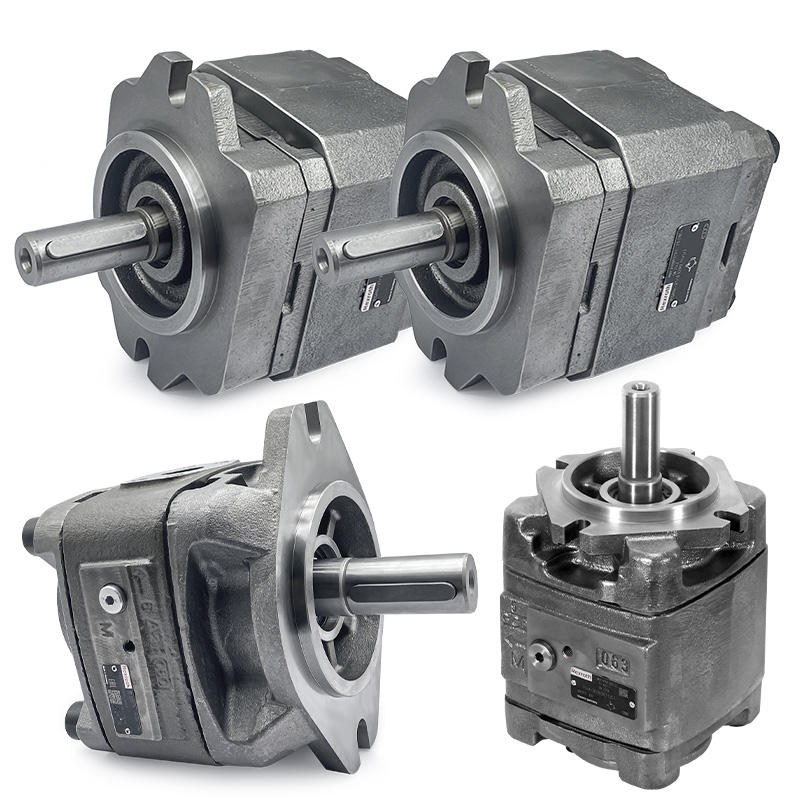

Rexroth PGH Gear Pump
Description:
share:
Rexroth PGH Gear Pump
| Parameter | Specification |
|---|---|
| Model | PGH Series |
| Pump Type | External Gear Pump |
| Displacement | 2 – 45 cm³/rev |
| Maximum Pressure | 250 bar |
| Maximum Speed | 4000 rpm |
| Flow Rate | 0.12 – 180 L/min |
| Fluid Type | Hydraulic oil, HLP/HLV standard |
| Fluid Viscosity | 10 – 500 mm²/s |
| Mounting Type | SAE, Flange Mount |
| Shaft Type | Straight or splined |
| Operating Temperature | -20°C to 80°C |
| Weight | 5 – 25 kg (depending on size) |
