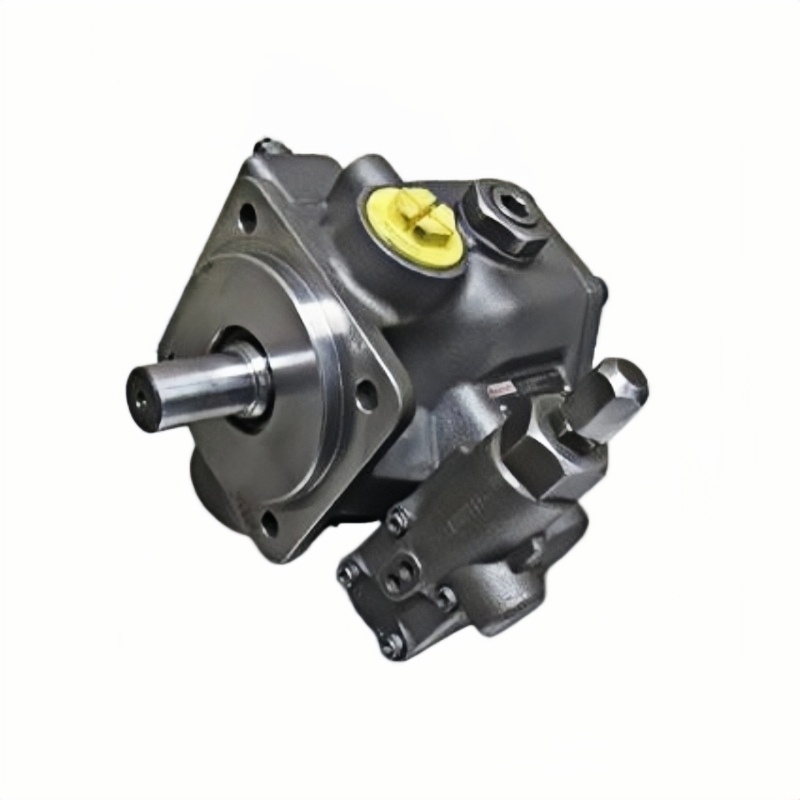

Rexroth PV7-17 Hydraulic Variable Vane Pump
Description:
share:
Rexroth PV7-17 Hydraulic Variable Vane Pump
| Parameter | Specification |
|---|---|
| Model | PV7-17 |
| Type | Variable Vane Pump |
| Displacement | 17 cm³/rev |
| Operating Pressure (Max) | 160 bar |
| Peak Pressure | 210 bar |
| Speed Range | 600 – 1800 rpm |
| Mounting Type | Flange Mount |
| Rotation Direction | Clockwise / Counterclockwise |
| Fluid Type | Mineral Oil (HL, HLP) |
| Viscosity Range | 10 – 100 mm²/s |
| Operating Temperature | -10°C to +80°C |
| Noise Level | Low Noise Design |
| Control Type | Pressure Compensated |
| Efficiency | High Volumetric Efficiency |
| Applications | Industrial Hydraulic Systems |
