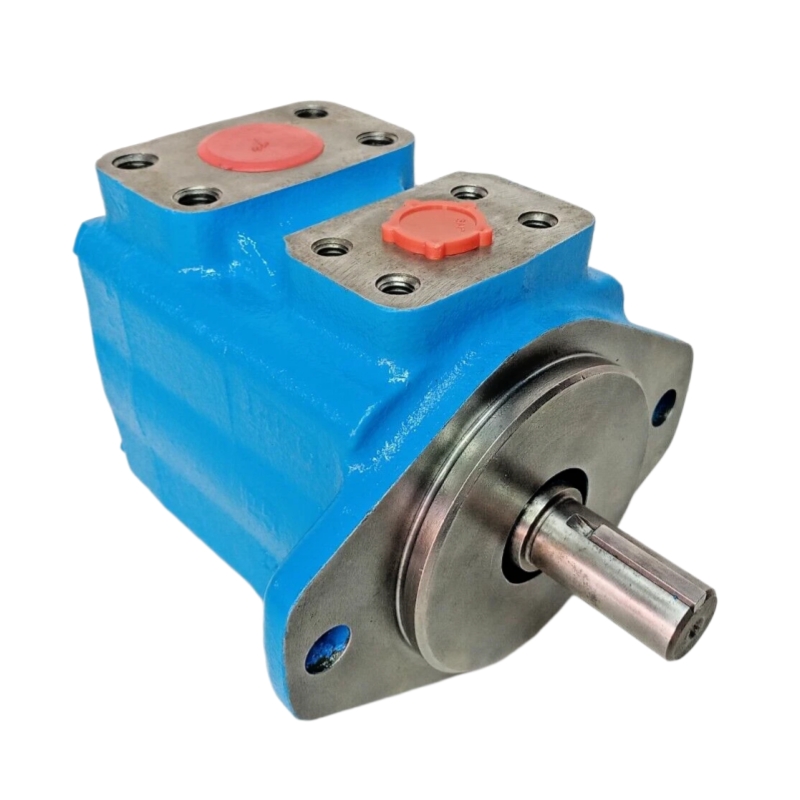

Vickers 25V12A Hydraulic Vane Pump
Description:
share:
Vickers 25V12A Hydraulic Vane Pump
| Parameter | Specification |
|---|---|
| Model | 25V12A |
| Pump Type | Fixed Displacement Vane Pump |
| Displacement | 12 GPM (approx. 45.4 L/min) |
| Maximum Pressure | 172 bar (2500 psi) |
| Rated Speed Range | 600 – 1800 RPM |
| Rotation | Clockwise (viewed from shaft end) |
| Mounting Type | Flange Mount |
| Shaft Type | Keyed Shaft |
| Port Type | Threaded Ports |
| Fluid Type | Mineral Hydraulic Oil |
| Operating Temperature | -20°C to +80°C |
| Efficiency | High volumetric efficiency |
| Noise Level | Low noise operation |
| Application | Industrial & Mobile Hydraulic Systems |
