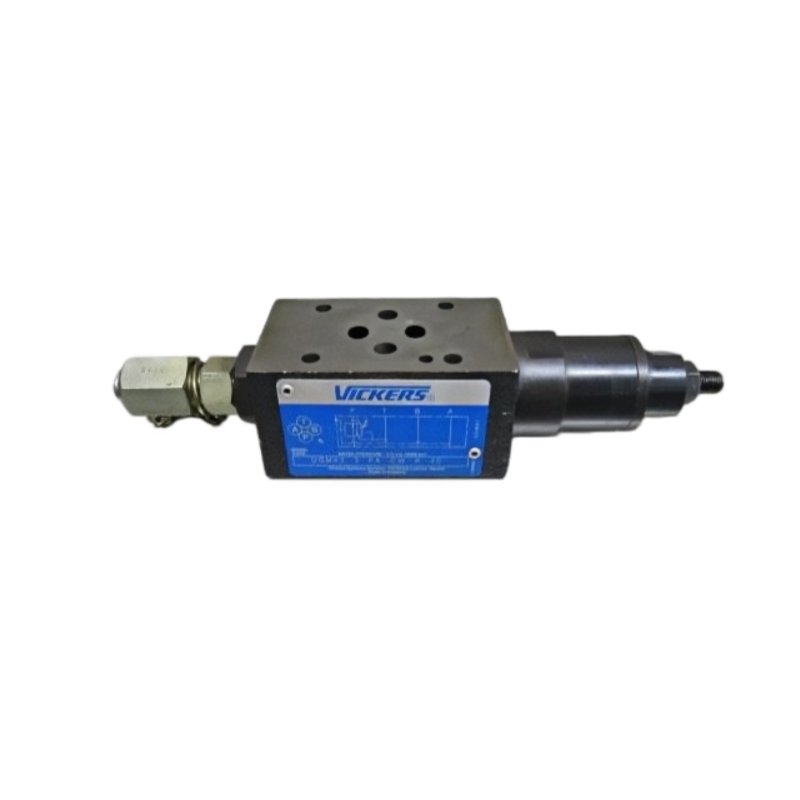

Vickers DGMX2 Hydraulic Pressure Reducing Control Valve

Vickers DGMX2 Hydraulic Pressure Reducing Control Valve

Description:

The Vickers DGMX2 Hydraulic Pressure Reducing Control Valve is a high-performance modular valve designed to precisely regulate and maintain reduced pressure in specific sections of hydraulic systems. Manufactured with advanced engineering standards, this valve ensures stable downstream pressure regardless of fluctuations in the main system line. Its compact sandwich plate design allows easy installation in stack systems, making it ideal for industrial and mobile hydraulic applications requiring consistent pressure control, improved safety, and enhanced system efficiency.

share:

Vickers DGMX2 Hydraulic Pressure Reducing Control Valve

Parameter Specification
Model DGMX2
Type Pressure Reducing Control Valve
Mounting Style Sandwich Plate (Modular)
Maximum Operating Pressure Up to 350 bar (5075 psi)
Pressure Adjustment Range Adjustable (depending on variant)
Flow Rate Up to 60 L/min (15.8 US gpm)
Control Type Direct Acting / Pilot Operated
Port Standard ISO 4401 / CETOP 03
Fluid Type Mineral-based hydraulic oil
Temperature Range -20°C to +70°C
Sealing Material NBR / Viton (optional)
Installation Position Optional (horizontal/vertical)
Weight Approx. 1.5 – 2.0 kg
