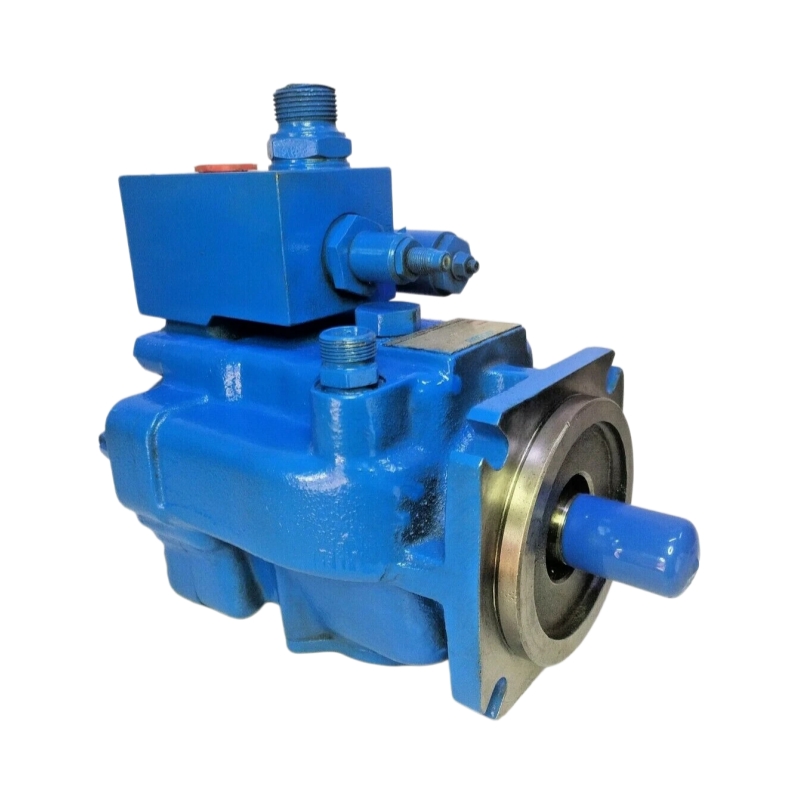

Vickers PVH57QIC Hydraulic Piston Pump
Description:
share:
Vickers PVH57QIC Hydraulic Piston Pump
| Parameter | Specification |
|---|---|
| Model | PVH57QIC |
| Pump Type | Axial Piston Pump (Variable Displacement) |
| Displacement | 57 cc/rev |
| Maximum Pressure | 250 bar (continuous), 280 bar (peak) |
| Rated Speed | Up to 3000 rpm |
| Control Type | Pressure/Flow Compensator |
| Rotation | Right-hand (standard) |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Fluid Type | Mineral-based hydraulic oil |
| Operating Temperature | -20°C to +80°C |
| Filtration Requirement | ISO 4406 18/16/13 or better |
| Efficiency | High volumetric and mechanical efficiency |
| Noise Level | Low noise design |
