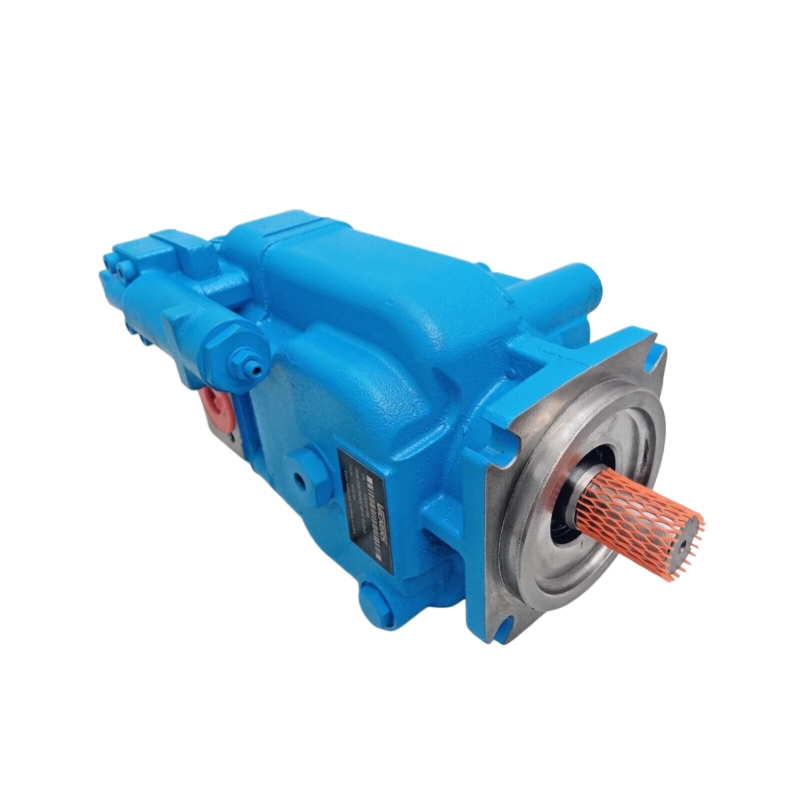

Vickers PVH74QIC Variable Piston Pump
Description:
share:
Vickers PVH74QIC Variable Piston Pump
| Parameter | Specification |
|---|---|
| Pump Type | Variable displacement axial piston pump |
| Series | PVH74QIC |
| Displacement | 73.7 cm³/rev (4.5 in³/rev) |
| Rated Speed | 1800 rpm (typical for QIC) |
| Max Pressure | Up to 250 bar (3625 psi) |
| Pressure Adjustment Range | 70–250 bar (standard compensator) |
| Flow Rate | Approx. 126–139 L/min @ 1800 rpm |
| Control Type | Pressure compensator (C / IC optional) |
| Mounting Type | SAE “C” 4-bolt flange |
| Shaft Type | Keyed or splined options |
| Rotation | Clockwise / Counterclockwise |
| Port Type | SAE flange ports |
| Weight | ~99 lbs (45 kg) |
| Application | Industrial hydraulic systems |
