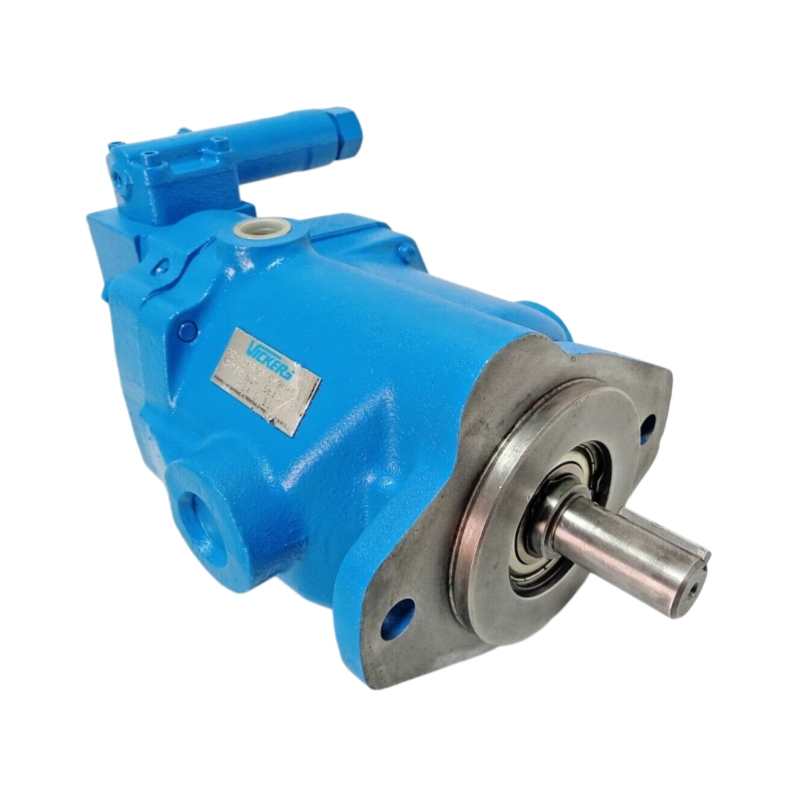

Vickers PVQ32 Piston Pump
| Parameter | Specification |
|---|---|
| Pump Type | Variable Displacement Axial Piston Pump |
| Series | PVQ (Quiet Series) |
| Displacement | 32.9 cc/rev (2.01 in³/rev) |
| Maximum Pressure | 140 bar (2000 psi) |
| Peak Pressure | 140 bar |
| Maximum Speed | 1800 rpm |
| Flow Rate | Approx. 15 GPM |
| Control Type | Pressure Compensator |
| Mounting Type | SAE B 2-bolt flange |
| Shaft Type | Keyed or Splined |
| Port Type | SAE O-ring (Side/Rear options) |
| Rotation | Right-hand (standard) |
| Noise Level | ~71 dB |
| Case Pressure (Max) | 0.35 bar |
| Fluid Compatibility | Mineral oil, synthetic, water-glycol, phosphate ester |
| Housing Material | Cast Iron |
| Operating Temperature | Up to 130°F |
| Application | Industrial hydraulic systems |
