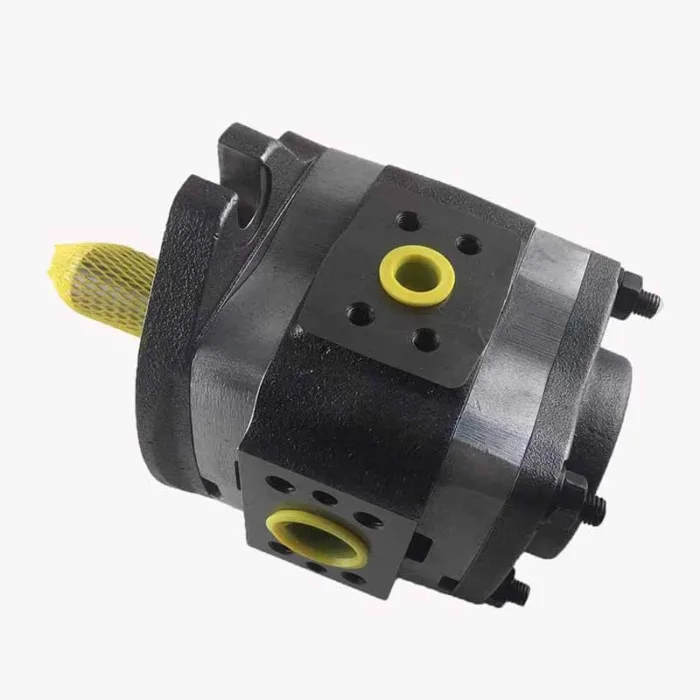

VOITH IPV-3-8-100 Gear Pump

VOITH IPV-3-8-100 Gear Pump

Description:

VOITH adheres to stringent quality control measures to ensure the reliability and performance of the IPV-3-8-100 gear pump

share:

Product Details ofVOITH IPV-3-8-100 Gear Pump

VOITH IPV-3-8-100 High pressure internal gear pump

Core parameters

Project parameter specification
Model number IPV-3-8-100
Displacement 8.2cm ³/rev (±2% tolerance)
Maximum working pressure 34.5MPa (continuous condition)
Speed range 400-3600 r/min
Rotation direction axis end turn right (support custom left)
Control mode Pressure compensation closed loop control
Shell material EN-GJL-250 high strength gray cast iron
Volume efficiency ≥ 93%@20MPa
Applicable medium ISO VG 32-68 hydraulic oil
Technical highlights
✔ Ultra-high pressure design
Adopt double circular arc tooth shape + three-dimensional compensation structure, achieve 34.5MPa continuous pressure output, instantaneous pressure resistance up to 42MPa

✔ Intelligent pressure compensation
Automatic flow-pressure matching with integrated compensation valve reduces system energy consumption by 18-25% (compared to conventional quantitative pumps)

✔ Wide range speed adaptation
The patented bearing system supports 400-3600r/min stepless transmission to meet the requirements of variable frequency drive

✔ Industrial reliability

20,000 hours MTBF certification (ISO 281 standard)

Hardened gear surface treatment (HV≥850)

IP65 protection rating

Industry solutions
▶ Metal forming field

Suitable for 3000T hydraulic punching machine main pump

With proportional valve to achieve ±0.5% pressure control accuracy

▶ Rubber and plastic machinery application

Energy saving transformation of core power unit of injection molding machine

Support PV= pressure x flow constant control mode

▶ Construction machinery supporting

Mobile hydraulic station ideal

Passed MIL-STD-810G vibration shock test

Quality control system
Three level quality assurance process:

Incoming material testing: spectral analysis to verify material composition

Process control:

Laser on-line monitoring of gear pair meshing clearance

Compensation valve dynamic characteristic test (100% full test)

Factory test:

72-hour endurance test (full load cycle)

Noise level ≤72dB(A) @1500r /min

Service support
★ 18 months warranty period
★ Global 4-hour emergency response network
★ Free hydraulic system adaptation scheme
