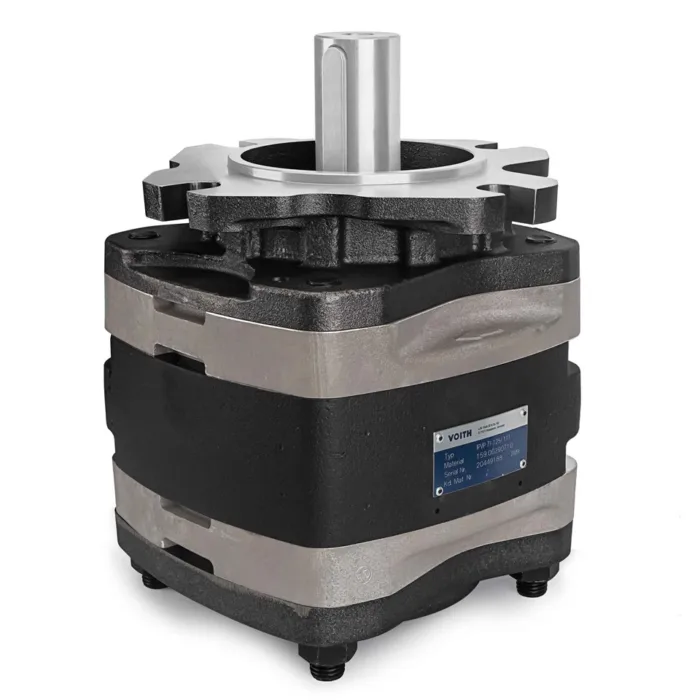

VOITH IPVP 3-3.5-101 Internal Gear Pump
Product Details ofVOITH IPVP 3-3.5-101 Internal Gear Pump
VOITH IPVP 3-3.5-101 Internal Gear Pump
Product Description
The VOITH IPVP 3-3.5-101 Internal Gear Pump is a high-performance hydraulic gear pump designed for variable speed drives. This model is renowned for its efficiency, durability, and low-noise operation. Engineered with precision, it is an ideal solution for a variety of industrial applications requiring reliable and consistent hydraulic performance.
Product Introduction
The VOITH IPVP 3-3.5-101 features a compact design with a displacement of 3.6 cc/rev. It operates at a maximum working pressure of 33.0 MPa and a shaft speed range of 400 to 3600 r/min. Designed for right-hand rotation from the shaft end, this gear pump incorporates a pressure compensator control type, ensuring optimal performance under varying operational conditions. Constructed from robust cast iron, the IPVP 3-3.5-101 guarantees longevity and reliability even in demanding environments.
Product Features
High Efficiency: With a displacement of 3.6 cc/rev, it delivers consistent hydraulic output.
Robust Construction: Made from durable cast iron, ensuring long-term reliability.
Pressure Compensator Control: Maintains optimal performance across a range of pressures.
Wide Speed Range: Operates efficiently between 400 and 3600 r/min.
Low Noise Operation: Reduced noise emissions, enhancing workplace comfort.
Precision Engineering: Ensures smooth and reliable performance, minimizing maintenance requirements.
Specifications
Type: Gear Pump
Max Displacement: 3.6 cc/rev
Speed Range: 400 to 3600 r/min
Continuous Pressure: 330 bar
Peak Pressure at 1500 min⁻¹: 345 bar
Moment of Inertia: 0.34 kg cm²
Material: Cast Iron
Rotation: Right from shaft end
Control Type: Pressure Compensator Control
Product FAQ
Q: What applications are suitable for the VOITH IPVP 3-3.5-101? A: This gear pump is ideal for applications requiring variable speed drives and high efficiency, such as hydraulic presses, injection molding machines, and metal forming equipment.
Q: How does the pressure compensator control benefit my system? A: The pressure compensator control maintains optimal performance by adjusting the pump’s output based on system pressure, ensuring efficient operation and energy savings.
Q: What maintenance is required for this pump? A: Regular maintenance includes monitoring oil cleanliness, inspecting seals and bearings, and ensuring the pump operates within specified parameters to extend its lifespan and maintain performance.
