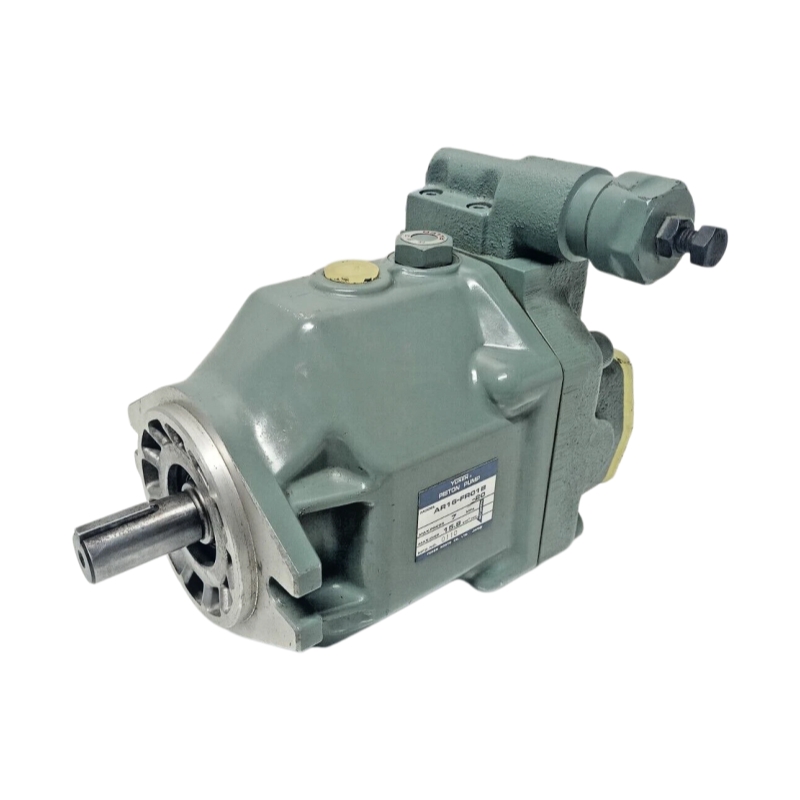

YUKEN AR16 Variable Piston Pump

YUKEN AR16 Variable Piston Pump

Description:

The YUKEN AR16 Variable Piston Pump is a high-performance, energy-efficient hydraulic pump designed for industrial applications requiring precise flow control and stable pressure output. Featuring a variable displacement mechanism, the AR16 pump automatically adjusts flow according to system demand, reducing energy consumption and improving overall system efficiency. It is widely used in machine tools, injection molding machines, and industrial automation systems.

YUKEN AR16 Variable Piston Pump

Parameter	Specification
Model	AR16
Pump Type	Variable Displacement Piston Pump
Displacement	16 cm³/rev
Maximum Pressure	16 MPa (160 bar)
Peak Pressure	21 MPa (210 bar)
Speed Range	600 – 1800 rpm
Mounting Type	Flange Mount
Rotation Direction	Right-hand (standard)
Control Type	Pressure Compensated
Hydraulic Fluid	Mineral Oil
Operating Temperature	0°C – 60°C
Efficiency	High volumetric efficiency
Noise Level	Low noise design
Application	Industrial hydraulic systems
