Yuken HCT-10-N-4-P-22 Pressure Control Valves

Yuken pressure control valve

Description:

The Yuken HCT-10-N-4-P-22 Pressure Control Valve by YsHydraulic is engineered for high-performance hydraulic systems. Designed to maintain consistent system pressure and protect equipment from overload, this valve ensures precise flow control and optimal operational efficiency. Its durable construction and compact size make it ideal for industrial machinery, construction equipment, and injection molding applications.

share:

Yuken HCT-10-N-4-P-22 Pressure Control Valves

Product Name: Yuken HCT-10-N-4-P-22 Pressure Control Valve
Type: Hydraulic Pressure Control Valve
Model: HCT-10-N-4-P-22
Max Operating Pressure: 31.5 MPa (4565 psi)
Rated Flow: 10 L/min
Operating Temperature Range: -20°C to 80°C (-4°F to 176°F)
Material: High-strength steel & precision alloy components
Connection Type: Standard porting (SAE/ISO compatible)
Function: Maintains stable pressure in hydraulic systems, protects equipment from overpressure, ensures precise flow control
Applications: Industrial machinery, hydraulic presses, injection molding machines, construction equipment

Features:

  • Compact and robust design

  • High reliability and precision

  • Adjustable pressure range

  • Low hysteresis and fast response

  • Long service life with minimal maintenance

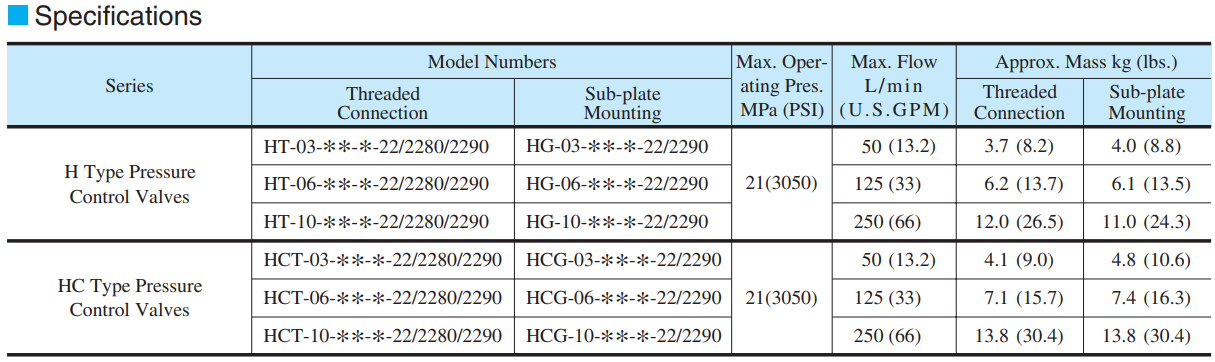

Yuken HCT series hydraulic pressure valve

Yuken H/HC Series Pressure Control Valves Model List:
HT-03-A-1-P-22 HCG-03-A-1-P-22
HT-03-A-2-P-22 HCG-03-A-2-P-22
HT-03-A-3-P-22 HCG-03-A-3-P-22
HT-03-A-4-P-22 HCG-03-A-4-P-22
HT-03-B-1-P-22 HCG-03-B-1-P-22
HT-03-B-2-P-22 HCG-03-B-2-P-22
HT-03-B-3-P-22 HCG-03-B-3-P-22
HT-03-B-4-P-22 HCG-03-B-4-P-22
HT-03-C-1-P-22 HCG-03-C-1-P-22
HT-03-C-2-P-22 HCG-03-C-2-P-22
HT-03-C-3-P-22 HCG-03-C-3-P-22
HT-03-C-4-P-22 HCG-03-C-4-P-22
HT-03-L-1-P-22 HCG-03-L-1-P-22
HT-03-L-2-P-22 HCG-03-L-2-P-22
HT-03-L-3-P-22 HCG-03-L-3-P-22
HT-03-L-4-P-22 HCG-03-L-4-P-22
HT-03-N-1-P-22 HCG-03-N-1-P-22
HT-03-N-2-P-22 HCG-03-N-2-P-22
HT-03-N-3-P-22 HCG-03-N-3-P-22
HT-03-N-4-P-22 HCG-03-N-4-P-22
HT-06-A-1-P-22 HCG-06-A-1-P-22
HT-06-A-2-P-22 HCG-06-A-2-P-22
HT-06-A-3-P-22 HCG-06-A-3-P-22
HT-06-A-4-P-22 HCG-06-A-4-P-22
HT-06-B-1-P-22 HCG-06-B-1-P-22
HT-06-B-2-P-22 HCG-06-B-2-P-22
HT-06-B-3-P-22 HCG-06-B-3-P-22
HT-06-B-4-P-22 HCG-06-B-4-P-22
HT-06-C-1-P-22 HCG-06-C-1-P-22
HT-06-C-2-P-22 HCG-06-C-2-P-22
HT-06-C-3-P-22 HCG-06-C-3-P-22
HT-06-C-4-P-22 HCG-06-C-4-P-22
HT-06-L-1-P-22 HCG-06-L-1-P-22
HT-06-L-2-P-22 HCG-06-L-2-P-22
HT-06-L-3-P-22 HCG-06-L-3-P-22
HT-06-L-4-P-22 HCG-06-L-4-P-22
HT-06-N-1-P-22 HCG-06-N-1-P-22
HT-06-N-2-P-22 HCG-06-N-2-P-22
HT-06-N-3-P-22 HCG-06-N-3-P-22
HT-06-N-4-P-22 HCG-06-N-4-P-22
HT-10-A-1-P-22 HCG-10-A-1-P-22
HT-10-A-2-P-22 HCG-10-A-2-P-22
HT-10-A-3-P-22 HCG-10-A-3-P-22
HT-10-A-4-P-22 HCG-10-A-4-P-22
HT-10-B-1-P-22 HCG-10-B-1-P-22
HT-10-B-2-P-22 HCG-10-B-2-P-22
HT-10-B-3-P-22 HCG-10-B-3-P-22
HT-10-B-4-P-22 HCG-10-B-4-P-22
HT-10-C-1-P-22 HCG-10-C-1-P-22
HT-10-C-2-P-22 HCG-10-C-2-P-22
HT-10-C-3-P-22 HCG-10-C-3-P-22
HT-10-C-4-P-22 HCG-10-C-4-P-22
HT-10-L-1-P-22 HCG-10-L-1-P-22
HT-10-L-2-P-22 HCG-10-L-2-P-22
HT-10-L-3-P-22 HCG-10-L-3-P-22
HT-10-L-4-P-22 HCG-10-L-4-P-22
HT-10-N-1-P-22 HCG-10-N-1-P-22
HT-10-N-2-P-22 HCG-10-N-2-P-22
HT-10-N-3-P-22 HCG-10-N-3-P-22
HT-10-N-4-P-22 HCG-10-N-4-P-22
HG-03-A-1-P-22 HCT-03-A-1-P-22
HG-03-A-2-P-22 HCT-03-A-2-P-22
HG-03-A-3-P-22 HCT-03-A-3-P-22
HG-03-A-4-P-22 HCT-03-A-4-P-22
HG-03-B-1-P-22 HCT-03-B-1-P-22
HG-03-B-2-P-22 HCT-03-B-2-P-22
HG-03-B-3-P-22 HCT-03-B-3-P-22
HG-03-B-4-P-22 HCT-03-B-4-P-22
HG-03-C-1-P-22 HCT-03-C-1-P-22
HG-03-C-2-P-22 HCT-03-C-2-P-22
HG-03-C-3-P-22 HCT-03-C-3-P-22
HG-03-C-4-P-22 HCT-03-C-4-P-22
HG-03-L-1-P-22 HCT-03-L-1-P-22
HG-03-L-2-P-22 HCT-03-L-2-P-22
HG-03-L-3-P-22 HCT-03-L-3-P-22
HG-03-L-4-P-22 HCT-03-L-4-P-22
HG-03-N-1-P-22 HCT-03-N-1-P-22
HG-03-N-2-P-22 HCT-03-N-2-P-22
HG-03-N-3-P-22 HCT-03-N-3-P-22
HG-03-N-4-P-22 HCT-03-N-4-P-22
HG-06-A-1-P-22 HCT-06-A-1-P-22
HG-06-A-2-P-22 HCT-06-A-2-P-22
HG-06-A-3-P-22 HCT-06-A-3-P-22
HG-06-A-4-P-22 HCT-06-A-4-P-22
HG-06-B-1-P-22 HCT-06-B-1-P-22
HG-06-B-2-P-22 HCT-06-B-2-P-22
HG-06-B-3-P-22 HCT-06-B-3-P-22
HG-06-B-4-P-22 HCT-06-B-4-P-22
HG-06-C-1-P-22 HCT-06-C-1-P-22
HG-06-C-2-P-22 HCT-06-C-2-P-22
HG-06-C-3-P-22 HCT-06-C-3-P-22
HG-06-C-4-P-22 HCT-06-C-4-P-22
HG-06-L-1-P-22 HCT-06-L-1-P-22
HG-06-L-2-P-22 HCT-06-L-2-P-22
HG-06-L-3-P-22 HCT-06-L-3-P-22
HG-06-L-4-P-22 HCT-06-L-4-P-22
HG-06-N-1-P-22 HCT-06-N-1-P-22
HG-06-N-2-P-22 HCT-06-N-2-P-22
HG-06-N-3-P-22 HCT-06-N-3-P-22
HG-06-N-4-P-22 HCT-06-N-4-P-22
HG-10-A-1-P-22 HCT-10-A-1-P-22
HG-10-A-2-P-22 HCT-10-A-2-P-22
HG-10-A-3-P-22 HCT-10-A-3-P-22
HG-10-A-4-P-22 HCT-10-A-4-P-22
HG-10-B-1-P-22 HCT-10-B-1-P-22
HG-10-B-2-P-22 HCT-10-B-2-P-22
HG-10-B-3-P-22 HCT-10-B-3-P-22
HG-10-B-4-P-22 HCT-10-B-4-P-22
HG-10-C-1-P-22 HCT-10-C-1-P-22
HG-10-C-2-P-22 HCT-10-C-2-P-22
HG-10-C-3-P-22 HCT-10-C-3-P-22
HG-10-C-4-P-22 HCT-10-C-4-P-22
HG-10-L-1-P-22 HCT-10-L-1-P-22
HG-10-L-2-P-22 HCT-10-L-2-P-22
HG-10-L-3-P-22 HCT-10-L-3-P-22
HG-10-L-4-P-22 HCT-10-L-4-P-22
HG-10-N-1-P-22 HCT-10-N-1-P-22
HG-10-N-2-P-22 HCT-10-N-2-P-22
HG-10-N-3-P-22 HCT-10-N-3-P-22
HG-10-N-4-P-22 HCT-10-N-4-P-22
