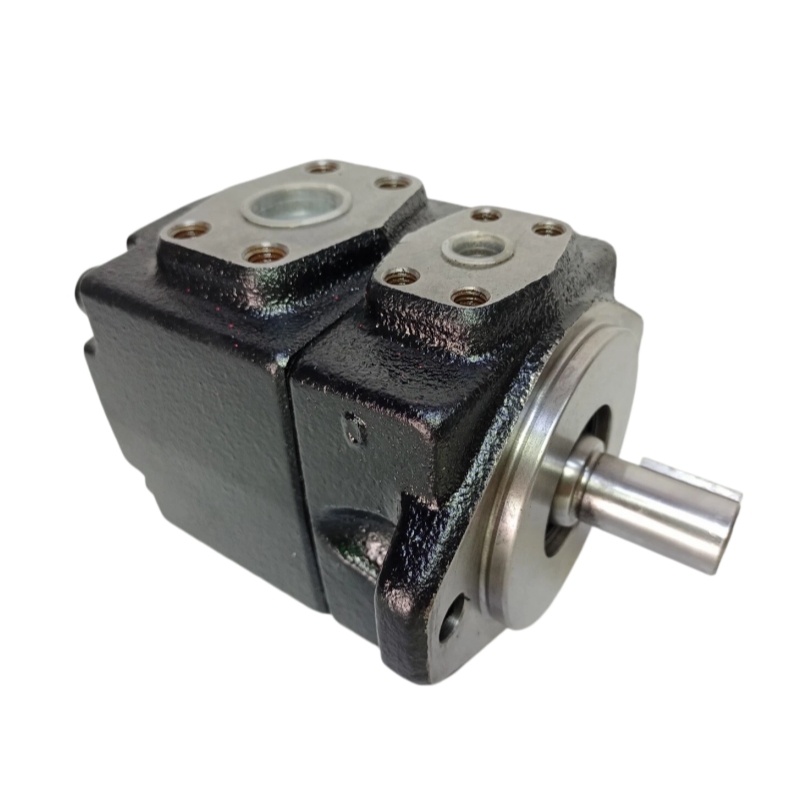

Yuken PV2R1-14 Vane Pump

Yuken PV2R1-14 Vane Pump

Description:

The Yuken PV2R1-14 Vane Pump is a high-performance, fixed displacement hydraulic pump designed for stable pressure output, low noise operation, and long service life. It is widely used in industrial hydraulic systems requiring consistent flow and high efficiency. With its compact structure and reliable vane design, this pump ensures smooth operation even under demanding working conditions.

share:

Yuken PV2R1-14 Vane Pump

Parameter Specification
Model PV2R1-14
Pump Type Single Vane Pump
Displacement 14 cm³/rev
Rated Pressure 16 MPa
Maximum Pressure 21 MPa
Speed Range 600 – 1800 rpm
Rotation Direction Clockwise (viewed from shaft end)
Mounting Type Flange Mount
Port Type Standard BSP / SAE
Working Fluid Mineral Hydraulic Oil
Viscosity Range 20 – 200 mm²/s
Temperature Range -10°C to +60°C
Noise Level Low noise design
Application Industrial machinery, injection molding, machine tools
