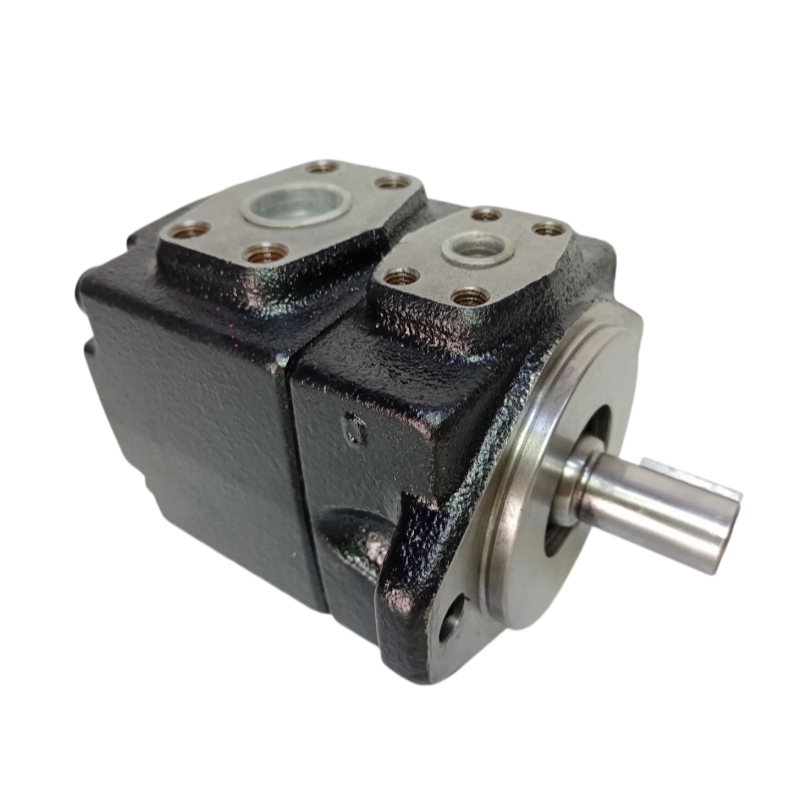

Yuken PV2R1-14 Vane Pump
Description:
share:
Yuken PV2R1-14 Vane Pump
| Parameter | Specification |
|---|---|
| Model | PV2R1-14 |
| Pump Type | Single Vane Pump |
| Displacement | 14.2 cm³/rev |
| Max Operating Pressure | 16 MPa (160 bar) |
| Peak Pressure | 21 MPa (210 bar) |
| Speed Range | 600 – 1800 rpm |
| Max Speed | 1800 rpm |
| Rotation Direction | Right-hand (clockwise) |
| Mounting Type | Flange Mount |
| Port Connection | Standard BSP / SAE |
| Fluid Type | Mineral Hydraulic Oil |
| Viscosity Range | 20–200 mm²/s |
| Operating Temperature | -15°C to 60°C |
| Noise Level | Low Noise Design |
| Efficiency | High Volumetric Efficiency |
| Application | Industrial Hydraulic Systems |
