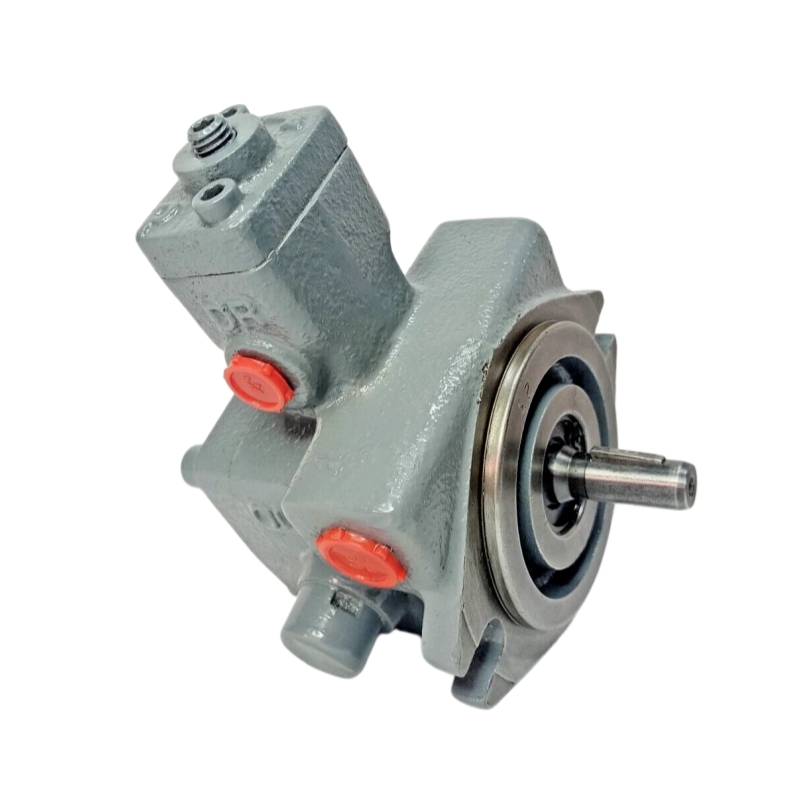

Yuken VR-SF-20 C-10 Vane Variable Pump

Yuken VR-SF-20 C-10 Vane Variable Pump

Description:

The Yuken VR-SF-20 C-10 Vane Variable Pump is a high-performance hydraulic pump designed for stable pressure control and energy-efficient operation. With its variable displacement mechanism, this pump automatically adjusts output flow according to system demand, reducing power loss and improving overall system efficiency. It is widely used in industrial machinery, injection molding machines, and machine tools requiring precise hydraulic control.

share:

Yuken VR-SF-20 C-10 Vane Variable Pump

Parameter Specification
Model VR-SF-20 C-10
Pump Type Variable Displacement Vane Pump
Displacement Range Approx. 20 cm³/rev
Maximum Operating Pressure 16 MPa (2320 psi)
Maximum Speed 1800 rpm
Minimum Speed 600 rpm
Flow Rate Up to 36 L/min
Pressure Control Type Pressure Compensated
Mounting Type Flange Mount
Rotation Direction Clockwise
Hydraulic Fluid Mineral Oil
Viscosity Range 20–150 mm²/s
Operating Temperature -10°C to +60°C
Noise Level Low Noise Design
Application Industrial Hydraulic Systems
