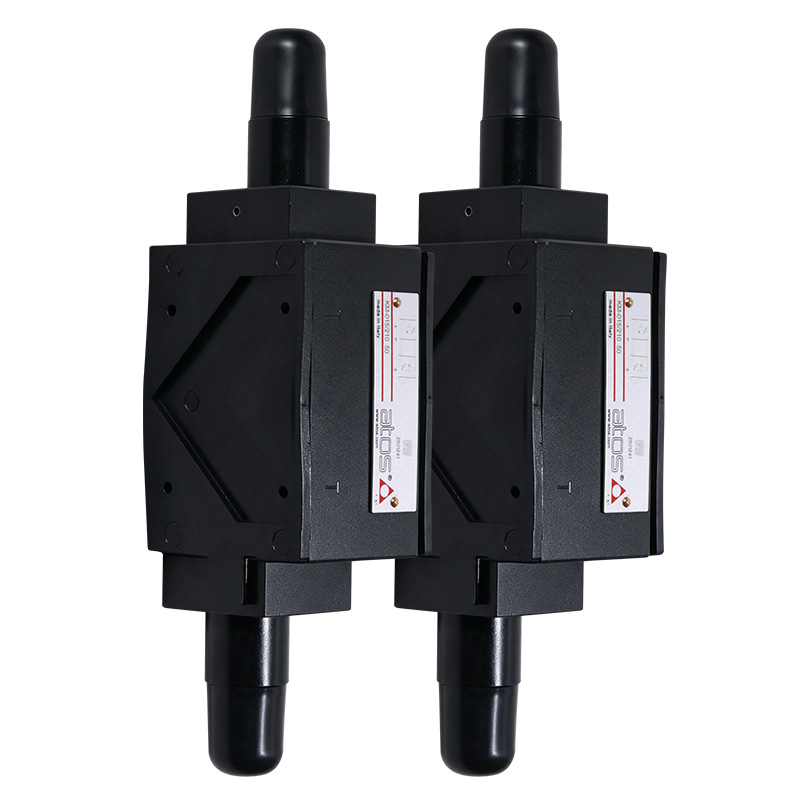

Atos KM-015-210 Pressure Relief Valve
Description:
The Atos KM-015-210 Pressure Relief Valve is a pilot-operated modular pressure relief valve designed for ISO 4401 NG10 (CETOP 5) hydraulic systems. Featuring a balanced poppet design, it provides accurate pressure regulation, fast response, and reliable overpressure protection. With a maximum flow capacity of 120 L/min and an adjustable pressure range of 5–210 bar, the KM-015-210 is widely used in industrial hydraulic systems requiring stable and efficient pressure control. Its modular sandwich design simplifies installation while reducing piping requirements, making it ideal for machine tools, hydraulic power units, steel production equipment, plastic machinery, and other demanding applications.
share:
Atos KM-015-210 Pressure Relief Valve
| Parameter | Specification |
|---|---|
| Product Name | Atos KM-015-210 Pressure Relief Valve |
| Manufacturer | Atos |
| Valve Type | Modular Pilot-Operated Pressure Relief Valve |
| Model | KM-015-210 |
| Hydraulic Configuration | Double relief on ports A & B with cross-discharge (015 configuration) |
| Mounting Type | ISO 4401 / CETOP 5 (NG10) Modular Sandwich Mounting |
| Nominal Size | Size 10 (NG10 / CETOP 5) |
| Pressure Adjustment Range | 5–210 bar |
| Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 120 L/min |
| Valve Design | Two-stage balanced poppet |
| Pressure Adjustment | Screw adjustment with lock nut (optional handwheel available) |
| Fluid | Mineral hydraulic oil or equivalent hydraulic fluids |
| Recommended Viscosity | 15–100 mm²/s |
| Ambient Temperature | -20°C to +70°C (depending on seal material) |
| Seal Material | Standard NBR (FKM optional) |
| Installation Position | Any position |
| Application | Hydraulic power units, industrial machinery, presses, injection molding machines, machine tools, steel mills, mobile equipment |
| Features | Stable pressure control, compact modular design, low pressure override, high reliability, long service life |
