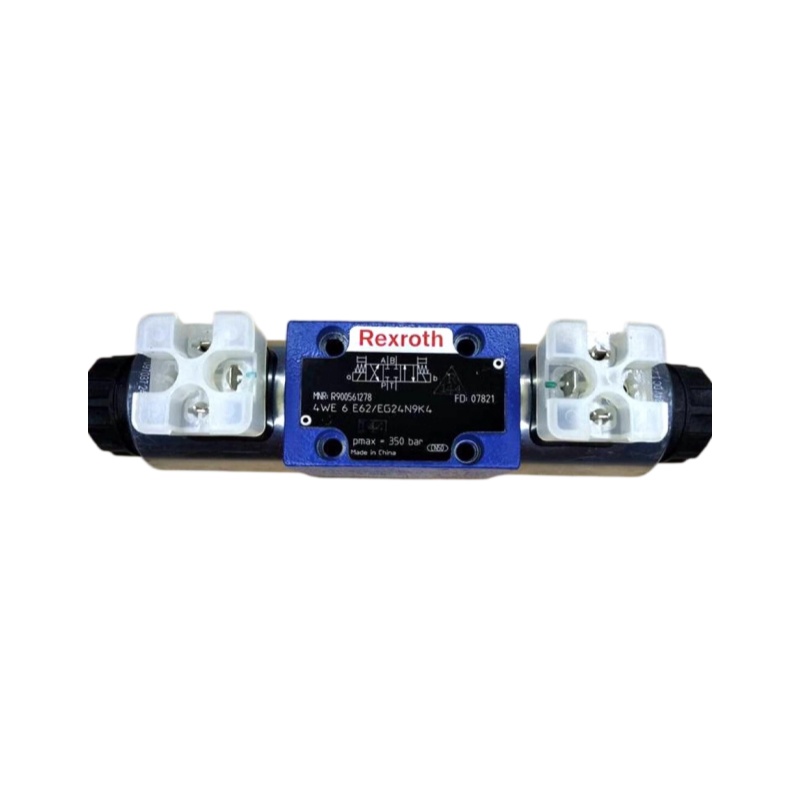

Bosch Rexroth 4WE6E6X EG24N9K4
Description:
The 4WE6E6X EG24N9K4 is a Bosch Rexroth direct operated solenoid directional spool valve designed to control hydraulic oil flow in industrial hydraulic systems. It features size 6 mounting, a 24 V DC solenoid, and an E type spool configuration. The valve supports reliable switching of hydraulic flow direction for machinery and industrial equipment.
share:
Bosch Rexroth 4WE6E6X EG24N9K4
|
Parameter |
Specification |
|---|---|
| Brand | Bosch Rexroth |
| Model | 4WE6E6X EG24N9K4 |
| Product Type | Directional Spool Valve |
| Valve Design | Direct Operated |
| Actuation | Solenoid Actuated |
| Nominal Size | Size 6 |
| Spool Symbol | E |
| Number of Ports | 4 |
| Switching Positions | 3 |
| Supply Voltage | 24 V DC |
| Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 80 L per minute |
| Mounting Type | Subplate Mounting |
| Connection Standard | ISO 4401 03 02 0 05 |
| Electrical Connector | Three Pin Connector with Protective Earth |
| Electrical Connection Standard | EN 175301 803 |
| Seal Material | NBR |
| Compatible Hydraulic Fluids | HL HLP HLPD HVLP HVLPD and HFC |
| Approximate Weight | 2 kg |
| Product Function |
Hydraulic Flow Direction Control |
