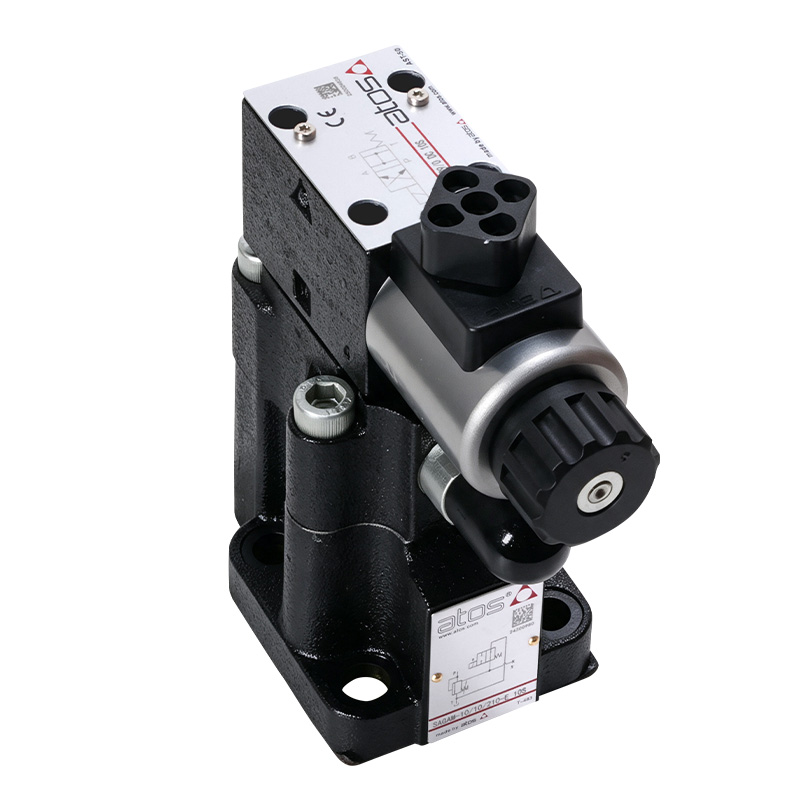

Atos SAGAM Two Stage Pressure Relief Valves
Description:
The Atos SAGAM Two Stage Pressure Relief Valve is a pilot-operated hydraulic pressure control valve designed to maintain stable system pressure while protecting hydraulic equipment from overload conditions. Its two-stage design provides excellent pressure stability, accurate adjustment, and smooth operation under high-flow conditions. Widely used in industrial hydraulic power units, machine tools, steel mills, and automation systems, the SAGAM series offers reliable performance, long service life, and easy maintenance.
share:
Atos SAGAM Two Stage Pressure Relief Valves
| Item | Specification |
|---|---|
| Product Name | Atos SAGAM Two Stage Pressure Relief Valve |
| Brand | Atos |
| Series | SAGAM |
| Valve Type | Pilot Operated Two Stage Pressure Relief Valve |
| Function | Limits maximum system pressure and protects hydraulic circuits from overload |
| Mounting Type | Subplate / Manifold Mount (depending on model) |
| Operation | Pilot operated, pressure adjustable |
| Pressure Adjustment | Screw adjustment with lock nut (varies by model) |
| Pressure Range | Up to 350 bar (depending on model) |
| Maximum Flow Rate | Up to 300 L/min (model dependent) |
| Hydraulic Fluid | Mineral oil (HL, HLP), synthetic fluids compatible with seals |
| Fluid Temperature | -20°C to +80°C |
| Viscosity Range | 10–800 mm²/s |
| Recommended Viscosity | 15–100 mm²/s |
| Filtration | ISO 4406 Class 20/18/15 or cleaner |
| Installation Position | Optional |
| Seal Material | NBR (standard), FKM available |
| Applications | Industrial hydraulic systems, presses, machine tools, steel plants, injection molding machines, power units, marine equipment |
