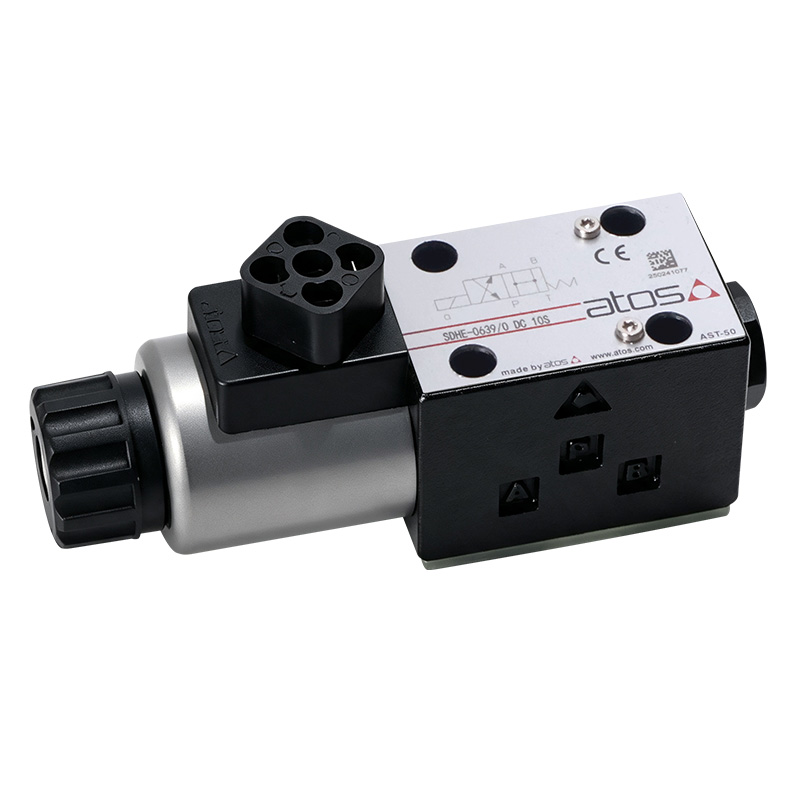

Atos SDHE-0631 Directional Control Safety Solenoid Valve
Description:
The Atos SDHE-0631 Directional Control Safety Solenoid Valve is a high-performance direct-operated hydraulic valve designed to precisely control the direction of hydraulic fluid in industrial systems. Built according to ISO 4401 Size 06 standards, it delivers reliable switching performance with operating pressures up to 350 bar and flow rates up to 80 L/min. Featuring a compact design, fast response, interchangeable coils, and optional safety position monitoring, the SDHE-0631 is widely used in manufacturing equipment, hydraulic power units, machine tools, injection molding machines, and heavy industrial automation.
share:
Atos SDHE-0631 Directional Control Safety Solenoid Valve
| Item | Specification |
|---|---|
| Product Name | Atos SDHE-0631 Directional Control Safety Solenoid Valve |
| Brand | Atos |
| Model | SDHE-0631 |
| Valve Type | Direct-acting solenoid-operated directional control valve with safety position monitoring |
| Valve Size | ISO 4401 Size 06 (NG6 / CETOP 3) |
| Spool Configuration | 4/2-way, Single Solenoid |
| Mounting Standard | ISO 4401-03 / CETOP 3 |
| Maximum Operating Pressure | Up to 350 bar (5075 psi) |
| Maximum Flow Rate | Up to 80 L/min |
| Actuation | Wet-type threaded solenoid |
| Voltage Options | 12V DC, 24V DC, 110V AC, 230V AC (depending on model code) |
| Position Monitoring | Inductive safety position switch (FV version available) |
| Manual Override | Integrated manual override |
| Sealing Material | NBR (Standard), FKM optional |
| Hydraulic Fluid | Mineral hydraulic oil or compatible fluids |
| Ambient Temperature | -20°C to +70°C (depending on coil version) |
| Fluid Temperature | -20°C to +70°C |
| Protection Class | IP65 (with proper connector installed) |
| Installation Position | Any position (recommended horizontal) |
| Applications | Hydraulic power units, CNC machines, injection molding machines, presses, industrial automation, steel plants, mobile machinery |
| Features | Fast response, compact design, reliable switching, interchangeable coils, safety position monitoring, long service life |
