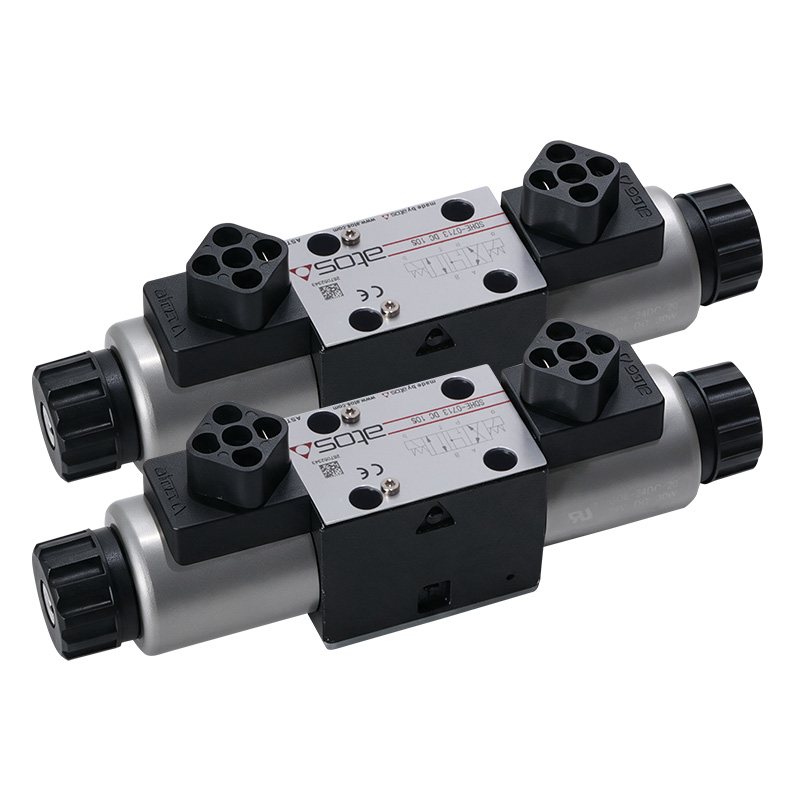

Atos SDHE-0713 Direct Operated Valves
Description:
The Atos SDHE-0713 Direct Operated Valve is a high-performance solenoid-operated directional control valve designed for precise hydraulic flow control in industrial hydraulic systems. Featuring a direct-operated spool design, it provides fast response, low pressure loss, and reliable switching performance. The SDHE-0713 complies with ISO 4401 Size 06 (CETOP 03/NG6) mounting standards, making it suitable for machine tools, hydraulic power units, injection molding machines, steel mills, marine equipment, and automation systems. The SDHE series offers interchangeable coils, integrated manual override, and durable construction for long service life in demanding applications.
share:
Atos SDHE-0713 Direct Operated Valves
| Item | Specification |
|---|---|
| Product Name | Atos SDHE-0713 Direct Operated Valve |
| Manufacturer | Atos |
| Product Type | Solenoid Operated Directional Control Valve |
| Series | SDHE |
| Valve Type | Direct Operated Spool Valve |
| Mounting Standard | ISO 4401 Size 06 (CETOP 03 / NG6) |
| Operation | Solenoid Operated |
| Positions | 2-position or 3-position |
| Flow Capacity | Up to 80 L/min |
| Maximum Operating Pressure | 350 bar |
| Hydraulic Fluid | Mineral oil and compatible hydraulic fluids |
| Coil Voltage | 12V DC, 24V DC, 110V AC, 230V AC (depending on model) |
| Coil Protection | IP65 (Standard), Optional IP67 |
| Manual Override | Integrated |
| Installation Position | Any position |
| Seals | NBR (Standard), Optional FKM |
| Ambient Temperature | -20°C to +70°C |
| Fluid Temperature | -20°C to +60°C |
| Response | Fast switching, low pressure drop |
| Applications | Industrial machinery, hydraulic power units, presses, automation, marine, steel plants, construction equipment |
