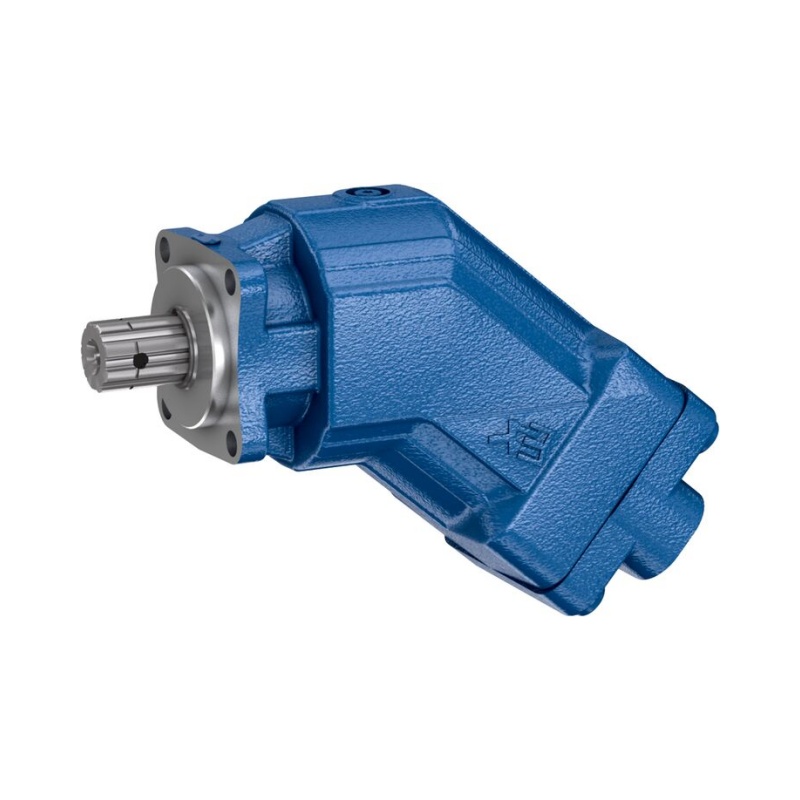

Bosch Rexroth A17FO032 Hydraulic Pump
Description:
The Bosch Rexroth A17FO032 is a fixed displacement axial piston hydraulic pump with a bent-axis design for open-circuit hydraulic systems. With a displacement of 32 cm³/rev, it delivers high volumetric efficiency, low noise, and excellent reliability. The A17FO series is widely used in commercial vehicles, mobile hydraulics, construction machinery, municipal equipment, and truck PTO applications. Its lightweight aluminum housing, high operating pressure, and compact design make it ideal for demanding hydraulic power transmission applications.
share:
Bosch Rexroth A17FO032 Hydraulic Pump
| Parameter | Specification |
|---|---|
| Product Model | Bosch Rexroth A17FO032 |
| Pump Type | Fixed Displacement Axial Piston Pump |
| Design | Bent-Axis |
| Hydraulic Circuit | Open Circuit |
| Displacement | 32 cm³/rev |
| Nominal Pressure | 350 bar |
| Maximum Pressure | 400 bar |
| Maximum Flow | 88 L/min (at nominal speed) |
| Maximum Speed | 2,750 rpm (nominal), up to 3,900 rpm (maximum) |
| Rotation | Clockwise or Counterclockwise |
| Housing Material | Cast Aluminum |
| Mounting | PTO / SAE Mounting Options |
| Shaft Type | Splined / Keyed (varies by configuration) |
| Port Type | Standard ISO/DIN Ports |
| Drain Line | Not Required |
| Features | High efficiency, low noise, lightweight, long service life, excellent suction characteristics |
| Typical Applications | Dump trucks, cranes, municipal vehicles, tank trucks, mobile hydraulic equipment, commercial vehicles |
