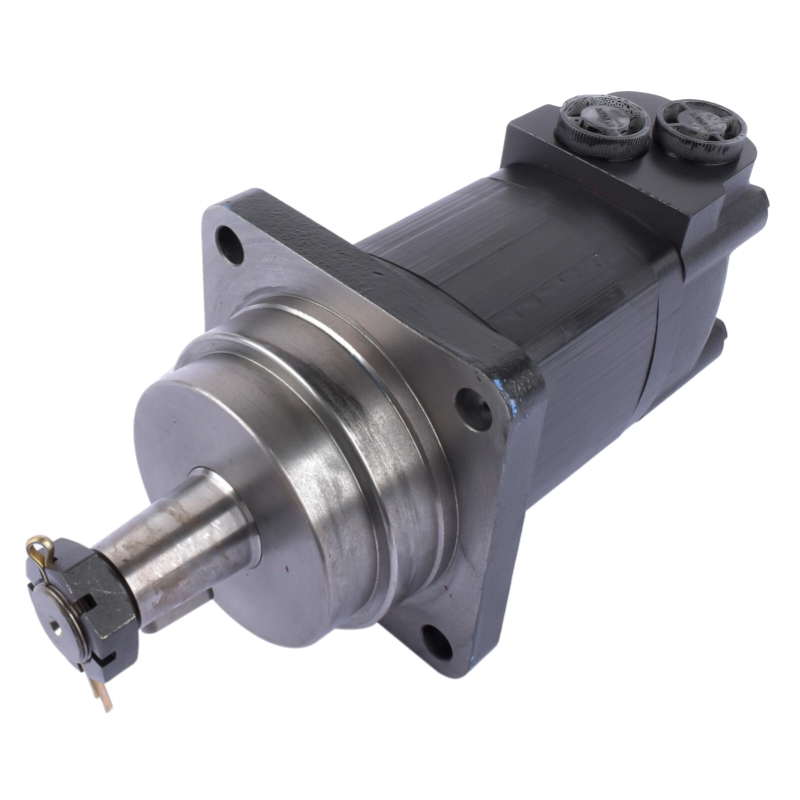

CHAR-LYNN 2000 Series Hydraulic Motor

CHAR-LYNN 2000 Series Hydraulic Motor

Description:

The CHAR-LYNN 2000 Series Hydraulic Motor is a high-performance orbital motor designed for demanding industrial and mobile applications. Known for its durability, smooth operation, and high torque output at low speeds, this motor is widely used in construction machinery, agricultural equipment, and material handling systems. Its compact structure and advanced sealing technology ensure long service life and reliable performance under harsh working conditions.

share:

CHAR-LYNN 2000 Series Hydraulic Motor

Parameter Specification
Motor Type Orbital Hydraulic Motor
Series 2000 Series
Displacement Range 80 – 500 cc/rev
Maximum Speed Up to 600 RPM
Maximum Torque Up to 800 Nm
Continuous Pressure 140 – 175 bar
Peak Pressure Up to 210 bar
Flow Range 20 – 75 L/min
Shaft Type Straight / Splined / Tapered
Mounting Type Flange / Wheel Mount
Port Type BSP / NPT / SAE
Efficiency High volumetric & mechanical efficiency
Sealing System Advanced leak-proof sealing
Application Agriculture, Construction, Industry
